Triangle 6412 4530 Air Lift Spring Double Convoluted Rubber Air
Suspension
Cross Reference
Triangle 6412
Triangle 4530
Goodyear 2B14-383
Goodyear 2B14 383
Goodyear 2B14383
Goodyear 578923356
Firestone W01-358-7557
Firestone W01 358 7557
Firestone W013587557
Firestone WO1-358-7557
Firestone WO1 358 7557
Firestone WO13587557
Firestone w01-358-7557
Firestone w01 358 7557
Firestone w01 358 7557
Firestone w013587557
Contitech FD 530-35 530
Contitech FD 530 35 530
Contitech FD530-35 530
Contitech FD530 35 530
Reyco 19983-01 (21AR,74AR)
Watson&Chalin AS-0089
Watson&Chalin AS 0089
Histeer 10316
Twthill 1998301
Specifications and Detailed Technical Parameters: 2B7557
Nut/blind nut
Top plate screw (nut) teeth: M18×1.5, M12×1.75
Screw (nut) teeth of the bottom cover plate: 2×M12×1.75
Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPT
The air hole/air inlet is combined with the screw nut
Cover plate
Top plate diameter: 289 mm
Bottom cover diameter: 289mm
The screw center distance of the bottom: 158mm
Bell rubber bellows
Rubber Bellow Diameter: 353mm
Stroke: 104mm to 391mm
Bumper block/bumper block
With bumper block
Belt loop/Belt loop
With one piece of belt loop
Min. pressure: 0 bar
Return force to min.height: ≤400N
Overall weight with clamped plates: 7.7kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 285mm, minimum 265mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 18.7 | 25.1 | 31.6 | 38.2 | 44.6 | 51.2 | 23.5 |
| Spring rate [N/cm] | 1770 | 2250 | 2700 | 3180 | 3640 | 4100 |
| Natural frequency [Hz] | 1.5 | 1.5 | 1.5 | 1.4 | 1.4 | 1.4 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H[mm] | 320 | 14.9 | 20.4 | 25.9 | 32.0 | 37.6 | 43.7 | 26.0 |
| 280 | 18.5 | 24.5 | 31.0 | 38.1 | 45.0 | 51.7 | 23.2 |
| 240 | 21.1 | 28.0 | 35.5 | 43.3 | 50.3 | 57.9 | 20.5 |
| 200 | 23.1 | 30.7 | 38.5 | 47.1 | 54.8 | 62.8 | 17.5 |
| 160 | 24.8 | 33.1 | 41.3 | 50.4 | 58.4 | 67.2 | 14.1 |
| 120 | 26.2 | 34.8 | 43.4 | 52.9 | 61.5 | 70.6 | 10.8 |
The reasonable installation of the air spring airbag can prolong
its service life, and the unreasonable operation of the geometric
principle will greatly reduce its service life. In the case of
long-term pressure, only a small adjustment of the operating
geometry can increase the service life by 4-10 times. However, in
actual situations, there may be less pressure for a long time, and
the lifespan will not be so greatly extended, but the fact that the
lifespan can be extended does exist.
First, avoid centerline deviation. Bladder airbags do not have a
membrane airbag for centerline deviation. If you have any
questions, please contact Goodyear.
Second, the pressure should be appropriate. When an air spring air
bag is subjected to a small pressure, the inner material is folded
and contacted, so when the air bag is subjected to a large
pressure, the air spring air bag will be greatly worn, which will
cause internal wear and reduce life.

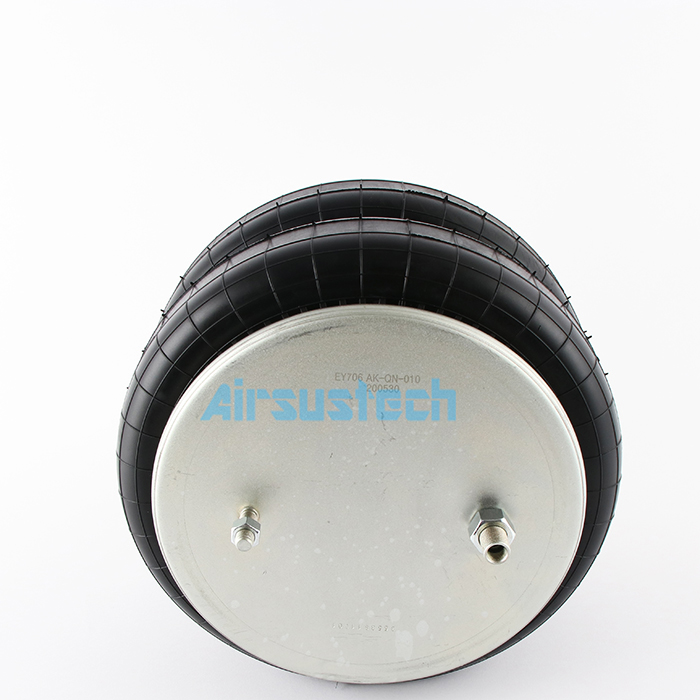

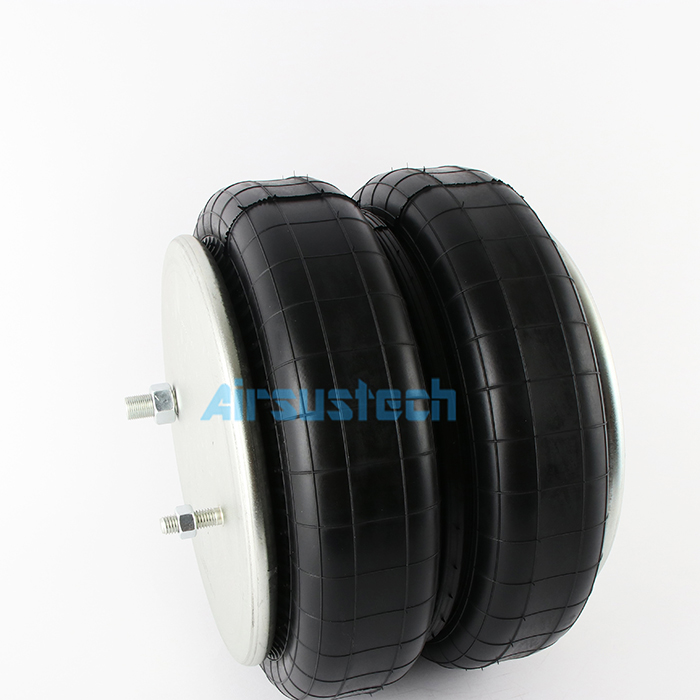

The related picture of 2B7557
