Bosch 822419004 Industrial Air Springs One Convoluted Rubber Shocks
OEM NO.
Bosch 822419004
Dunlop(FR) 9''1/4×1 S09 10 1
Dunlop(FR) 9''1/4×1S09 10 1
Dunlop(FR) 9''1/4×1S0910 1
Dunlop(FR) 9''1/4×1S09101
Dunlop(FR) 9''1/4×1SO9101
Dunlop(FR) 9''1/4×1 SO9101
Phoenix SP 1B 12
Phoenix SP1B 12
Phoenix SP1B12
Phoenix SP 1 B 12
Phoenix SP1 B 12
Firestone W01-M58-6374
Firestone W01M586374
Firestone W01 M58 6374
Firestone WO1M586374
Firestone WO1-M58-6374
Firestone WO1 M58 6374
Firestone w01M586374
Firestone w01 M58 6374
Firestone w01-M58-6374
Contitech FS 200-10
Contitech FS200-10
Contitech FS 200 10
Contitech FS200 10
Contitech FS 20010
Contitech FS20010
Festo EB-250-85
Festo EB 250 85
Festo EB250-85
Festo EB25085
Norgren PM/31091(81/4×1)
Specifications and Detailed Technical Parameters:AIRSUSTECH 1B6910
Nut/blind nut
Top plate screw (nut) teeth:2XM8×1.25
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate:2XM8×1.25
The screw center distance of the bottom cover plate: 89 mm
Air hole/air inlet/air fittings
Air hole/air inlet: G3/4
The screw center distance between the air hole and the nut: 38mm
Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm
Bell rubber bellows
Rubber bellows diameter: 222 mm
Height: 110mm
Bumper block/bumper block
No bumper block
Belt loop/Belt loop
With belt loop: No belt loop
Min. pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 2.3kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 110mm, minimum 90mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 5.5 | 7.5 | 9.6 | 11.9 | 14.0 | 15.7 | 2.7 |
| Spring rate [N/cm] | 1500 | 2050 | 2600 | 3150 | 3700 | 4250 |
| Natural frequency [Hz] | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H[mm] | 120 | 4.5 | 6.2 | 8.2 | 10.4 | 12.1 | 13.8 | 2.8 |
| 110 | 5.5 | 7.5 | 9.6 | 11.9 | 14.0 | 15.7 | 2.7 |
| 100 | 6.3 | 8.6 | 11.0 | 13.4 | 15.5 | 17.5 | 2.3 |
| 90 | 7.0 | 9.4 | 12.1 | 14.6 | 17.0 | 19.2 | 2.2 |
| 80 | 7.6 | 10.2 | 13.0 | 15.7 | 18.2 | 20.6 | 1.8 |
| 70 | 8.1 | 10.9 | 13.6 | 16.5 | 19.3 | 21.9 | 1.6 |
| 60 | 8.5 | 11.3 | 14.2 | 17.1 | 20.1 | 23.0 | 1.3 |
Packing Details
Net weight: 2.625kg
Gross weight: 8.255kg
Box weight: 0.38kg
Box size: 24*24*24cm
Packing quantity: 3
Characteristic
The low cost, wide range of specifications.
The long service life, no maintenance and lubrication, without the
need for internal control rod or piston.
No friction effect, soft medium.
The bending capacity, lateral load capacity, compact original
height.

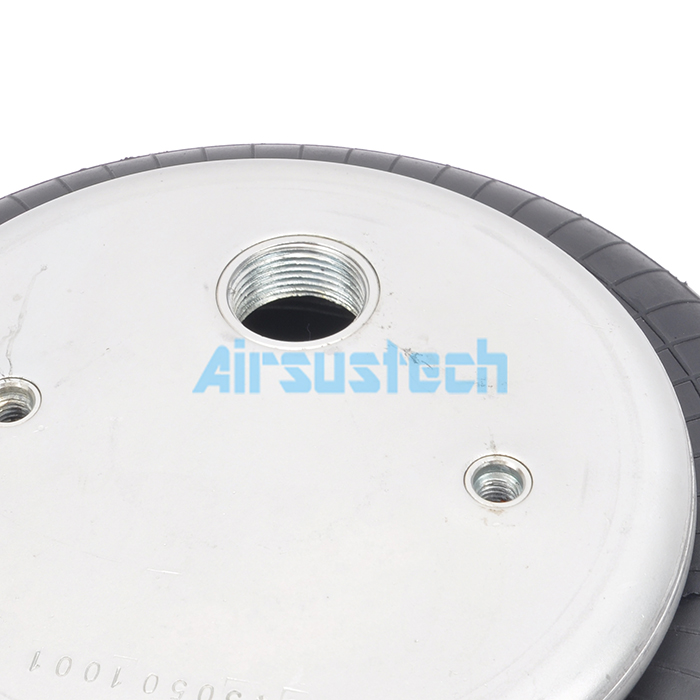

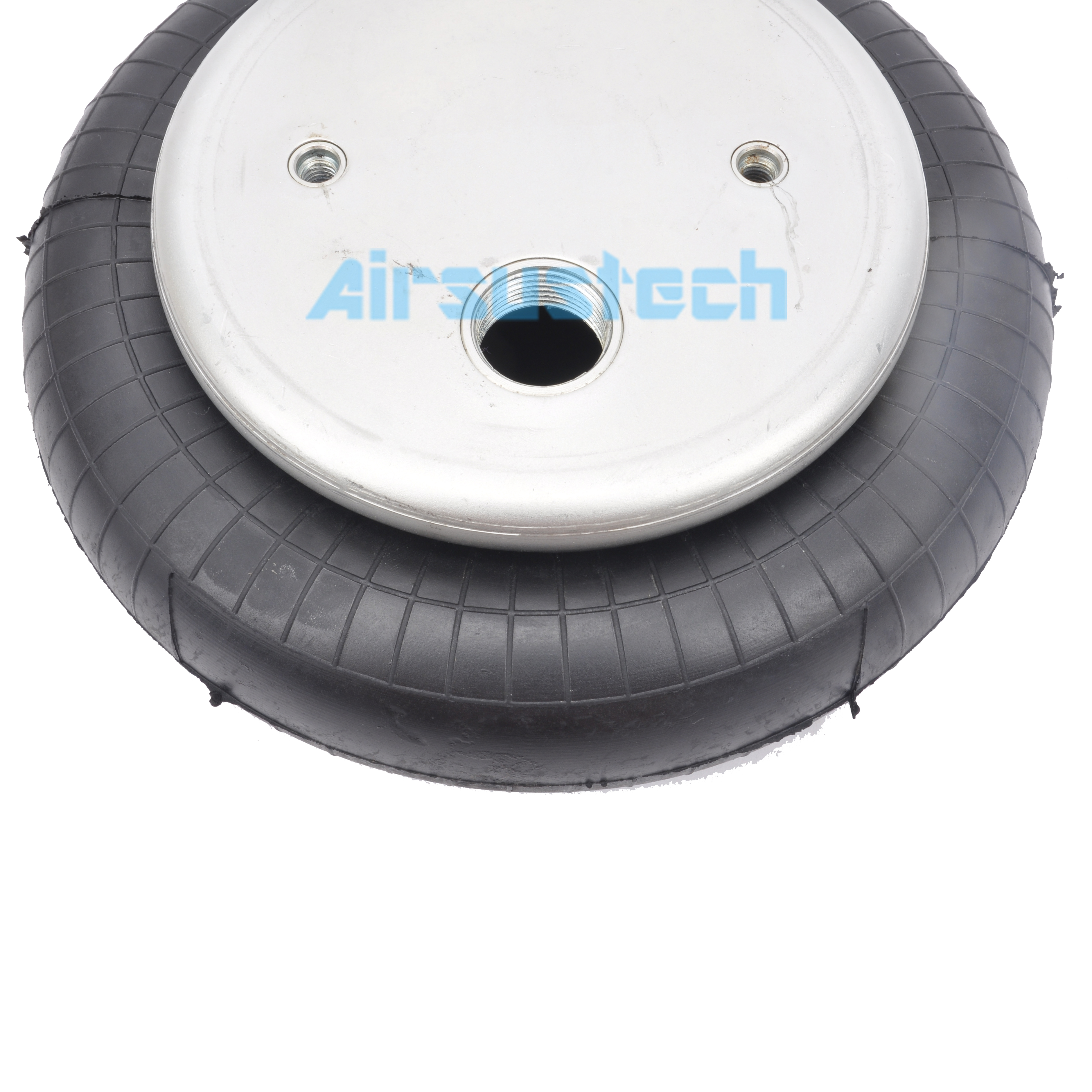

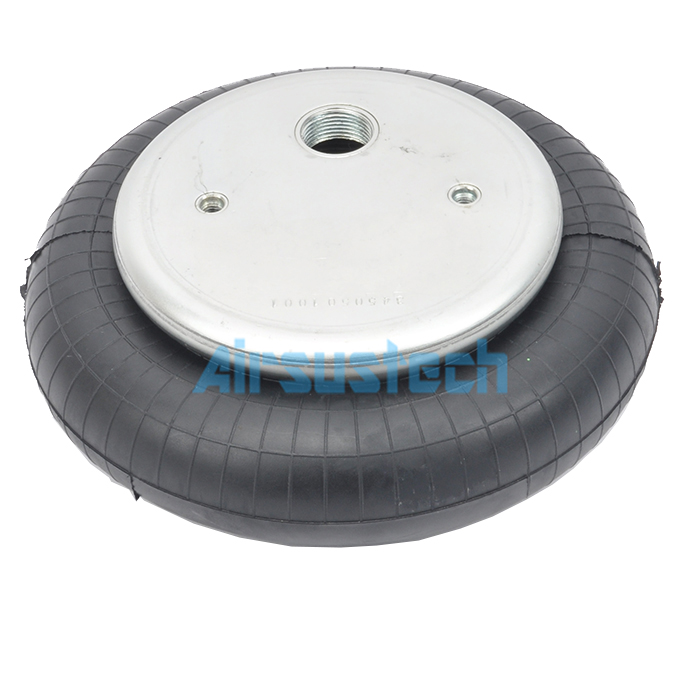

The photos of 1B6910
