    G3/4 One Convoluted Suspension Air Springs Air Connection Weforma WBE 300-E1

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B1209
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    G3/4 One Convoluted Suspension Air Springs Air Connection Weforma WBE 300-E1

    Air Connection Weforma WBE 300-E1 G3/4 One Convoluted Suspension Air Springs


    Specifications and Detailed Technical Parameters:AIRSUSTECH 1B1209


    Nut/blind nut

    Top plate screw (nut) teeth: 2XM8x1.25

    The screw center distance of the top cover plate: 70mm

    Screw (nut) teeth of the bottom cover plate: 2XM8x1.25

    The screw center distance of the bottom cover plate: 70 mm

    Air hole/air inlet/air fittings

    Air hole/air inlet: G3/4

    The air hole is in the middle of the screw center

    Cover plate

    Top plate diameter: 135 mm

    Diameter of the bottom cover: 135 mm

    Bell rubber bellows

    Maximum diameter of rubber bellows: 215 mm

    Natural diameter of rubber bellows: 90 mm

    Working stroke: minimum 50 mm to maximum 115 mm

    Maximum height: 115 mm

    Minimum height: 50 mm

    Bumper block/bumper block

    No bumper block

    Belt loop/Belt loop/Girdle hoop

    Without belt loop/girdle hoop


    Min. pressure: 0 bar

    Return force to min.height: ≤200N

    Overall weight with clamped plates: 2.0kg


    Vibration isolation - dynamic characteristic values

    Design Height H: recommended 110mm, minimum 90mm

    Pressure p[bar]345678Vol. V[l]
    Force(Load) [KN]3.95.36.88.39.610.91.8
    Spring rate [N/cm]131516201925223025352840
    Natural frequency [Hz]2.92.82.72.62.62.6

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]1203.14.35.66.98.09.21.9
    1103.95.36.88.39.610.91.8
    1004.56.17.99.711.012.41.7
    905.06.88.910.812.213.81.5
    805.57.49.711.613.315.01.3
    705.97.910.312.314.216.01.1
    606.38.210.713.015.017.00.9

    OEM NO.


    Weforma WBE 300-E1

    Weforma WBE 300 E1

    Weforma WBE300-E1

    Weforma WBE300 E1

    Weforma WBE300E1

    Norgren PM/31081(8×1)

    Norgren PM31081(8×1)

    Festo EB-215-80

    Festo EB 215 80

    Festo EB215 80

    Festo EB21580

    Bosch 8224 19003

    Bosch 822419003

    Cotitech FS 120-9

    Cotitech FS120-9

    Cotitech FS 120 9

    Cotitech FS120 9

    Dunlop(FR) 8''1S08101

    Dunlop(FR) 8''1 S08101

    Firestone W01-M58-6165

    Firestone W01M586165

    Firestone W01 M58 6165

    Firestone WO1M586165

    Firestone WO1-M58-6165

    Firestone WO1 M58 6165

    Airtech 140293

    Airtech 111003

    Airtech 1B-190FB

    Megatech 1S120-9 3/4 M8

    Megatech 1S120 9 3/4 M8

    Megatech 1S120 9 3/4M8


    Other WBE Single-Convolution Air Spring We Could Offer


    WBE 70-E1 G1/4

    WBE 100-E1 G1/8

    WBE 140-E1 G3/8

    WBE 150-E1 G1/4

    WBE 200-E1 G1/4

    WBE 210-E1 G1/2

    WBE 300-E2 G1/4

    WBE 310-E1 G3/4

    WBE 310-E2 G1/4

    WBE 320-E1 G3/4

    WBE 320-E2 G1/4

    WBE 400-E1 G3/4

    WBE 400-E2 G1/4

    WBE 410-E1 G1/4

    WBE 500-E1 G1

    WBE 500-E2 G1/4

    WBE 510-E1 G1/4

    WBE 530-E2 G3/4

    WBE 530-E1 G1/4

    WBE 540-E1 G1/4

    WBE 600-E1 G1

    WBE 600-E2 G1/4

    WBE 610-E2 G1/4

    WBE 700-E1 G1

    WBE 700-E2 G1/4

    WBE 730

    WBE 750

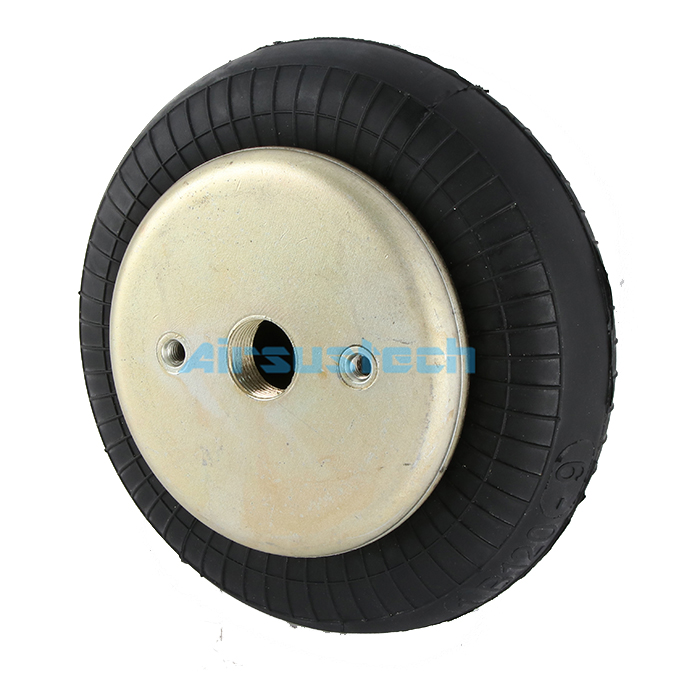

    The photos of 1B1209
