Airtech 140293 111003/1B-190FB One Convoluted Replacement 1B1209
AIRSUSTECH Industrial Air Springs Assembly
Specifications and Detailed Technical Parameters:AIRSUSTECH 1B1209
Nut/blind nut
Top plate screw (nut) teeth: 2XM8x1.25
The screw center distance of the top cover plate: 70mm
Screw (nut) teeth of the bottom cover plate: 2XM8x1.25
The screw center distance of the bottom cover plate: 70 mm
Air hole/air inlet/air fittings
Air hole/air inlet: G3/4
The air hole is in the middle of the screw center
Cover plate
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm
Bell rubber bellows
Maximum diameter of rubber bellows: 215 mm
Natural diameter of rubber bellows: 90 mm
Working stroke: minimum 50 mm to maximum 115 mm
Maximum height: 115 mm
Minimum height: 50 mm
Bumper block/bumper block
No bumper block
Belt loop/Belt loop/Girdle hoop
Without belt loop/girdle hoop
Min. pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 2.0kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 110mm, minimum 90mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 3.9 | 5.3 | 6.8 | 8.3 | 9.6 | 10.9 | 1.8 |
| Spring rate [N/cm] | 1315 | 1620 | 1925 | 2230 | 2535 | 2840 |
| Natural frequency [Hz] | 2.9 | 2.8 | 2.7 | 2.6 | 2.6 | 2.6 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H[mm] | 120 | 3.1 | 4.3 | 5.6 | 6.9 | 8.0 | 9.2 | 1.9 |
| 110 | 3.9 | 5.3 | 6.8 | 8.3 | 9.6 | 10.9 | 1.8 |
| 100 | 4.5 | 6.1 | 7.9 | 9.7 | 11.0 | 12.4 | 1.7 |
| 90 | 5.0 | 6.8 | 8.9 | 10.8 | 12.2 | 13.8 | 1.5 |
| 80 | 5.5 | 7.4 | 9.7 | 11.6 | 13.3 | 15.0 | 1.3 |
| 70 | 5.9 | 7.9 | 10.3 | 12.3 | 14.2 | 16.0 | 1.1 |
| 60 | 6.3 | 8.2 | 10.7 | 13.0 | 15.0 | 17.0 | 0.9 |
OEM NO.
Airtech 140293
Airtech 111003
Airtech 1B-190FB
Weforma WBE 300-E1
Weforma WBE 300 E1
Weforma WBE300-E1
Weforma WBE300 E1
Weforma WBE300E1
Norgren PM/31081(8×1)
Norgren PM31081(8×1)
Festo EB-215-80
Festo EB 215 80
Festo EB215 80
Festo EB21580
Bosch 8224 19003
Bosch 822419003
Cotitech FS 120-9
Cotitech FS120-9
Cotitech FS 120 9
Cotitech FS120 9
Dunlop(FR) 8''1S08101
Dunlop(FR) 8''1 S08101
Firestone W01-M58-6165
Firestone W01M586165
Firestone W01 M58 6165
Firestone WO1M586165
Firestone WO1-M58-6165
Firestone WO1 M58 6165
Megatech 1S120-9 3/4 M8
Megatech 1S120 9 3/4 M8
Megatech 1S120 9 3/4M8
Installation instructions
Return
The air spring is a single-action pneumatic cylinder.The return
stroke must be actuated by external forces, for instance a load, a
counter cylinder or a spring.
Installation space
The installation space is to be constructed such that the bellows
does not rub against the machine.
Down stops
Mechanical down stops prevent the spring from being damaged as a
result of overcompression.
Up stops
Mechanical up stops prevent the actuator from being overstressed or
bursting.
Force
The force depends directly on the stroke positions. At a constant
pressure, the force decreases as the stroke increases.

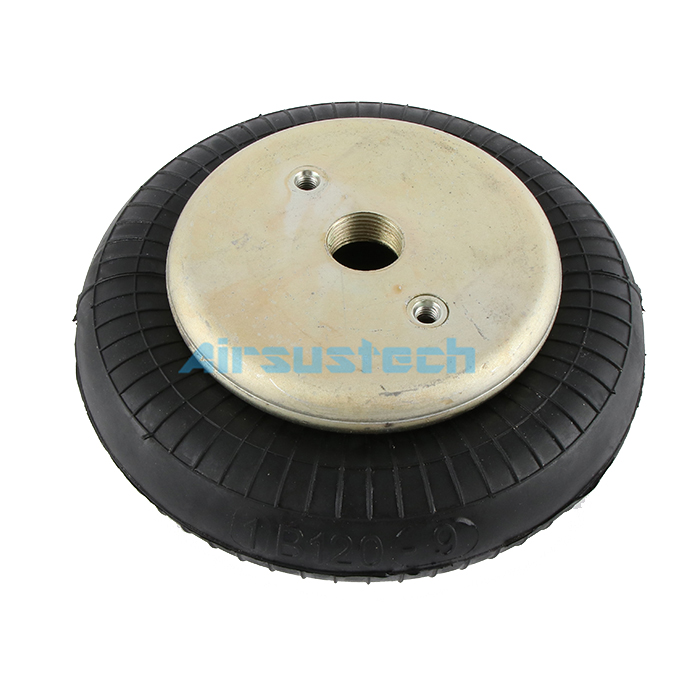

The photos of 1B1209
