    12''×3 G1/2 Air Spring Shocks Triple Convoluted Norgren M/31123 M31123

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : M/31123
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    12''×3 G1/2 Air Spring Shocks Triple Convoluted Norgren M/31123 M31123

    Norgren M/31123 (M31123) 12''×3 G1/2 Air Inlet Spring Shocks Triple Convoluted


    OEM Cross reference


    Norgen M/31123

    Firestone W01-R58-4062

    Firestone W01 R58 4062

    Firestone W01R5-4062

    Firestone W01R584062

    Contitech : FT412-323

    Contitech : FT412 323

    Goodyear : C2ECH

    Dunlop pneuride: 12X3

    EKER 42330003
    IVE-CO 42107595
    Intertruck-A 1700089105
    Intertruck-A 1780115003
    BlackTech 3C302200P03
    BlackTech 3C30F03
    BlackTech 3C302P03
    Fabio 3DC3002C
    Intertruck-S 8400108SX
    Lohr A06030606
    Contitech FT4123212M10
    BlackTech 3C302200P01
    Air Tech 115005
    Dayco DF12X3
    Meritor MLF7190 I
    Templin T600513
    KRAFTIG FT41232
    Winkler 14109800305
    Gigant 881204
    Dunlop SP1542
    Peters Man 8422861
    Goodyear 3B122452
    Dunlop SP2666NB
    DAF M002297
    SMB M002297
    Gigant M002297
    Contitech FT41232
    Contitech FT412321/2M10


    TypeOrder number
    Rubber only12×3
    With removable top plate and G1/2 air inletM31123

    Specifications and Detailed Technical Parameters: M/31123


    Nut/blind nut

    Top plate screw (nut) teeth: 4pcs X M10

    Bottom cover plate screw (nut) teeth: 4pcs X M10

    Air hole/air inlet/air fittings

    Air hole/air inlet: G1/2

    Rubber Bellows

    Top plate diameter (width): 260mm

    Diameter (width) of the bottom cover plate: 260mm

    Stroke of Rubber Bellows:100mm-430mm

    Bumper block/bumper block

    Without bumper block

    Belt loop/Girdle hoop/Girdel ring

    Two pieces of belt loop/girdle hoop/girdle ring


    Min. pressure: 0 bar

    Return force to min.height: ≤250N

    Overall weight with clamped plates: 6.9kg


    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]3509.813.216.720.524.328.417.2
    30012.316.520.825.329.934.715.3
    25014.419.324.229.434.539.912.9
    20016.422.027.733.539.445.610.0
    15018.825.131.437.844.250.77.2

    Other Norgren Air Spring Shocks We could provide


    ModelM/31061M/31081M/31082M/31101M/31102M/31103M/31121M/31122M/31141M/31142M/31143M/31162M/31163M/32212M/32262
    Cylinder Ø (inch)6''8''8''10''10''10''12''12''14 1/2''14 1/2''14 1/2''16''16''21''26''
    Port SizeG1/2G1/2G1/2G1/2G1/2G1/2G1/2G1/2G1/2G1/2G1/2G1/2G1/2
    Nominal Ø (inch) x convolutions6''×18''×18''×210''×110''×210''×312''×112''×214 1/2''×114 1/2''×214 1/2''×316''×216''×321''×226''×2
    Stroke[mm]5575175100225330100225100265380315430251400
    Installation height min[mm]5050755075100507550751007512084100
    Recommended max working height [mm]95115220135245350135245135290420350475284425
    Installation height max [mm]105130250150300430150300150340480390550335500
    Retracting force to rech min height140220350150150250200250200280330250100311400

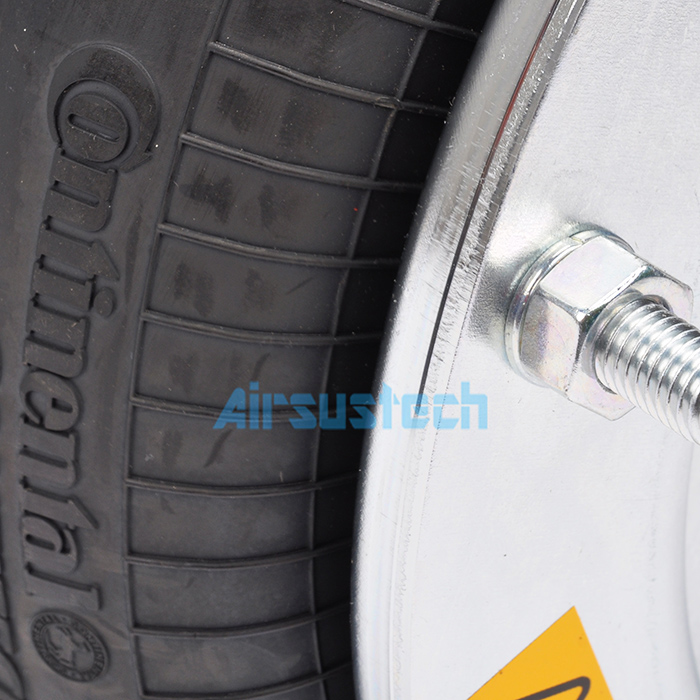

    The related picture of M/31123
