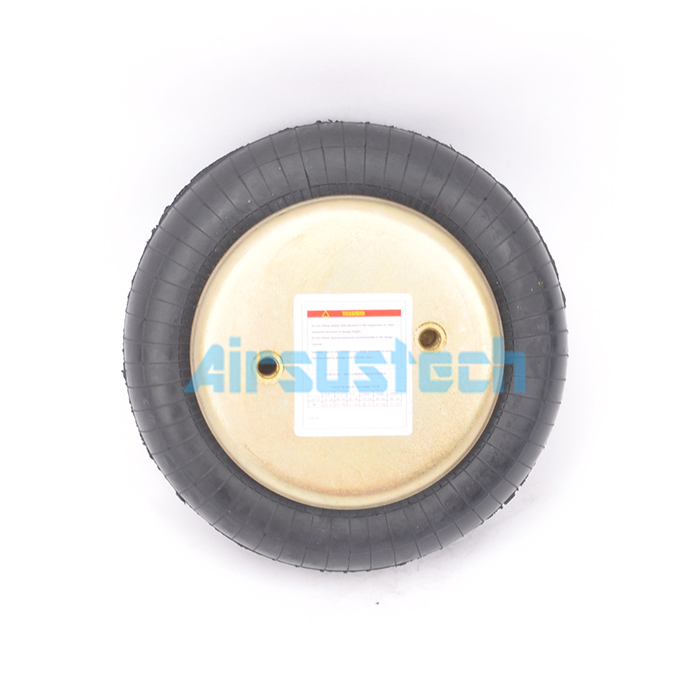

    Single Convoluted Air Spring Shocks Firestone WO13587564 Goodyear 1B8-550 Continental FS 120-10 CI 1/4 NPT CA

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B8×4
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Single Convoluted Air Spring Shocks Firestone WO13587564 Goodyear 1B8-550 Continental FS 120-10 CI 1/4 NPT CA

    Firestone WO13587564 Goodyear 1B8-550 Continental FS 120-10 CI 1/4 NPT CA Single Convoluted Air Spring Shocks


    Refer Number


    Contitech: FS120-10

    Contitech: FS 120-10

    Contitech: FS120 10

    Contitech: FS 120 10

    Contitech: FS12010

    Continental FS 120-10 CI 1/4 NPT

    Continental FS 120-10 CI 1/4 NPT CA

    Continental FS120-10CI1/4NPTCA

    Goodyear: 1B8-550

    Goodyear: 1B8 550

    Firestone: W01-358-7564

    Firestone: W01 358 7564

    Firestone: W013587564

    Firestone: WO1-358-7564

    Firestone: WO1 358 7564

    Firestone: WO13587564

    Firestone: w01-358-7564

    Firestone: w01 358 7564

    Firestone: w013587564



    The detailed Specifications and techical data: 1B8×4


    The Max. OD: 230mm

    Air hole/Air inlet/Air fittings: 1/4NPTF

    The air hole/air inlet/ air fittings is in the middle of the screw center

    Working Stroke: maximum 140mm to minimum 50mm

    Top/Bottom cover diameter: 135mm

    Top/Bottom screw(nut) teeth: 2×3/8-16UNC

    Screw center distance: 35mm


    Min. pressure: 0 bar

    Return force to min.height: ≤200N

    Overall weight with clamped plates: 2.0kg


    Vibration isolation - dynamic characteristic values

    Design Height H: recommended 110mm, minimum 90mm

    Pressure p[bar]345678Vol. V[l]
    Force(Load) [KN]3.95.36.88.39.610.91.8
    Spring rate [N/cm]131516201925223025352840
    Natural frequency [Hz]2.92.82.72.62.62.6

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]1203.14.35.66.98.09.21.9
    1103.95.36.88.39.610.91.8
    1004.56.17.99.711.012.41.7
    905.06.88.910.812.213.81.5
    805.57.49.711.613.315.01.3
    705.97.910.312.314.216.01.1
    606.38.210.713.015.017.00.9

    About rubber air spring


    The key component with shock absorption in the rubber shock absorber is rubber. It can be said that rubber has the effect of shock absorption, sound insulation and noise reduction. This is also because of the characteristics of rubber, the high elastic polymer raw material with reversible deformation, and the compression that will quickly bear the external force at room temperature and restore the original state in an instant.


    Rubber air springs: can be used in both vehicles and industrial equipment. It has better shock absorption and impact resistance than metal torsion springs. Its structure uses the cloth curtain layer as the compression layer, with an air-tight rubber layer inside and a maintenance rubber layer that is resistant to acid and alkali and anti-aging.


    The reated picture
