S-240-2 Yokohama Double Convoluted Rubber Air Spring High-speed Punch Air Cushion

Cross Reference

Yokohama S-240-2R

Yokohama S 240 2R

Yokohama S-240-2

Yokohama S 240 2

Yokohama S240-2

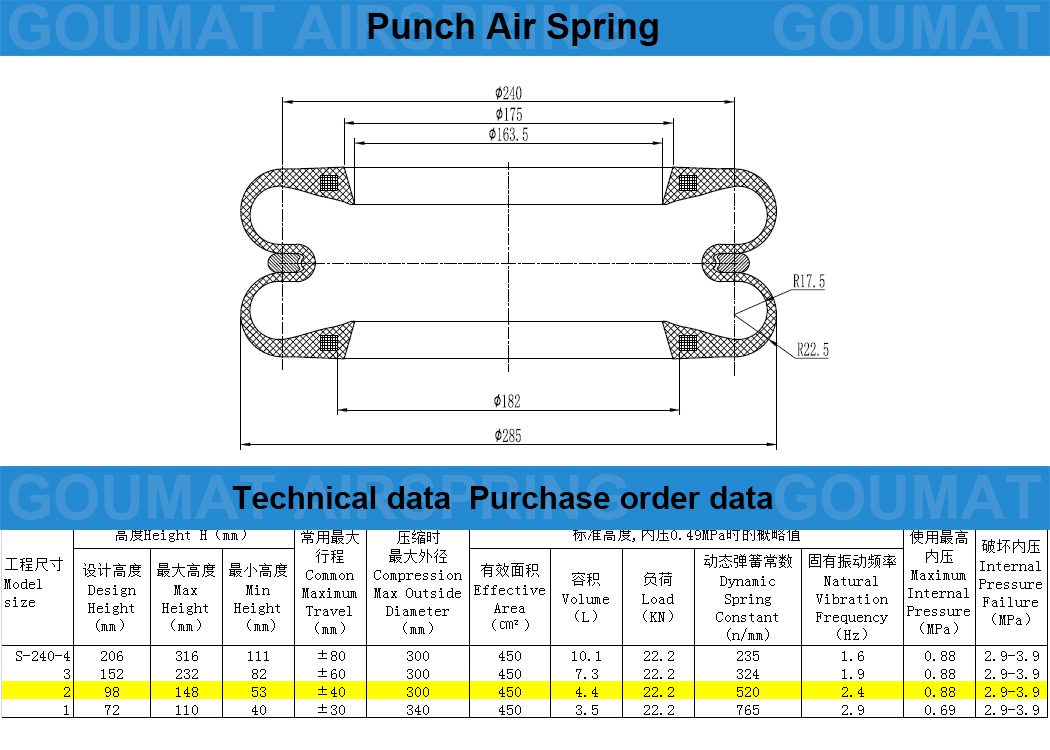

F-240-2 Specifications and Technical parameters

Other Types

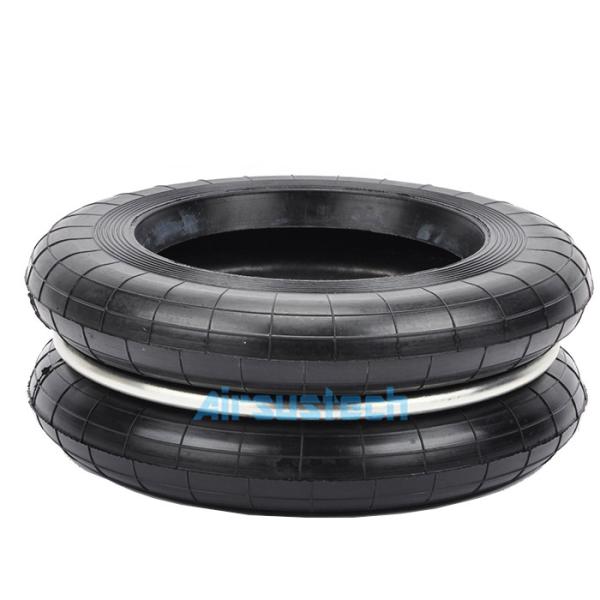

The related picture of F-240-2

How does the air spring work in high-speed punch

The air pressure die pad of the high-speed punch is composed of a base, an airbag buffer device and a fixed seat, wherein the airbag buffer device is arranged between the base and the fixed seat.
When the high-speed punch press air pressure die pad device is actually used, the base is installed under the workbench of the punch press, the air bag is inflated and lifted, and guided by the fixing screw of the cylinder and the copper sleeve, the shock-absorbing sheet is placed on the lower plane of the lower worktable, and the material of the shock-absorbing sheet is PVC , plays the role of shock absorption. After the punch die is installed, the rod on the die passes through the lower worktable and touches the guard plate. When the slider moves from top to bottom, the airbag is compressed by the action of the die rod, and the upper part of the airbag is compressed. With the descending, when the slider moves from bottom to top, the die rod goes out upward through the force of the air bag, thus completing the action of a stamping stroke.

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
