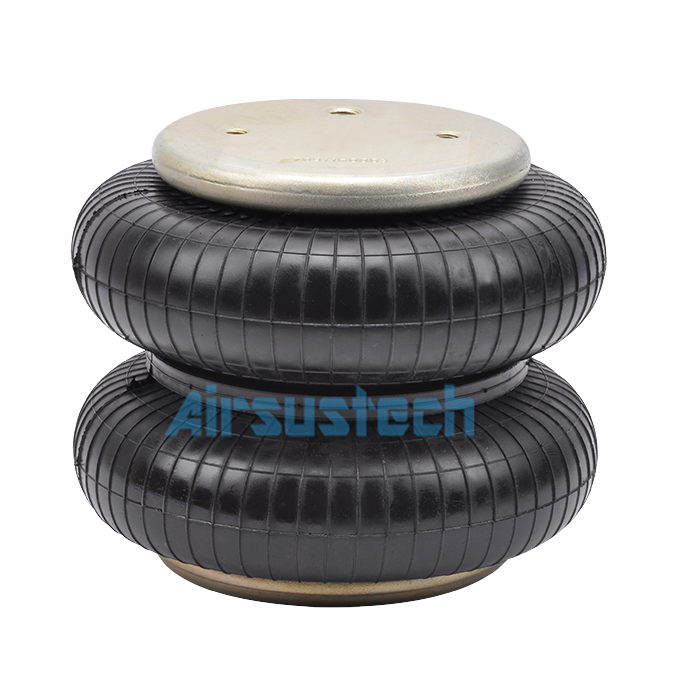

100% Tested Air Spring 2 Convoluted Rubber Shocks Ridewell 1003586910C Replacement

Basic product information

Product name: 2B6910

Usage: Industrial Equipment Shock Absorption

Net weight: 3.178kg

Gross weight: 6.736kg

Box weight: 0.38kg

Box size: 24*24*24cm

Packing quantity: 2

OEM Reference

Ridewell 1003586910C

Navistar 554783C1

Navistar 554783c1

Leland Sc2011

Leland SC2011

Dayton 3546910

Dina A812719

Dina AZ812719

Brake&Wheel M3501

Hendrickson S8768/458433

SAF Holland 57006910

Trailers De 133128

Tuthill 1371

Watson&Chalin AS-0001

Watson&Chalin AS-0156G

Cross Reference

Taurus KF218-6910

Taurus KF218 6910

Taurus KF2186910

Firestone W01-358-6910

Firestone W01 358 6910

Firestone W013586910

Firestone WO1-358-6910

Firestone WO1 358 6910

Firestone WO13586910

Contitech FD 200-19 320

Contitech FD 200 19 320

Contitech FD 200-19320

Goodyear 2B9-200;2B9 200

Goodyear 2B9-202; 2B9 202

Goodyear 2B9-216; 2B9 216

Goodyear 578423202

Triangle 6325

Triangle 4320

2B6910 Specifications and Tecnical Parameters

Blind Nut

Nut/blind nut Top plate screw (nut) teeth: 2 x 3/8-16UNC

Top plate screw center distance: 89 mm

Bottom cover plate screw (nut) teeth: 2 x 3/8-16UNC

Bottom plate screw center distance : 89 mm

Air hole/air inlet/air fitting air hole/air inlet

1/4NPTF

The distance between the air hole and the screw center: 44.5mm

Cover plate

Top plate diameter (width): 160 mm

Bottom cover diameter (width): 160 mm

Rubber Bellows

Rubber bellows natural diameter: 224 mm

Rubber bellows Max. diameter: 251mm

Height

Min. height: 75mm

Max. height: 260mm

Working Stroke: 185mm

Space required: 265mm

Bumper block/bumper block

Without bumper

Belt loop/Girdle hoop/Girdle ring

One piece of belt loop/girdle hoop/girdle ring
