    HF80/90-1 Rubber 1 Convoluted 90mm Design Height Air Ride Spring

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : HF80/90-1
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    HF80/90-1 Rubber 1 Convoluted 90mm Design Height Air Ride Spring

    HF80/90-1 Rubber 1 Convoluted 90mm Height Air Ride Spring


    HF80/90-1 Technical parameters


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth: /

    Top Cover Plate Screw (Nut): /

    Bottom Cover Plate Screw (Nut) Tooth: /

    Screw Center Distance of Bottom Cover Plate: /

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet: /

    Cover Plate

    Top Cover Plate Diameter: /

    Bottom Cover Plate Diameter: /

    Rubber Bellows

    Design diameter D0: 80mm

    Maximum outer diameter D(mm): 136mm

    End outside diameter φ0(mm):82mm

    Design height: 90mm

    Whole trip L(mm): 50-110mm

    0.4-0.7Mpa bearing capacity (Kg): 201-352

    Bumper block / Buffer block

    With Bumper Block Or Without Bumper Block

    Girdle Hoop / Girdle Ring

    Without Girdle Hoop


    The other types of HF air spring/air bellows we have


    Model Size

    Design diameter D0(mm)

    Maximum outer diameter

    D(mm)

    End outside diameter φ0(mm)

    Design height

    (mm)

    Whole trip L(mm)0.4-0.7Mpa bearing capacity (Kg)
    HF80/142-2801309214272-162201-352
    HF86/60-186116806036-75232-407
    HF88/110-18815810011080-130243-425
    HF95/70-195130657045-80287-496
    HF100/96-11001601129650-120314-550
    HF100/166-210016011217674-200314-550
    HF100/138-310016011225698-275314-550
    HF104/66-1104150886634-85340-594
    HF115/77-11151451187755-90146-727
    HF120/132-212016813613272-152452-792
    HF125/112-112521515011240-132491-859
    HF150/140-215020013214076-162707-1237
    HF164/90-11642201329047-120845-1478
    HF170/120-117026015012055-145908-1589
    HF174/126-117427017012650-160951-1165
    HF180/156-1180300181156120-1701018-1782
    HF180/152-218023514515267-1821018-1782
    HF190/170-218825012817084-1941110-1943
    HF190/248-3188250128248116-2821110-1943
    HF208/90-12082681789050-1301359-2378
    HF216/214-221629621621490-2601465-2565
    HF230/116-123028517211675-1301662-2908
    HF230/120-1230

    320

    18212450-1401662-2908
    HF230/140-223028020014070-1701662-2908
    HF240/100-124030518010050-1401810-3167
    HF240/165-224030121016575-1901810-3167
    HF250/255-2250350260255100-3051964-3436
    HF264/90-12643242379050-1302189-3832
    HF290/105-129036022010560-1252642-4624
    HF300/255-2300400310255100-3052828-4948
    HF310/160-1310430300160120-1703019-5283
    HF320/203-232040026120390-2403217-5629
    HF334/206-233441033020690-2503505-6133

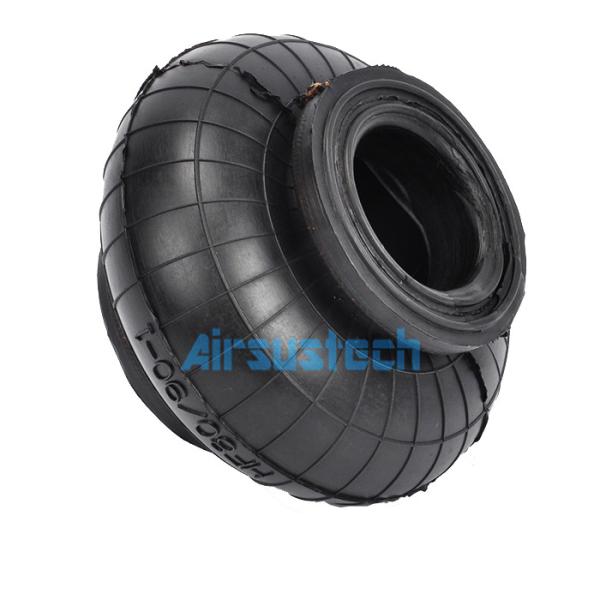

    The related picture of HF80/90-1
