Continental FD 2B40-10 Double Convoluted Rubber Air Spring Vibration Isolators

Refer NO.

Contitech FD 2B40-10

Contitech FD 2B 40-10

Contitech FD 2B40 10

Contitech FD 2B 40 10

Contitech FD 2B4010

Contitech FD40-10CI1/8NPTOS

Contitech FD40-10 CI 1/8NPT OS

2B4060 Specifications and Tecnical Data

1. Nut/blind nut Top plate screw (nut) teeth: 1 x M8X1.25

2. Bottom cover plate screw (nut) teeth: 2 x M8X1.25

Bottom plate screw center distance : 20 mm
2. Air hole/air inlet/air fitting air hole/air inlet: G1/8

Screw Center Distance Between Gas Hole and Nut : single
3. Top plate diameter (width): 90 mm, bottom cover diameter (width): 90 mm bell-shaped rubber bellows rubber bellows diameter: 125 mm

4. Bumper block/bumper block without bumper
5. Belt loop/belt loop with belt loop: with one piece of belt loop

Min. pressure: 0 bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 1.1kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 160mm, minimum 150mm

Pneumatic application-static characteristic values

Force F[KN]

Other Types Of Contitech Convoluted Air Spring Replacement We Could Offer:

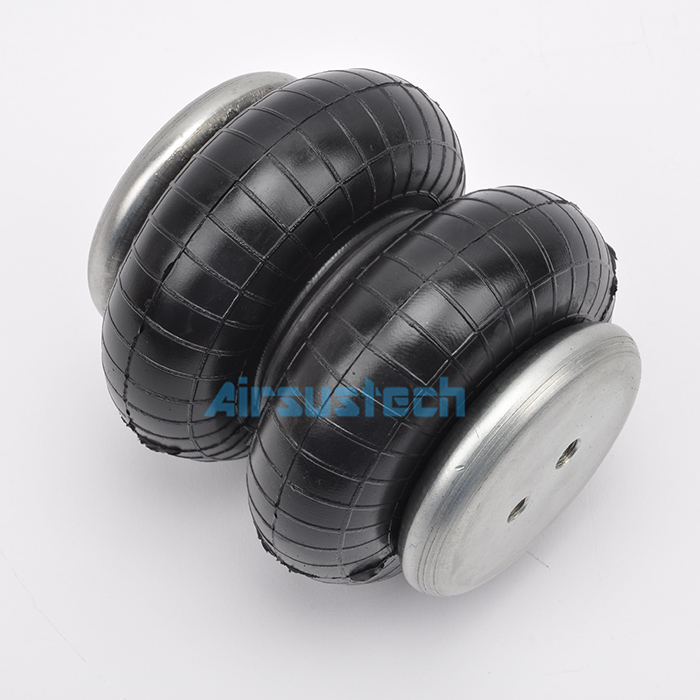

The related picture of 2B40-10
