    Continental FS 1710-12 RS UNF Comparable To Firestone W013587727 One Convolution Rubber Air Spring

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1F7727
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Continental FS 1710-12 RS UNF Comparable To Firestone W013587727 One Convolution Rubber Air Spring

    Continental FS 1710-12 RS UNF Comparable To Firestone W013587727 One Convolution Rubber Air Spring


    Cross Reference


    Contitech FS 1710-12 RS

    Continental FS 1710-12 RS

    ContiTECH FS1710-12 RS

    Continental FS1710-12 RS

    Firestone W01-358-7727

    Firestone W01 358 7727

    Firestone W013587727

    Firestone WO13587727

    Firestone WO1 358 7727

    Firestone WO1-358-7727

    Firestone W01-358-1026

    Firestone W01 358 1026

    Firestone W013581026

    Firestone WO13581026

    Firestone WO1 358 1026

    Firestone WO1-358-1026


    Specifications and Detailed Technical Parameters: 1F7727


    Top Cover Plate Screw: 24 ×M10

    Plate Diameter: 482mm

    Rubber Bellow Diameter: 517mm

    Height: 55mm to 177mm


    Min. pressure: 0 bar

    Return force to min.height: ≤730N

    Overall weight with clamped plates: 8.7kg


    Vibration isolation - dynamic characteristic values

    Design Height H: recommended 125mm, minimum 110mm

    Pressure p[bar]345678Vol. V[l]
    Force(Load) [KN]53.670.687.5110126.7145.725
    Spring rate [N/mm]101912881551189721542448
    Natural frequency [Hz]2.22.22.12.12.12.1

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]14048.264.481.29811513228
    12053.872.190.610912814724
    10060.280.210112114216219
    806586.610913015217415
    6067.890.211313615818195

    Applications


    Trandfer station

    Paper machine

    Bark peeling machine

    Scissors-type lifting table

    Automatic ram weight adjustment

    Pantograph

    Tensioning station

    Edge control

    Veneering press

    Tooling and machining system

    Conveyor systems

    Packaging


    Other types


    Contitech SizeFirestone SizeThread
    FS 960-12 RS/18 ×M10
    FS 1330-11 RS

    W013587197, W01-358-7197, WO13587197, WO1-358-7197

    24 ×M10
    FS 2870-16 RS

    W013587737, W01-358-7737, WO13587737, WO1-358-7737

    32 ×M10
    FS 5450-16 RS/40 ×M10
    FD 960-22 RS

    W013587191, W01-358-7191, WO13587191, WO1-358-7191

    18 ×M10
    FD 1120-30 RI/16 ×M10
    FD 1330-25 RS

    W013587227, W01-358-7227, WO13587227, WO1-358-7227

    24 ×M10
    FD 1710-25 RS

    W013587242, W01-358-7242, WO13587242, WO1-358-7242

    24 ×M10

    FD 1730-40 RI

    /16 ×M10
    FD 2380-24 RS

    W013587772, W01-358-7772, WO13587772, WO1-358-7772

    24 ×M10
    FD 2470-40 RI/16 ×M10
    FD 2870-30 RS

    W01M586978, W01-M58-6978, WO1M586978, WO1-M58-6978

    32 ×M10
    FD 5450-28 RS

    W01M586970, W01-M58-6970, WO1M586970, WO1-M58-6970

    40 ×M10
    FT 960-34 RS

    W013587761, W01-358-7761, WO13587761, WO1-358-7761

    18 ×M10
    FT 1330-35 RS

    W013587823, W01-358-7823, WO13587823, WO1-358-7823

    24 ×M10
    FT 1710-38 RS

    W013587324, W01-358-7324, WO13587324, WO1-358-7324

    24 ×M10
    FT 2870-45 RS

    W013587320, W01-358-7320, WO13587320, WO1-358-7320

    32 ×M10
    FT 5450-44 RS/40 ×M10

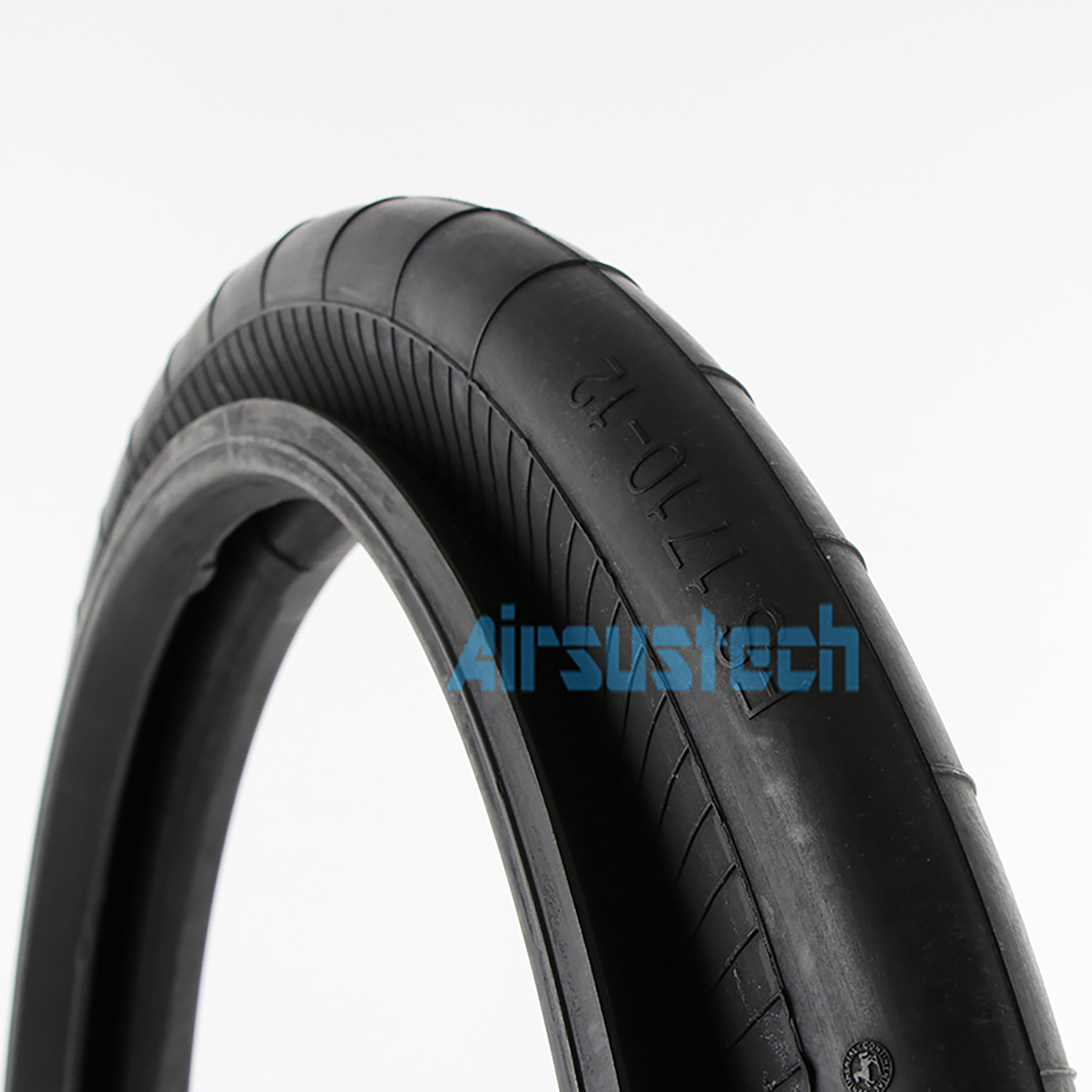

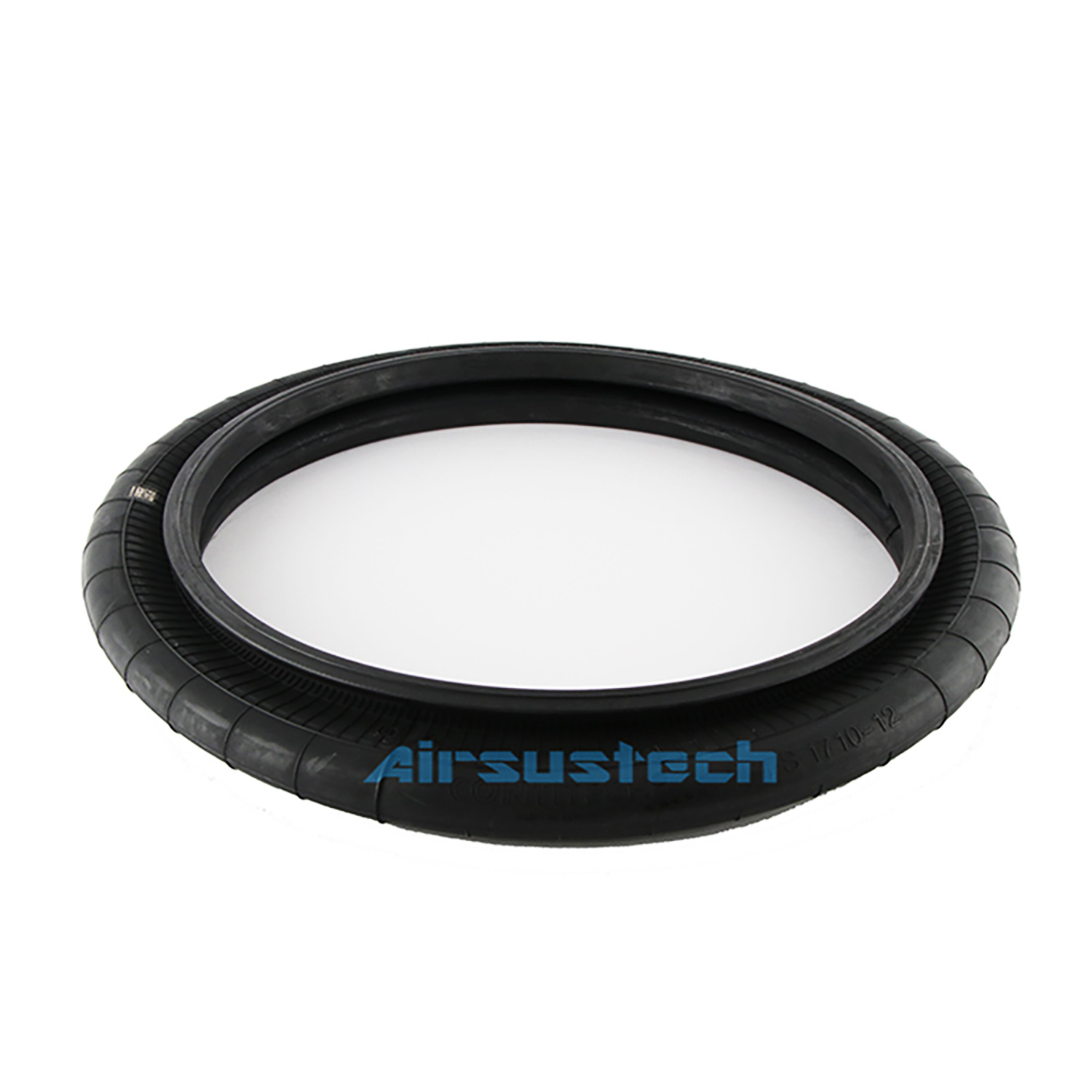

    The related picture of 1F7727
