    Industrial Goodyear 1B14-358 578913352 Air Spring 3/4-14 NPTF Rubber Shock Absober Bellow

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B53014P01
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Industrial Goodyear 1B14-358 578913352 Air Spring 3/4-14 NPTF Rubber Shock Absober Bellow

    Industrial Goodyear 1B14-358 578913352 Air Spring 3/4-14 NPTF Rubber Shock Absober Bellow


    Cross Reference


    Firestone Style 113-1

    Firestone. W01-358-7112

    Firestone. W01 358 7112

    Firestone. W013587112

    Firestone. WO13587112

    Firestone. WO1-358-7112

    Firestone. WO1 358 7112

    FleetPride AS7112

    Goodyear 1B14 358

    Goodyear 1B14-358

    Goodyear 1B14358

    Goodyear Flex No. 578913352

    Taurus 6326

    Triangle AS-4339

    TRP AS71120

    Dayton 354-7112

    Hendrickson S-13044

    Loadguard SC2012

    Fleetrite 554782C1

    Ridewell 1003587112C

    SAF Holland 90557028

    Navistar


    Specifications and Detailed Technical Parameters:AIRSUSTECH 1B53014P01


    • Nut/blind nut

    Top plate screw (nut) teeth: 4X3/8-16UNC

    The screw center distance of the top cover plate: 158.8mm

    Screw (nut) teeth of the bottom cover plate: 4X3/8-16UNC

    The screw center distance of the bottom cover plate: 158.8 mm

    • Air hole/air inlet/air fittings

    Air hole/air inlet: 3/4NPTF-14NPTF

    • Cover plate

    Top plate diameter: 289 mm

    Diameter of the bottom cover: 289 mm

    • Bell rubber bellows

    Maximum diameter of rubber bellows: 406 mm

    Natural diameter of rubber bellows: 360 mm

    Working stroke: minimum 81 mm to maximum 160 mm

    Maximum height: 160 mm

    Minimum height: 81 mm

    • Bumper block/bumper block

    No bumper block

    • Belt loop/Belt loop

    With belt loop: No belt loop


    Min. pressure: 0 bar

    Return force to min.height: ≤300N

    Overall weight with clamped plates: 6.1kg


    Vibration isolation - dynamic characteristic values

    Design Height H: recommended 150mm, minimum 120mm

    Pressure p[bar]345678Vol. V[l]
    Force(Load) [KN]18.624.931.537.944.450.811.0
    Spring rate [N/cm]365044105340614072207920
    Natural frequency [Hz]2.22.12.12.02.02.0

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]16017.123.029.035.041.247.311.8
    14020.026.833.740.647.754.510.7
    12022.329.837.344.952.760.29.5
    10024.131.940.048.156.364.38.2
    8025.333.441.950.358.867.16.6
    6026.034.543.452.060.869.14.6

    Other Goodyear Air Springs We Have


    5789132012B9-2092B12-300
    1B5-22B8-5502B12-432
    1B12-3002B8-1532B12-427
    1B12-3132B8-1502B12-320
    1B12-3012B8-5502B12-311
    1B52B9-2532B12-454
    5799135002B9-3522B14-356
    1B8-12B9-2462B14-453
    5799135322B9-2522B12-434
    1B7-5402B9-2182B12-345
    1B8-5502B9-2502B12-346
    1B5-22B9-2532B12-440
    5799135022B9-2542B12-427
    2B12-4592B9-269578923356
    2B9-6062B9-2512B14-476
    2B9-2282B7-5402B14-383
    2B9-2292B12-4252B8-150
    2B9-2162B12-4252B8-153
    2B9-2042B12-4112B8-550
    2B9-2072B12-4122B8
    2B9-2012B12-304579923530
    2B9-2062B12-309556238077
    2B9-2102B12-3162B12-459
    2B9-2002B12-3203B12-328
    2B9-2022B12-3073B12-335
    2B9-2162B12-4333B12-304
    2B9-2462B12-4453B12-300
    2B9-2015789233093B12-301
    2B9-2302B12-4103B12-310
    2B9-2652B12-3123B12-304
    2B9-2802B12-313C2ECH
    2B9-2452B12-4592B12-313
    2B10-2262B12-426
    2B9-2872B12-319
    2B9-2062B12-406

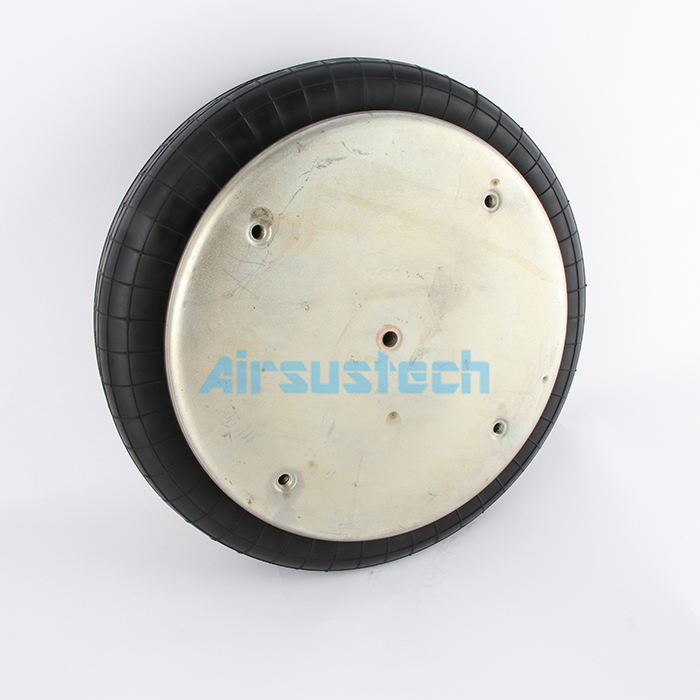

    The related picture of 1B53014P01
