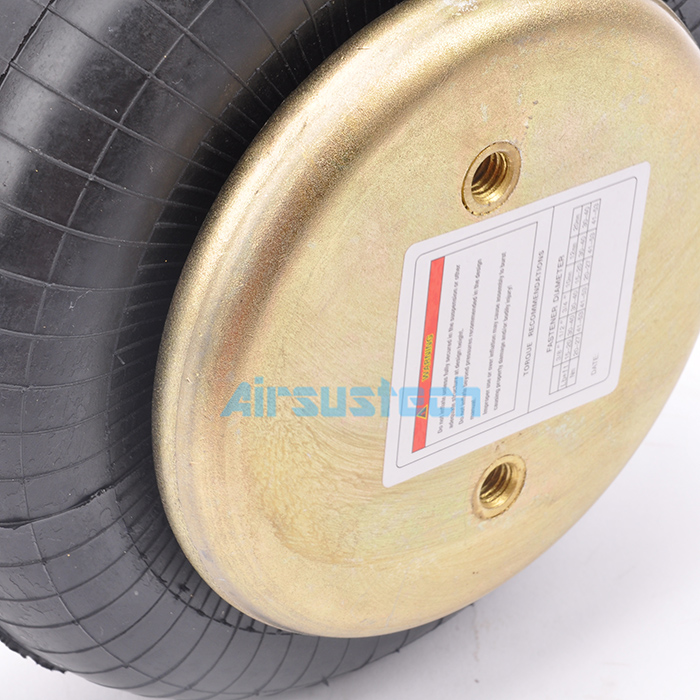

Rubber Goodyear Air Spring 1B8-550 Replacement One Convolutions Shock Absorbers

Refer Number

Goodyear: 1B8-550

Goodyear: 1B8 550

Firestone: W01-358-7564

Firestone: W01 358 7564

Firestone: W013587564

Firestone: WO1-358-7564

Firestone: WO1 358 7564

Firestone: WO13587564

Firestone: w01-358-7564

Firestone: w01 358 7564

Firestone: w013587564

Contitech: FS120-10

Contitech: FS120 10

Contitech: FS12010

The detailed Specifications and techical data: 1B8×4

Min. pressure: 0 bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 2.0kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 110mm, minimum 90mm

Pneumatic application-static characteristic values

Force F[KN]

Packing Details

Rotary surface type air spring assembly

1. Concealed nut; 2 Air inlet (air enters the tapered hole of the air bag); 3. Rim plate (permanently crimped on the air bag at the factory, strict component leakage before shipment test); 4. Rubber bladder; 5. Girdle Hoop/Belt Loop(With/ Without)

When the rubber air spring works, the inner cavity is filled with compressed air to form a compressed air column. With the increase of the vibration load, the height of the spring decreases, the volume of the inner cavity decreases, the stiffness of the rubber spring increases, the effective bearing area of the inner cavity air column increases, and the bearing capacity of the rubber spring increases. Therefore have ideal elastic properties.

The reated picture

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
