    Bidirectional 2B9-253 578923206 Goodyear Air Spring 2 Convoluted Cylinders

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6945
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Bidirectional 2B9-253 578923206 Goodyear Air Spring 2 Convoluted Cylinders

    Bidirectional Goodyear 2B9-253/ 578923206 Air Spring 2 Convoluted Cylinders


    OEM NO.


    Goodyear 2B9-253

    Goodyear 2B9 253

    Goodyear 2B9253

    Goodyear 578923206

    Firestone W01-358-6945/20-2

    Firestone W01 358 6945/20-2

    Firestone W013586945/20-2

    Firestone WO1-358-6945/20-2

    Firestone WO1 358 6945/20-2

    Firestone WO13586945/20-2

    Contitech : FD200-25 427

    Contitech : FD200 25 427

    Contitech : FD20025 427

    Triangle 4427

    Triangle 6332

    Ridewell 1003586945C

    Leland Sc2 125

    Watson&Chalin AS0119F

    Watson&Chalin AS01451G


    Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6945

    • Nut/blind nut

    Top plate screw (nut) teeth: 2X1/2-13UNC
    The screw center distance of the top cover plate: 89mm
    Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
    The screw center distance of the bottom cover plate: 89 mm

    • Air hole/air inlet/air fittings

    Air hole/air inlet: 1/4NPTF

    The screw center distance between the air hole and the nut: 44mm

    • Cover plate

    Top plate diameter: 160 mm

    Diameter of the bottom cover: 160mm

    • Bumper block/bumper block

    With bumper block

    • Belt loop/Belt loop

    With belt loop: One belt loop


    Other Goodyear assembly we could offer


    578913201

    2B9-209

    2B12-300

    1B9-202

    2B8-550

    2B12-432

    1B12-300

    2B8-153

    2B12-427

    1B12-313

    2B8-150

    2B12-320

    1B12-301

    2B8-550

    2B12-311

    1B5

    2B9-253

    2B12-454

    579913500

    2B9-352

    2B14-356

    1B8-1

    2B9-246

    2B14-453

    579913532

    2B9-252

    2B12-434

    1B7-540

    2B9-218

    2B12-345

    1B8-550

    2B9-250

    2B12-346

    1B5-2

    2B9-253

    2B12-440

    579913502

    2B9-254

    2B12-427

    1B5-2

    2B9-269

    578923356

    2B9-606

    2B9-251

    2B14-476

    2B9-228

    2B7-540

    2B14-383

    2B9-229

    2B12-425

    2B8-150

    2B9-216

    2B12-425

    2B8-153

    2B9-204

    2B12-411

    2B8-550

    2B9-207

    2B12-412

    2B8

    2B9-201

    2B12-304

    579923530

    2B9-206

    2B12-309

    556238077

    2B9-210

    2B12-316

    3B12-328

    2B9-200

    2B12-320

    3B12-328

    2B9-202

    2B12-307

    3B12-335

    2B9-216

    2B12-433

    3B12-304

    2B9-246

    2B12-445

    3B12-300

    2B9-201

    578923309

    3B12-301

    2B9-230

    2B12-410

    3B12-310

    2B9-265

    2B12-312

    3B12-304

    2B9-280

    2B12-313

    C2ECH

    2B9-245

    2B12-459

    2B12-313

    2B10-226

    2B12-426

    2B12-459

    2B9-287

    2B12-319


    2B9-206

    2B12-406

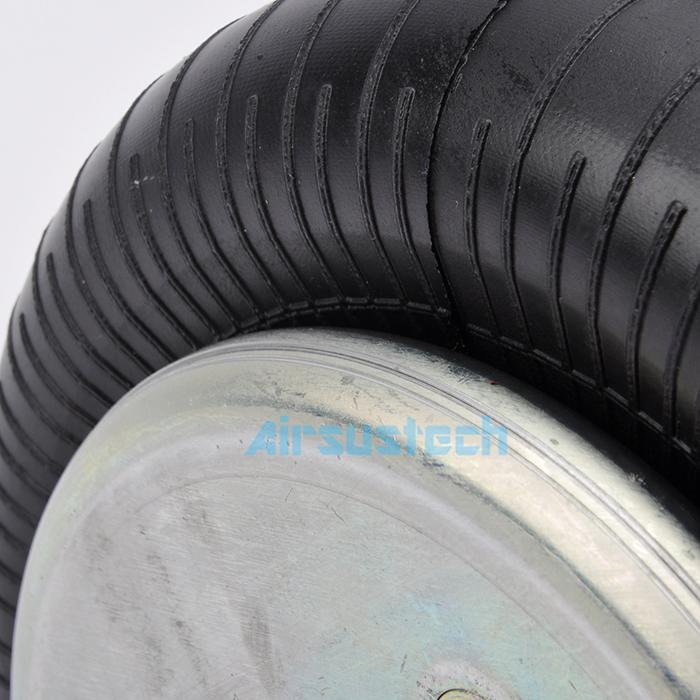

    The related picture of 2B6945
