    Contitech FD 200-19 504/161299 Air Bag Suspension Double Convoluted Spring For Paper Machine

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6926
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Contitech FD 200-19 504/161299 Air Bag Suspension Double Convoluted Spring For Paper Machine

    Contitech FD 200-19/161299 Air Bag Suspension Double Convoluted Spring For Paper Machine


    OEM NO.


    Firestone W01-358-6926

    Firestone WO13586926

    Firestone WO1-358-6926

    Firestone W013586926

    FIRESTONE W01-358-6926

    FIRESTONE WO13586926

    FIRESTONE WO1-358-6926

    FIRESTONE W013586926

    Contitech FD 200-19 504

    Contitech FD 200 19 504

    Contitech FD200-19 504

    Contitech FD200 19 504

    Contitech FD20019 504

    Contitech 161299

    Triangle 6325

    Triangle 4504

    RR Load LS20


    Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6926

    • Nut/blind nut

    Top plate screw (nut) teeth:2X3/8-16UNC

    The screw center distance of the top cover plate: 89mm

    Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC

    The screw center distance of the bottom cover plate: 89 mm

    • Air hole/air inlet/air fittings

    Air hole/air inlet: 1/4NPTF

    The screw center distance between the air hole and the nut: 38mm

    • Cover plate

    Top plate diameter: 160 mm

    Diameter of the bottom cover: 160mm

    • Bell rubber bellows

    Rubber bellows diameter: 224mm(MAX251)

    The Maximum Height: 274mm

    The Minimum Height: 95 mm

    • Bumper block/bumper block

    With bumper block

    • Belt loop/Belt loop

    With belt loop: One belt loop


    Min. pressure: 0bar

    Return force to min.height: ≤200N

    Overall weight with clamped plates: 3.2kg


    Vibration isloation-dynamic characteristic values
    Design height H: recommended 220mm, minimum 205mm

    Pressure p [bar]345678Vol. V [l]
    Force (Load) [KN]6.18.210.312.514.516.56.0
    Spring rate [N/cm]7509601110134015101730
    Natural frequency [Hz]1.81.71.71.61.61.6

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]2504.96.68.29.511.713.46.5
    2106.78.811.013.315.517.65.8
    1707.910.513.115.718.320.74.9
    1309.112.015.017.820.723.44.0
    909.913.216.619.823.025.82.9

    Other Types Of Contitech Convoluted Air Spring Replacement We Could Offer:


    FS 120-9 3/4 M8FD 200-25 427FD 530-35 545
    FS 120-9 1/4 M8FD 200-25 454FD 530-35 720
    FS 200-10 3/4 M8FD 200-25FD 120-17 509
    FS 200-10 1/4FD 200-19FD 40-10
    FS 200-10FD 200-25 453FD 70-13
    FS 70-7 1/4 M8FD 200-25 426FD 120-17
    FS 330-11 474FD 200-25 427FD 200-22 510
    FS 330-11FD 200-25 463FD 200-22 706
    FS 330-11 468FD 200-25 429FT 330-29 546
    FS 330-14FD 200-25 507FT 330-29 547
    FS 330-11 647FD 200-25 511FT 330-29 520
    FS 40-6 1/8 M8FD 200-25 717FT 330-29 430
    FS120-10FD 330-22 363FT 330-29 431
    1B8-580FD 330-22 472FT 330-29 432
    FD 200-19 504FD 330-22 471FT 330-29 433
    FD 200-19FD 330-22 500FT 330-29 469
    FD 200-19 724FD 330-22 313FT 330-29 466
    FD 200-19 539FD 330-22 337FT 330-29 498
    FD 200-19 505FD 330-22 318FT 412-323
    FD 200-19 319FD 330-22 346FT 210-32
    FD 200-19 310FD 330-22 364FD 330-22 364
    FD 200-19 315FD 330-22 365
    FD 200-19 362FD 330-22 366
    FD 200-19 320FD 330-22 367
    FD 200-19 504FD 330-22 331
    FD 200-19 452FD 330-22 368
    FD 200-19 499FD 330-22 327
    FD 200-19 450FD 330-22 343
    FD 200-19 448FD 330-22 334
    FD 200-19 506FD 330-22 363
    FD 200-19 510FD 530-22 321
    FD 200-22 524FD 330-30-371
    FD 200-19 P04FD 331-26-514
    FD 200-19 315FD 331-26-541
    FD 120-20FD 331-26-480
    FD 120-20 509FD 530-35 545
    FD 120-20 509FD 530-35 543
    FD 200-25FD 530-35 530

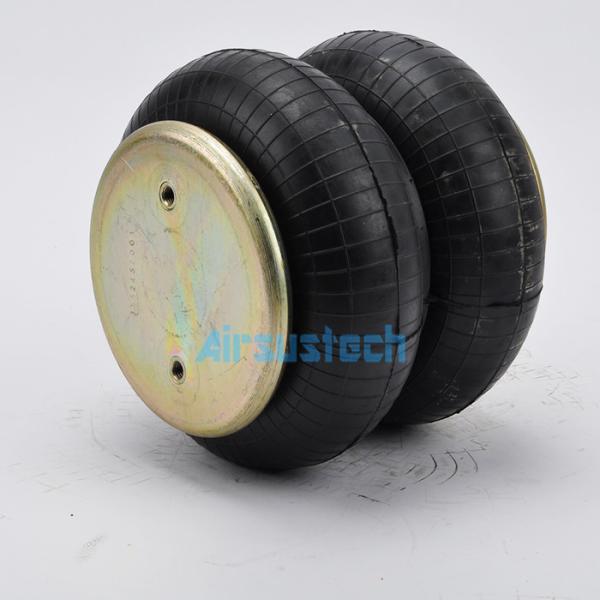

    The related picture of 2B6926
