Bidirectional Goodyear Air Spring 1B8-580 One Rubber Convoluted Air
Bags For Bronzing Machine
OEM NO.
Goodyear 1B8-580
Goodyear 1B8 580
Goodyear 1B8580
Firestone W01-358-7598
Firestone W013587598
Firestone W01 358 7598
Firestone WO13587598
Firestone WO1-358-7598
Firestone WO13587598
Specifications and Detailed Technical Parameters:AIRSUSTECH 1B7598
Nut/blind nut
Top plate screw (nut) teeth:2X3/8
The screw center distance of the top cover plate: 70mm
Screw (nut) teeth of the bottom cover plate: 2X3/8
The screw center distance of the bottom cover plate: 70 mm
Air hole/air inlet/air fittings
Air hole/air inlet: 1 / 4-18NPTF
The screw center distance between the air hole and the nut: 35mm
Cover plate
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm
Bell rubber bellows
Maximum diameter of rubber bellows: 240 mm
Natural diameter of rubber bellows: 215 mm
Working stroke: minimum 60 mm to maximum 180 mm
Maximum height: 180 mm
Minimum height: 60mm
Bumper block/bumper block
No bumper block
Belt loop/Belt loop/Girdle hoop
Without belt loop/girdle hoop
Min. pressure: 0 bar
Return force to min.height: ≤20kg
Overall weight with clamped plates: 2.3kg
Pneumatic application-static characteristic values
Force F[Kg]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H[mm] | 180 | 220 | 320 | 460 | 580 | 750 | 910 | 3.5 |
| 150 | 370 | 510 | 650 | 790 | 940 | 1080 | 2.9 |
| 130 | 490 | 660 | 830 | 1010 | 1190 | 1370 | 2.7 |
| 110 | 580 | 780 | 980 | 1180 | 1380 | 1590 | 2.4 |
| 90 | 650 | 880 | 1080 | 1300 | 1520 | 1740 | 2 |
| 70 | 690 | 920 | 1140 | 1370 | 1600 | 1830 | 1.6 |

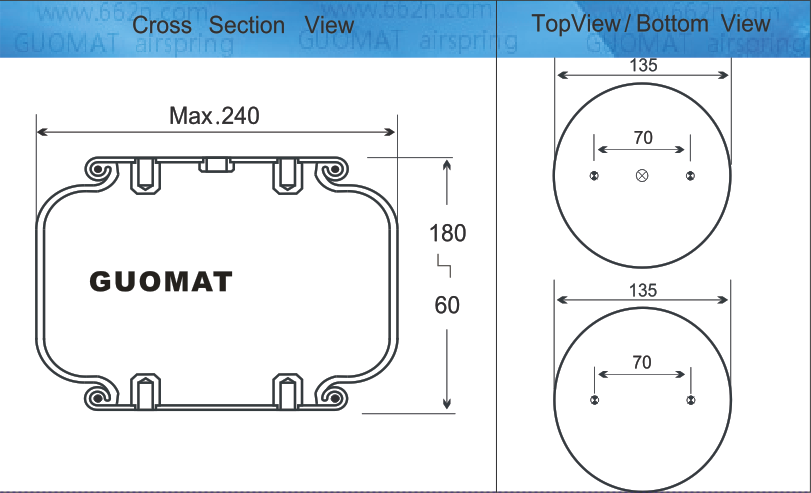

The related picture of 1B7598
Features: The 1B7598 can replace the goodyear 1B8-580. The air spring is
designed to maximize the carrying capacity, ride quality and
stability of each vehicle. Load support is provided by air
pressure, which can be adjusted for each load.
High performance: The air spring is a powerful, low-cost actuator that can operate
in a linear or angular manner or be stacked to provide longer
travel or greater angular rotation.
High driving flexibility: Air springs can be used as load bearing parts of air suspension
systems in machines, cars and buses. As a result, the vehicle
remains at a fixed height regardless of the load.
Five Reasons why can rubber air spring replace pneumatic or
hydraulic cylinder block
| Low design height | Compared to conventional cylinders, the airbag air spring has no
piston rod, which greatly reduces the design height and makes the
structure more compact. |
| Low purchase cost | compared with the traditional cylinder, the airbag air spring not
only has low purchase cost, but also can be reduced due to its long
service life and no maintenance. |
| Economical and simple installation | when not inflated, the air bag spring installation is simple and
quick, thus saving time and cost. Moreover, the product has good
elasticity and can compensate for small offset. |
| Allow transverse eccentricity | the air bag air spring transverse eccentricity up to 30mm, in this
can still maintain the reliability of the work. Unlike cylinders or
hydraulic cylinders, airbag cylinders do not have seals that can
jam or wear out, and they do not require the installation of
sophisticated guides susceptible to dust and other impurities.
|
| Friction-free, maintenance-free | even in poor working conditions, the air bag spring can work
effectively. Because there are no friction parts (seals) in the air
bag cylinder, it will not wear even in the environment of dust,
particles or precipitation. |
