    Firestone W01-358-8027 38 W01-358-8029 Air Spring Actuator 3 Convoluted

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B8027
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone W01-358-8027 38 W01-358-8029 Air Spring Actuator 3 Convoluted

    Firestone W01-358-8027/38/W01-358-8029 OEM Air Spring Actuator 3 Convoluted


    Refer NO.


    Firestone W01-358-8027

    Firestone W01 358 8027

    Firestone W013588027

    Firestone Style 38

    Firestone W01-358-8029

    Firestone W013588029

    Firestone W01 358 8029

    Contitech FT 330-29 466

    Contitech FT 330 29 466

    Contitech FT330-29 466

    Contitech FT330 29 466

    Contitech FT33029 466

    Contitech FT 33029466

    Goodyear 578933100

    Goodyear 3B12-310

    Goodyear 3B12 310

    Goodyear 3B12310

    Triangle 4466

    Triangle 6334

    Arvin Meritor 200117

    Suspensions 200117

    Silent Drive

    Histeer

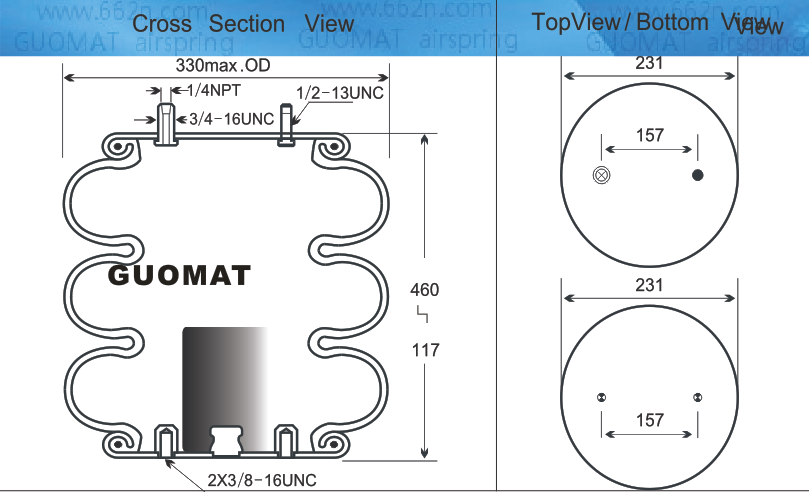

    Specifications and Detailed Technical Parameters: 3B8027

    • Nut/blind nut

    Top plate screw (nut) teeth: 3/4-16UNC; 1/2-13UNC

    Bottom cover plate screw (nut) teeth: 2×3/8-16UNC

    The screw center distance of the Top cover plate: 157mm

    The screw center distance of the bottom cover plate: 157mm

    • Air hole/air inlet/air fittings

    Air hole/air inlet: 1/4NPT

    • Rubber Bellows

    Top plate diameter (width): 231 mm

    Diameter (width) of the bottom cover plate: 231 mm

    Rubber Bellows MAX Diameter: 330mm

    The Working Stroke: 117mm to 460mm

    • Bumper block/bumper block

    With bumper block

    • Belt loop/Belt loop/Girdle Hoop

    With belt loop: 2 pieces of belt loop/girdle hoop


    Min. pressure: 0 bar

    Return force to min.height: ≤400N

    Overall weight with clamped plates: 5.9kg


    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]3808.811.915.118.421.725.123.6
    34010.714.418.222.025.929.821.6
    30012.316.520.825.129.533.719.2
    26013.718.222.927.632.336.916.6
    22014.819.524.629.634.639.513.8
    18015.921.126.531.837.242.410.7
    14017.022.428.133.639.144.77.5

    Other types of 3 convolutions firestone air spring replacement we could offer


    AIRSUSTECH No.

    Contitech No.

    Firestone No.

    3B7996

    FT330-29 520

    W01-358-7996

    3B7994

    FT330-29 546

    W01-358-7994

    3B7995

    FT330-29 547/64573

    W01-358-7995

    3B8008

    FT330-29 431

    W01-358-8008

    3B8010

    FT330-29 432

    W01-358-8010

    3B8030

    FT330-29 498

    W01-358-8030/38

    3B8006

    FT 330-29 430

    W01 358 8006/FLEX 38R/38D

    3B6383-38

    FT 530-30

    /

    3B6386

    FT 530-30

    /

    3B7808

    FT 530-32 336/FT 530 32 329

    W01-358-7808/ W01-358-7798/ FLEX 313D

    3B53032

    FT 530-32 -60717

    FLEX 313D

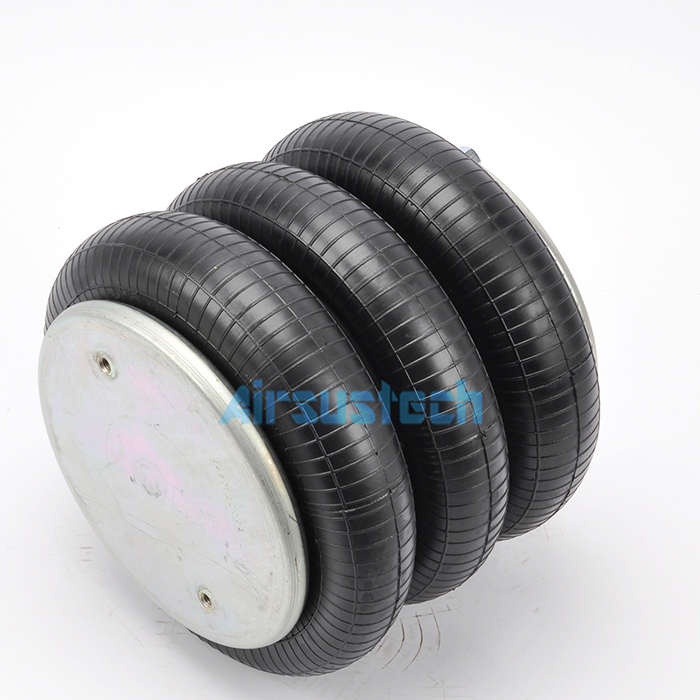

    The related picture of 3B8027
