    3B12-328 Goodyear Air Spring Triple Convoluted Rubber Shocks

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B7994
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    3B12-328 Goodyear Air Spring Triple Convoluted Rubber Shocks

    Triple Convoluted Rubber Shocks 3B12-328 Goodyear Air Spring


    OEM NO.


    Goodyear 3B12-328

    Goodyear 3B12 328

    Goodyear 3B12328

    Contitech FT 330-29 546

    Contitech FT 330 29 546

    Contitech FT330-29 546

    Contitech FT330 29 546

    Contitech FT33029546

    Contitech FT64572

    Firestone W01-358-7994

    Firestone W01 358 7994

    Firestone W013587994

    Triangle 4546

    Triangle 6364

    Watson&chalin AS-0019-F

    Watson&chalin AS 0019 F

    Watson&chalin AS0019F

    Euolid/meritor After market E-FS7994

    Euolid/meritor After market E FS7994

    Euolid/meritor After market EFS7994


    Specifications and Detailed Technical Parameters: 3B7994

    • Nut/blind nut

    Top plate screw (nut) teeth: 3/8-16UNC,3/4-16UNC

    Bottom cover plate screw (nut) teeth: 2×3/8-16UNC

    The screw center distance of the Top cover plate: 140 mm

    The screw center distance of the bottom cover plate: 157.5 mm

    • Air hole/air inlet/air fittings

    Air hole/air inlet: 1/4NPTF

    The air inlet/air hole/ air fittings is combined with the screw teeth

    • Rubber Bellows

    Top plate diameter (width): 231 mm

    Diameter (width) of the bottom cover plate: 231 mm

    Rubber bellows stroke: 130mm-460mm

    • Bumper block/bumper block

    With bumper block

    • Belt loop/Belt loop/Girdle hoop

    With belt loop: Two pieces of belt loop/girdle hoop


    Min. pressure: 0 bar

    Return force to min.height: ≤400N

    Overall weight with clamped plates: 5.9kg


    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]3808.811.915.118.421.725.123.6
    34010.714.418.222.025.929.821.6
    30012.316.520.825.129.533.719.2
    26013.718.222.927.632.336.916.6
    22014.819.524.629.634.639.513.8
    18015.921.126.531.837.242.410.7
    14017.022.428.133.639.144.77.5

    Other Goodyear assembly we could offer


    Air Bag 3B7994 can replace Goodyear 3B12-328/3B12 328 air spring. We also have the following goodyear types.

    578913201

    2B9-209

    2B12-300

    1B9-202

    2B8-550

    2B12-432

    1B12-300

    2B8-153

    2B12-427

    1B12-313

    2B8-150

    2B12-320

    1B12-301

    2B8-550

    2B12-311

    1B5

    2B9-253

    2B12-454

    579913500

    2B9-352

    2B14-356

    1B8-1

    2B9-246

    2B14-453

    579913532

    2B9-252

    2B12-434

    1B7-540

    2B9-218

    2B12-345

    1B8-550

    2B9-250

    2B12-346

    1B5-2

    2B9-253

    2B12-440

    579913502

    2B9-254

    2B12-427

    1B5-2

    2B9-269

    578923356

    2B9-606

    2B9-251

    2B14-476

    2B9-228

    2B7-540

    2B14-383

    2B9-229

    2B12-425

    2B8-150

    2B9-216

    2B12-425

    2B8-153

    2B9-204

    2B12-411

    2B8-550

    2B9-207

    2B12-412

    2B8

    2B9-201

    2B12-304

    579923530

    2B9-206

    2B12-309

    556238077

    2B9-210

    2B12-316

    2B12-459

    2B9-200

    2B12-320

    3B12-328

    2B9-202

    2B12-307

    3B12-335

    2B9-216

    2B12-433

    3B12-304

    2B9-246

    2B12-445

    3B12-300

    2B9-201

    578923309

    3B12-301

    2B9-230

    2B12-410

    3B12-310

    2B9-265

    2B12-312

    3B12-304

    2B9-280

    2B12-313

    C2ECH

    2B9-245

    2B12-459

    2B12-313

    2B10-226

    2B12-426

    2B12-459

    2B9-287

    2B12-319


    2B9-206

    2B12-406

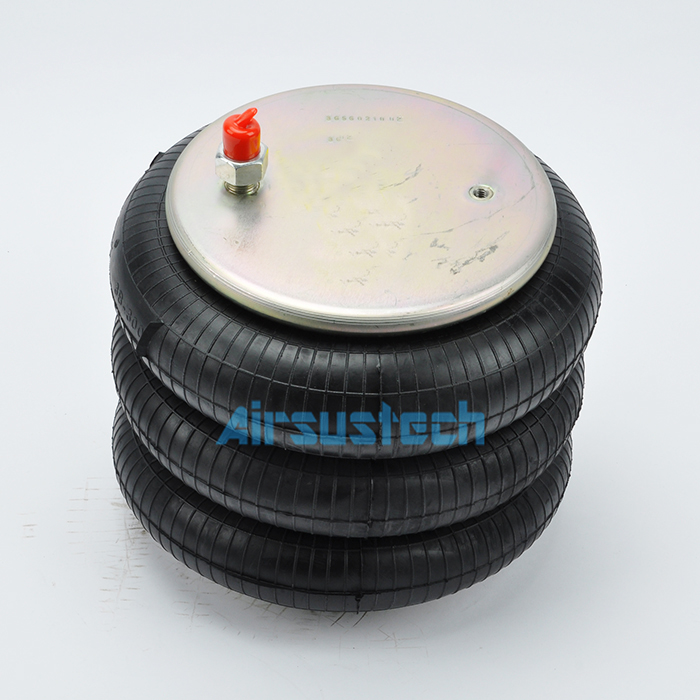

    The related picture of 3B7994
