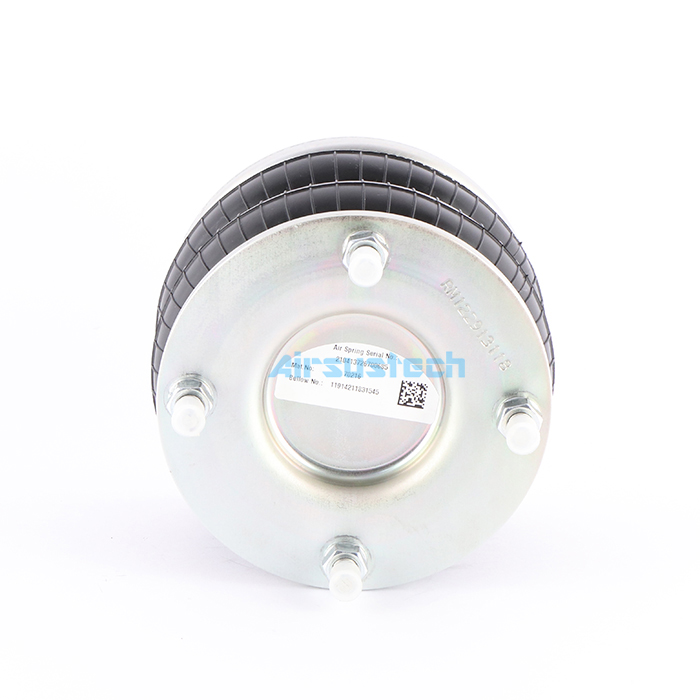

Norgren PM/31062 Modification Double Rubber Convoluted Air Spring With G1/2 Air Hole

Airsustech 6×2 Specifications and Tecnical Data

Nut/blind nut

Top plate screw (nut) teeth: 4pcs X M8

Screw (nut) teeth of the bottom cover plate: 4pcs X M8

Air hole/air inlet/air fitting

Air hole/air inlet: G1/2

Center distance between air inlet and nut: 22 mm

cover

Top plate diameter (width): 153.5 mm

Diameter of bottom cover (width): 153.5 mm

Stroke of Rubber Bellows: 80mm-195mm

Rubber Bellows' Diameter max at 7 bar: 75mm

max load at 80 mm height and 8 bar: 1415 daN

others

Bumper block/bumper block: No bumper

Belt loop/Belt loop/Girdle Hoop:one piece of belt loop/girdle hoop

Airsustech :6X2

• ContiTech: FD 76-14 1/2 M10
• ContiTech: FD 76-14 DS G1/2
• ContiTech: FD 76-14 DS G1/2 CR
• ContiTech: FD 76-14 DS CR G1/2
• ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR
• ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
• Norgren: M/31062 / M 31062 / M31062
• Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2
• Dunlop FR: SP1482
• Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112
• Double Convoluted Air Spring 2B180-115 D185
• Double Convoluted Air Spring 2B180-115 D185
• Replaces These Air Springs (Air Bellows)

Min. pressure: 0 bar

Return force to min height: ≤ 180 N

Overall weight with mental plates: 1.8 kg

Vibration isolation - dynamic characteristic values

Design height H: recommended 160mm, minimum 150mm

Pneumatic application - static characteristic values

Force F [kN]
