Industrial Air Springs Firestone W01 358 7731 Bellow Style 131 One
Convoluted Rubber Air Ride
Refer No.
W013587731,W01-358-7731, W01 358 7731, WO13587731, WO1-358-7731,
WO1 358 7731,w013587731,w01-358-7731,w01 358 7731,wo13587731,wo1-358-7731, wo1
358 7731,Wo13587731, Wo1-358-7731, Wo1 358 7731
Bellow No. 131B Style
Specifications and Tecnical Data
Type 1 Bead Plate, (2) 3/8-16 Blind Nuts On 1.75" Centers, 1/4" NPT
Centered Port, 115mm Top/bottom plate, Rubber bellows Max. diameter
165 mm, Working stroke from Maximum 115mm to Minimum 50mm, Without
bumper block, Without Belt loop/ Girdle hoop
Min. pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 1.4kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 115mm, minimum 100mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 2.9 | 3.8 | 4.8 | 5.8 | 6.8 | 7.7 | 1.5 |
| Spring rate [N/cm] | 855 | 1110 | 1340 | 1590 | 1840 | 2050 |
| Natural frequency [Hz] | 2.8 | 2.7 | 2.7 | 2.6 | 2.6 | 2.6 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H[mm] | 120 | 2.6 | 3.5 | 4.4 | 5.3 | 6.2 | 7.2 | 1.54 |
| 110 | 3.1 | 4.2 | 5.2 | 6.3 | 7.4 | 8.5 | 1.46 |
| 100 | 3.5 | 4.7 | 5.9 | 7.2 | 8.3 | 9.6 | 1.38 |
| 90 | 3.9 | 5.2 | 6.5 | 7.9 | 9.2 | 10.5 | 1.27 |
| 80 | 4.2 | 5.6 | 7.0 | 8.5 | 9.8 | 11.3 | 1.18 |
| 70 | 4.5 | 5.8 | 7.4 | 9.0 | 10.4 | 12.0 | 1.07 |
The advantage of the product:
This air spring is for damping. Its a rubber and fabric bladder
that houlds air pressure to support a load and isolate passsagers
and cargo from the shovk of motion caused by road irregularities.
As the air prressure increases, the air spring can support more
load while the spring rate increased. The larger the air spring,
the greater the maximum load it can support. Compared to
traditional springs, it is more competitive. And its advantages are
as follow:
1.The low cost,wide range of specifications.
2.The long service life, no maintenance and lubriction, without the
need for internal control rod or piston.
3.No friction effect, soft medium.
Application:
1. Mold Separator Inflatable Cushion
2. Roller Airbag
3. Airbag 3D Vibrating Table Pneumatic Tire
4. Rubber Vibrating Table Airbag
5. Press
6. air compressor
7. centrifuge
8. vibration conveyor
9. control hammer
10. casting machinery and textile machinery
11. optical and laser instruments
12. integrated circuits
13. ultra-precision machine tools

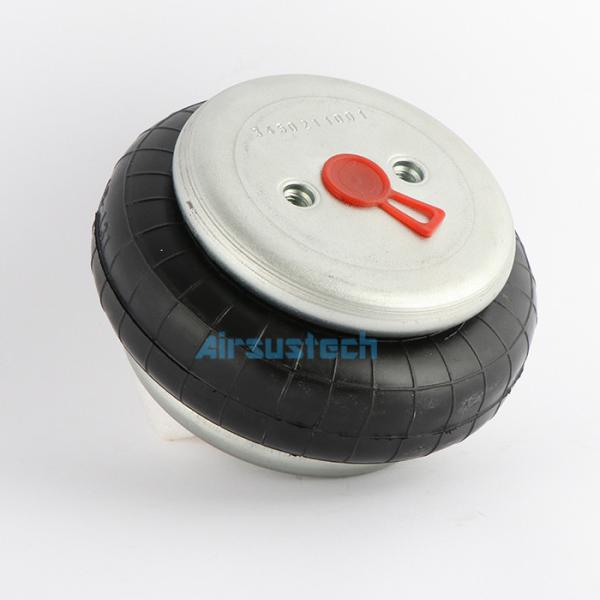

The picture of air spring:
