Contitech FS 330-11 468 Air Spring Goodyear 1B12-301 Single
Convoluted Rubber Air Balloon
Cross Reference
Contitech FS330-11 468
Contitech FS330 11 468
Contitech FS 330-11 468
Contitech FS 330 11 468
Contitech FS33011468
Contitech FS 33011468
Goodyear 1B12-301
Goodyear 1B12 301
Goodyear 1B12-313
Goodyear 1B12 313
Firestone W01-358-7009
Firestone W01 358 7009
Firestone W013587009
Firestone WO1-358-7009
Firestone WO1 358 7009
Firestone WO13587009
Firestone w01-358-7009
Firestone w01 358 7009
Firestone w013587009
Triangle 6374
Triangle 4468
SAF-Holland AR741
Neway 90557002
Specifications and Detailed Technical Parameters: 1B5171
Nut/blind nut
Top plate screw (nut) teeth: 3× 3/8-16UNC
Screw (nut) teeth of the bottom cover plate: 4× 3/8-16UNC
Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPTF
Cover plate
Top plate diameter: 231 mm
Bottom cover diameter: 231mm
Bell rubber bellows
MAX. Rubber Bellow Diameter: 325mm
Stroke: 55mm to 160mm
Bumper block/bumper block
No bumper block
Belt loop/Girdle Ring/Girdle Hoop
Without belt loop/girdle ring/girdle hoop
Min. pressure: 0 bar
Return force to min.height: ≤300N
Overall weight with clamped plates: 4.1kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 130mm, minimum 100mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 10.7 | 14.2 | 17.8 | 21.8 | 25.4 | 29.0 | 6.8 |
| Spring rate [N/cm] | 2645 | 3290 | 3935 | 4580 | 5225 | 5870 |
| Natural frequency [Hz] | 2.5 | 2.4 | 2.4 | 2.3 | 2.3 | 2.3 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H[mm] | 130 | 10.7 | 14.2 | 17.8 | 21.8 | 25.4 | 29.0 | 7.0 |
| 120 | 11.9 | 15.7 | 19.6 | 23.8 | 27.8 | 31.8 | 6.3 |
| 110 | 12.7 | 16.9 | 21.1 | 25.8 | 30.1 | 34.4 | 5.8 |
| 100 | 13.6 | 18.1 | 22.7 | 27.6 | 32.1 | 36.7 | 5.6 |
| 90 | 14.4 | 19.2 | 24.0 | 29.1 | 34.0 | 38.9 | 5.3 |
| 80 | 15.0 | 20.2 | 25.2 | 30.5 | 35.5 | 40.6 | 4.9 |
| 70 | 15.5 | 20.9 | 26.2 | 31.6 | 36.9 | 42.1 | 4.3 |
| 60 | 16.0 | 21.6 | 27.1 | 32.6 | 38.0 | 43.3 | 3.9 |

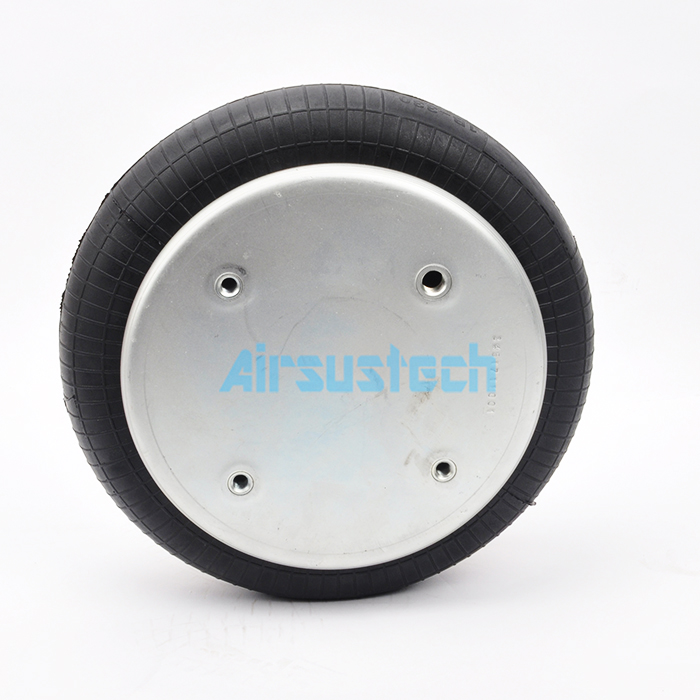

The related picture of 1B5171
Packing Details
| Model Size | Net Weight | Gross Weight | Box Weight | Box Size | Quantity |
| 1B5171 | 5.404 | 16.882 | 0.67 | 38*38*22cm | 3 |
