    SP 1B 12 Phoenix Air Spring Single Convolution Rubber Bellows

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B6374
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    SP 1B 12 Phoenix Air Spring Single Convolution Rubber Bellows

    SP 1B 12 Phoenix Air Spring Single Convolution Rubber Bellows


    OEM NO.


    Phoenix SP 1B 12

    Phoenix SP1B 12

    Phoenix SP1B12

    Phoenix SP 1 B 12

    Phoenix SP1 B 12

    Firestone W01-M58-6374

    Firestone W01M586374

    Firestone W01 M58 6374

    Firestone WO1M586374

    Firestone WO1-M58-6374

    Firestone WO1 M58 6374

    Firestone w01M586374

    Firestone w01 M58 6374

    Firestone w01-M58-6374

    Contitech FS 200-10

    Contitech FS200-10

    Contitech FS 200 10

    Contitech FS200 10

    Contitech FS 20010

    Contitech FS20010

    Dunlop(FR) 9''1/4×1 S09 10 1

    Dunlop(FR) 9''1/4×1S09 10 1

    Dunlop(FR) 9''1/4×1S0910 1

    Dunlop(FR) 9''1/4×1S09101

    Bosch 822419004

    Festo EB-250-85

    Festo EB 250 85

    Festo EB250-85

    Festo EB25085

    Norgren PM/31091(81/4×1)


    Specifications and Detailed Technical Parameters:AIRSUSTECH 1B6374


    Nut/blind nut

    Top plate screw (nut) teeth:2XM8×1.25

    The screw center distance of the top cover plate: 89mm

    Screw (nut) teeth of the bottom cover plate:2XM8×1.25

    The screw center distance of the bottom cover plate: 89 mm

    Air hole/air inlet/air fittings

    Air hole/air inlet: G3/4

    The screw center distance between the air hole and the nut: 38mm

    Cover plate

    Top plate diameter: 160 mm

    Diameter of the bottom cover: 160 mm

    Bell rubber bellows

    Rubber bellows diameter: 222 mm

    Height: 110mm

    Bumper block/bumper block

    No bumper block

    Belt loop/Belt loop

    With belt loop: No belt loop


    Min. pressure: 0 bar

    Return force to min.height: ≤200N

    Overall weight with clamped plates: 2.3kg


    Vibration isolation - dynamic characteristic values

    Design Height H: recommended 110mm, minimum 90mm

    Pressure p[bar]345678Vol. V[l]
    Force(Load) [KN]5.57.59.611.914.015.72.7
    Spring rate [N/cm]150020502600315037004250
    Natural frequency [Hz]2.62.62.62.62.62.6

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]1204.56.28.210.412.113.82.8
    1105.57.59.611.914.015.72.7
    1006.38.611.013.415.517.52.3
    907.09.412.114.617.019.22.2
    807.610.213.015.718.220.61.8
    708.110.913.616.519.321.91.6
    608.511.314.217.120.123.01.3

    Other Types of Phoenix air spring shocks we have

    SP 1 B 07

    SP 1 B 04

    1-800-727-9009

    800 827 9009

    SP 1 B 05

    SP 1 B 12-1

    SP 1 B 12-3

    SP 1 B 20

    SP 1 B 20-4

    SP 1 B 22

    SP 1 B 22-3

    SP 1 B 34

    SP 1 B 49-3

    SP 2 B 04 R

    SP 2 B 05 R

    SP 2 B 05 Ra

    SP 2 B 07 R

    SP 2 B 12 R

    SP 2 B 12 R-1

    SP 2 B 22 R

    SP 2 B 34 R

    SP 2 B 12R5

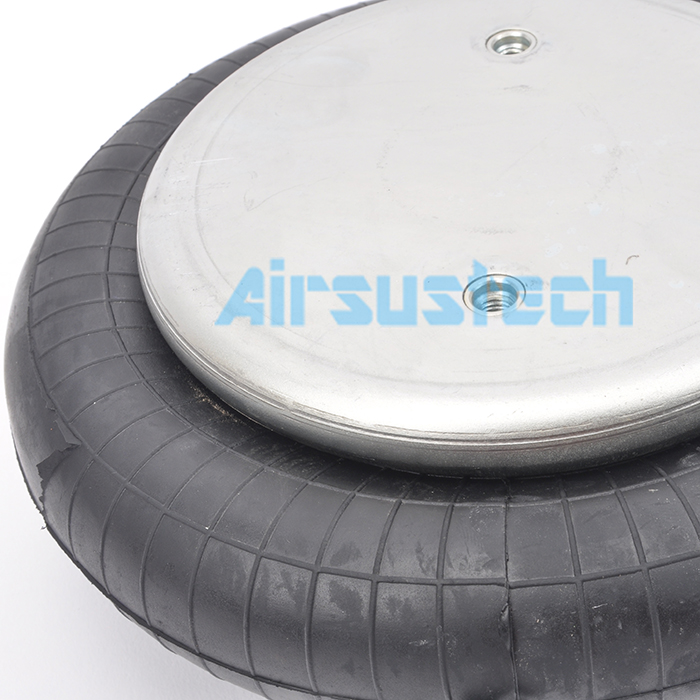

    The related picture of 1B6374
