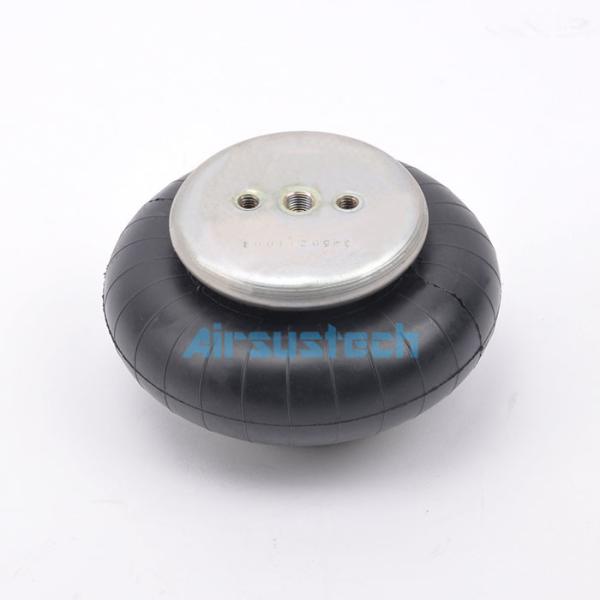

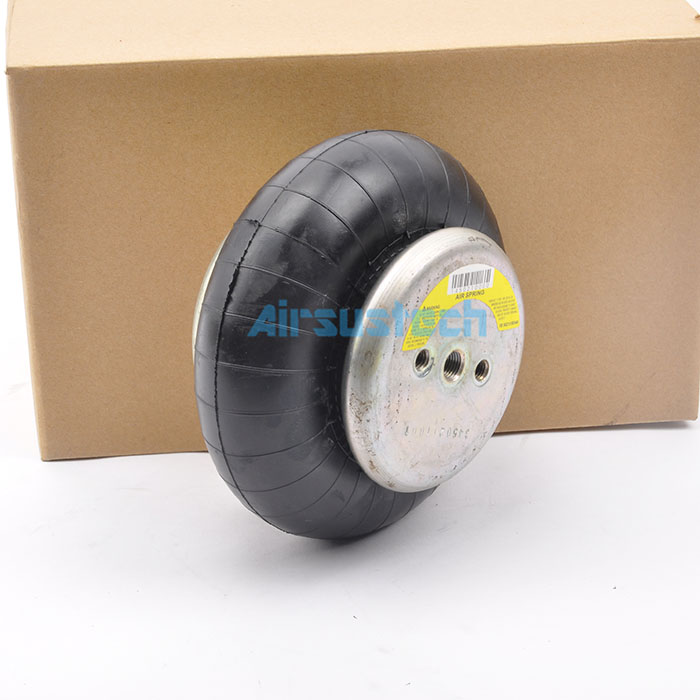

    One Convoluted Air Spring Firestone w013587451 Industrial Rubber Air Actuator

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B7451
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    One Convoluted Air Spring Firestone w013587451 Industrial Rubber Air Actuator

    One Convoluted Air Spring Firestone w013587451 Industrial Rubber Air Actuator


    Refer number


    Firestone W01-358-7451

    Firestone W013587451

    Firestone W01 358 7451

    Firestone wo13587451

    Firestone wo1-358-7451

    Firestone WO1-358-7451

    Firestone WO1 358 7451

    Firestone WO13587451

    Firestone w01-358-7451

    Firestone w01 358 7451

    Firestone w013587451


    The detail specifications and parameters


    Blind Nut(Teeth)

    Screw Teeth of the top plate: 2×3/8-16UNC

    Screw Teeth of the bottom plate: 2×3/8-16UNC
    Rubber Bellows

    The Max. Diameter: 205mm

    Cover plate diameter

    Top cover plate diameter: 115mm

    Bottom cover plate diameter: 115mm

    Air Inlet/Air Hole/Air Fittings

    1/4NPTF

    Height

    Maximum Height: 140mm

    Minimum Height: 50mm

    Stroke Height: 90mm

    Bumper block/Buffer block

    Without

    Girdle Hoop/Girdle Ring/Belt Loop

    Without


    The drawing of air spring/air actuator/air ballon
