    AIRSUSTECH Pneumatic 3B5180 Triple convoluted Rubber Air Spring 1/2 NPT Air Hole For Leather Stretching Machine

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B5180
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    AIRSUSTECH Pneumatic 3B5180 Triple convoluted Rubber Air Spring 1/2 NPT Air Hole For Leather Stretching Machine

    AIRSUSTECH Pneumatic 3B5180 Triple convoluted Rubber Air Spring 1/2 NPT Air Hole For Leather Stretching Machine


    Specifications and Detailed Technical Parameters: 3B5180


    Nut/blind nut

    Top plate screw (nut) teeth: 2×3/8-16UNC

    The distance between the screw on the top plate: 70mm

    Screw (nut) teeth of the bottom cover plate: 3/8-16UNC

    Air hole/air inlet/air fittings

    Air hole/air inlet: 1/2NPT

    The distance between the screw and the air inlet: 33mm

    Cover plate

    The Diameter Of The Top Plate: 132 mm

    The Diameter Of The Bottom Cover: 132mm

    Bumper block/bumper block

    Without bumper block

    Belt loop/Belt loop

    With two pieces of belt loop

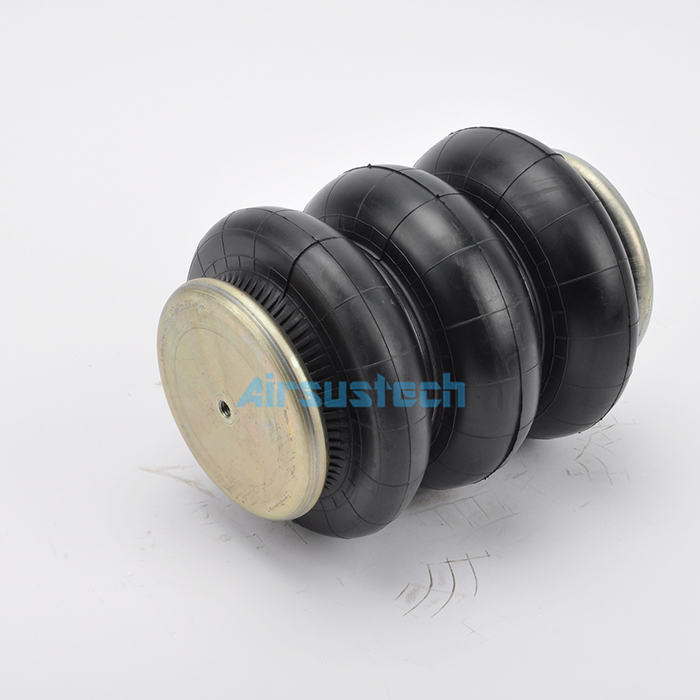

    The related picture of 3B5180



    The structure and characteristics of air spring
    Air spring is a kind of elastic element which uses the reaction force of compressed air inside the rubber bag as elastic restoring force. Air spring is widely used in power machinery, electronic equipment, instrumentation, chemical machinery and other equipment in automobile, railway vehicle, ship, aviation, industry and other fields by virtue of its good vibration absorption and isolation performance.


    1, air spring structure form
    Air spring is a non-metallic spring that fills a flexible rubber bag with air under a certain pressure and uses the compressibility of air to achieve elastic effect. Air spring is mainly divided into two categories: capsule air spring and membrane air spring.
    In the current mechanical design process, the air spring has long been like a gear, can be treated as a standard part, according to the weight of the load and geometric installation size can choose the corresponding air spring.


    2, the characteristics of air suspension
    (1) The elastic coefficient of air spring is variable. With the increase of the load, the elastic coefficient also increases. Air spring can be designed to meet all kinds of performance requirements of the effect curve, because the air spring has nonlinear effect.
    (2) the air spring rubber body is relatively light, the quality of air is also very small, the weight of the air spring comes mostly from the upper cover and the lower cover, unlike the steel spring, the metal is heavier.
    (3) The bearing capacity of the air spring can be adjusted according to the size of the inflation pressure in the rubber bag. For the same air spring, the size of the inflation pressure can be adjusted to meet the needs of different bearing capacity.
    (4) Because the air spring takes the air as the elastic medium, when compressed, the internal friction is small, so the vibration isolation effect is better. In addition, the air spring has a good ability to eliminate noise, because the ability of air and rubber to transmit sound is relatively weak.
    (5) the fatigue resistance of air spring is relatively strong, the experiment shows that: under normal circumstances, the stress cycle number of leaf spring can withstand is 500,000 to 600,000 times, and the general air spring can reach about 3 million times, and the stress cycle number of high-quality air spring can withstand can reach more than 5 million times. Therefore, the air spring has outstanding effect in resisting strain.
