    Bellow Number 578913301 Goodyear 1B12-318 Convoluted Air Spring Replaces Contitech FS 330-11 CI Pneumatic Actuator

    Bellow Number 578913301 Goodyear 1B12-318 Convoluted Air Spring Replaces Contitech FS 330-11 CI Pneumatic Actuator


    1B12-318 this air spring is imported from the American brand Goodyear. Its bellow number is 578913301. We are the agent of Goodyear. We promise that our products import from Mexico.This Goodyear air spring in a capsule. Bellows air springs have one, two or three rotations in flexible members. This single spiral airbag is commonly found on the lift springs or axles of trucks and trailers, as a driving spring, and also as an actuator or insulator in industrial and commercial applications.


    Refer No.


    Continental ContiTech: FS 330-11 CI 62743
    Continental ContiTech: FS 330-11 3/4 M8
    Continental ContiTech: FS 330-11 G3/4 M8
    Continental ContiTech: FS 330-11 CI G3/4
    Continental ContiTech: FS 330-11 CI G3/4 M8
    Continental ContiTech: FS 330-11 CI / FS330-11CI / FS33011CI
    Continental ContiTech Bellow: FS 330-11 / FS330-11 / FS33011
    Firestone No.: W01-M58-6011 / W01 M58 6011 / W01M586011
    Firestone Style: 19
    Dunlop FR: 12"x1 S12100
    Enidine: YI-1B12-318 / YI 1B12 318 / YI1B12318
    Norgren:PM/31121 / PM 31121 / PM31121
    Nominal (inch) x convolutions: 12″ x 1 / 12"x1 / 12x1


    Specifications and Detailed Technical Parameters: Goodyear 1B12-318


    Maximum diameter at 7 bar: 328mm

    Maximum height: 140mm

    Maximum travel: 89mm

    Bead type: 3

    Dim. A( Blind hole center): 158 mm

    Dim. B: 73mm

    Natural frequency at 5 bar: 2.5 fn( Hz)

    Material: 2 layer standard line


    Other Types Of Convoluted Goodyear Air Spring we have:


    Goodyear Air Spring OE NO.

    Goodyear Air Spring

    OE Bellows NO.

    Goodyear order NO.Bumper or notGoodyear Air Spring OE NO.
    1B8-564 Bellows Air Spring1B8-56420449825N1B8-564 Bellows Air Spring
    ENIDINE YI-1B8-5645799125640001920095534YENIDINE YI-1B8-564
    1B8-564 INTERNATIONAL 3547005C15799125640004220141113Y1B8-564 INTERNATIONAL 3547005C1
    1B8-5651B8-56520248442N1B8-565
    C 1B8-5605799125670009020810735YC 1B8-560
    P 1B8-5605799125680009120810607YP 1B8-560
    P 1B8-5505799125690009120811403YP 1B8-550
    C 1B8-5625799125700009020811604YC 1B8-562
    C 1B8-5645799125710009020811605YC 1B8-564
    C 1B8-8505799125720009020811606YC 1B8-850
    C 1B8-5505799126270009020806174YC 1B8-550
    1B5-8001B5-80020469101N1B5-800
    ENIDINE YI-1B5-8005799128000001920095537YENIDINE YI-1B5-800
    GOODYEAR 1B5-8015799128010000020607917YGOODYEAR 1B5-801
    ENIDINE YI-1B5-8015799128010001920095538YENIDINE YI-1B5-801
    1B5-8101B5-81020254245N1B5-810
    ENIDINE YI-1B5-8105799128100001920095539YENIDINE YI-1B5-810
    ENIDINE YI-1B5-8205799128200001920095540YENIDINE YI-1B5-820
    ENIDINE YI-1B5-8215799128210001920224307YENIDINE YI-1B5-821
    ENIDINE YI-1B6-8315799128310001920095541YENIDINE YI-1B6-831

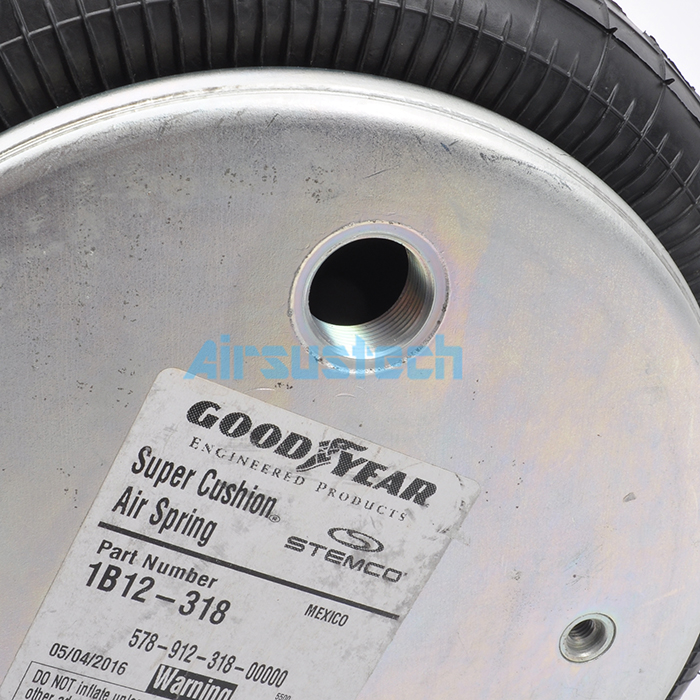

    The related picture of 1B12-318
