    Goodyear 1B8-850/579913530 Convoluted Air Spring Cross Contitech FS 120 10 CI G 1/4 Air Bags

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B8-850
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Goodyear 1B8-850/579913530 Convoluted Air Spring Cross Contitech FS 120 10 CI G 1/4 Air Bags

    Goodyear 1B8-850/579913530 Convoluted Air Spring Cross Contitech FS 120 10 CI G 1/4 Air Bags


    Refer No.


    Goodyear Part number:1B8-850,

    Goodyear Part number:1B8 850,

    Goodyear Part number:1B8850,

    Goodyear Bellows number:579-91-3-530

    Goodyear Bellows number:579 91 3 530

    Goodyear Bellows number:579913530


    Firestone Part number:W01-M58-6166

    Firestone Part number: W01M586166,

    Firestone Part number:W01-M58-6166

    Firestone Part number:W01-M58-6166,W01M586166,WO1-M58-6166,WO1M586166

    refet to Contitech Part number:FS 120-10 CI G 1/4;

    Contitech Part number:FS 120 10 CI G 1/4;

    Contitech Part number:FS120 10 CI G 1/4


    Specifications and Detailed Technical Parameters: Goodyear 1B8-850


    Force F [lbf]
    Pressure p [psi]406080100Vol. V [in.³]
    H 4.50 in./114.3MM728113015701970110
    H 4.00 in./101.6MM905140019402390100
    H 3.50 in./88.9MM105016102240274090
    H 3.00 in./76.2MM117017702450302075
    H 2.50 in./63.5MM127019002630326057


    Vibration isolation - dynamic characteristics

    Pressure p [psi]406080100120Vol. V [in.³]
    Force (load) F [lbf]8011,2401,7002,1302,530110
    Spring rate c [lbf/in]7099491,1901,4301,670110
    Natural Frequency f0 [Hz]2.92.82.72.62.6110
    Design height H: recommended 4.33 inch, minimum 3.54 inch

    Other Types Of Convoluted Goodyear Air Spring we have:


    Goodyear Air Spring OE NO.

    Goodyear Air Spring

    OE Bellows NO.

    Goodyear order NO.Bumper or notGoodyear Air Spring OE NO.
    1B8-564 Bellows Air Spring1B8-56420449825N1B8-564 Bellows Air Spring
    ENIDINE YI-1B8-5645799125640001920095534YENIDINE YI-1B8-564
    1B8-564 INTERNATIONAL 3547005C15799125640004220141113Y1B8-564 INTERNATIONAL 3547005C1
    1B8-5651B8-56520248442N1B8-565
    C 1B8-5605799125670009020810735YC 1B8-560
    P 1B8-5605799125680009120810607YP 1B8-560
    P 1B8-5505799125690009120811403YP 1B8-550
    C 1B8-5625799125700009020811604YC 1B8-562
    C 1B8-5645799125710009020811605YC 1B8-564
    C 1B8-8505799125720009020811606YC 1B8-850
    C 1B8-5505799126270009020806174YC 1B8-550
    1B5-8001B5-80020469101N1B5-800
    ENIDINE YI-1B5-8005799128000001920095537YENIDINE YI-1B5-800
    GOODYEAR 1B5-8015799128010000020607917YGOODYEAR 1B5-801
    ENIDINE YI-1B5-8015799128010001920095538YENIDINE YI-1B5-801
    1B5-8101B5-81020254245N1B5-810
    ENIDINE YI-1B5-8105799128100001920095539YENIDINE YI-1B5-810
    ENIDINE YI-1B5-8205799128200001920095540YENIDINE YI-1B5-820
    ENIDINE YI-1B5-8215799128210001920224307YENIDINE YI-1B5-821
    ENIDINE YI-1B6-8315799128310001920095541YENIDINE YI-1B6-831

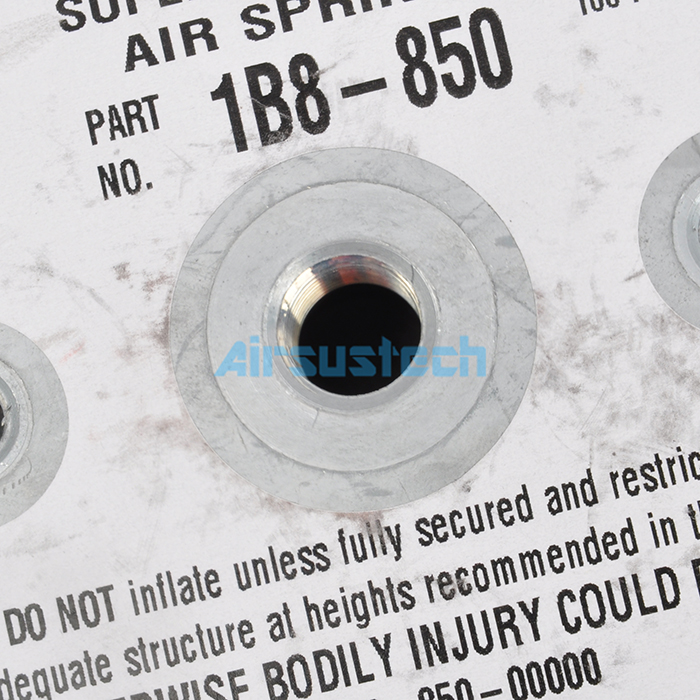

    The related picture of 1B8-850



    1400
    2450
    3260
