    260130H-1 One Single Industrial Air Springs With M10 Aluminum Alloy And Rubber Airbags

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 260130H-1
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    260130H-1 One Single Industrial Air Springs With M10 Aluminum Alloy And Rubber Airbags

    Aluminum Alloy And Rubber Airbags 260130H-1 one single Industrial Air Springs With M10

    Specifications and Detailed Technical Parameters: 260130H-1

    • Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 8×M10
    Bottom Cover Plate Screw (Nut) Tooth :8×M10

    • Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : G1/2

    • Cover Plate

    Top Cover Plate Diameter:210MM
    Bottom Cover Plate Diameter: 210MM

    • Rubber Bellows

    Rubber Bellows Natural Diameter : 260 mm
    Rubber Bellows Natural Diameter :130 mm

    • Bumper block / Buffer block

    Without Bumper Block

    • Girdle Hoop / Girdle Ring

    Without Girdle Hoop

    Other types:

    Model Size Nominal diameter The largest diameter(0.7MPA) Bearing capacity at design height Natural frequency(0.7MPA) Stroke Weight
    0.2MPA 0.5MPA 0.7MPA Minimum compression height Height of safe elongation
    086060H-1 50 110 44 123 175 5.18 42 90 1
    120060H-1 80 130 122 313 444 3.79 42 65 1.6
    150076H-1 104 160 164 435 621 3.5 46 85 1.4
    188102H-1A 120 210 208 587 862 3.05 52 115 2.25
    215120H-1 125 233 294 768 1109 2.83 42 140 2.9
    235118H-1 180 260 474 1185 1684 2.52 60 136 2.6
    235150H-1 180 260 441 1205 1740 2.29 65 172 3.1
    260135H-1 170 290 425 1150 1670 2.4 55 155 2.95
    280126H-1 195 300 643 1662 2370 2.46 50 144 3.75
    320124H-1 230 340 798 2071 2965 2.28 52 142 3.9
    130142H-2 80 150 80 219 314 3.12 72 162 4.4
    156130H-2 118 170 70 146 3.15
    160166H-2 100 175 149 413 593 2.3 82 190 2.35
    168132H-2 120 185 229 589 832 2.53 72 151 2.2
    200142H-2 150 220 326 843 1195 2.02 78 162 3.05
    220200H-2 148 250 354 920 1310 1.89 90 229 3.22
    230214H-2 150 255 388 1023 1457 1.93 88 246 4.05
    235152H-2 180 250 461 1180 1667 1.91 80 174 3.25
    235210H-2 180 250 80 245
    250180H-2 185 270 520 1345 1904 1.74 84 206 3.95
    252163H-2 192 275 422 1142 1644 1.73 82 238 4.2
    260230H-2 170 290 374 1036 1506 1.78 90 263 4.85
    280214H-2 200 305 668 1741 2480 1.68 88 246 5.57
    290265H-2 205 320 440 1250 1800 1.19 90 303 6.55
    300170H-2 240 320 849 2156 3045 1.74 85 195 5.35
    310214H-2 230 330 813 2078 2992 1.89 88 245 7
    330214H-2 250 355 1064 2749 3897 1.65 88 246 7.75
    330254H-2 230 355 861 2222 3166 1.75 88 290 7.24
    350255H-2 250 380 1095 2851 4098 1.45 90 295 8.2
    360214H-2 280 380 1250 3220 4570 1.36 88 246 7.9
    380221H-2 300 405 1432 3765 5352 1.34 90 255 8.5
    400217H-2 320 430 1753 4450 6300 1.66 90 249 11.1
    400255H-2 300 430 1465 3752 5256 1.55 90 295 10.4
    430255H-2 330 460 1760 4526 6427 1.43 90 295 10.2
    480217H-2 400 510 2723 6850 9700 1.27 88 249 13.8
    520217H-2 440 550 3070 7850 11094 1.41 90 249 14.5
    580214H-2 500 600 3978 10137 14293 1.65 88 246 13.3
    630262H-2 530 660 4371 10585 15801 1.48 90 300 19.9
    680262H-2 580 710 5278 13596 19313 1.35 90 302 18.6
    200206H-3 150 220 229 634 888 1.68 116 236 3.75
    250260H-3 185 270 507 1344 1924 1.7 116 299 5.5
    255230H-3 200 280 566 1460 2070 1.3 116 264 5.55
    255322H-3 200 290 116 400 5.85
    310306H-3 230 330 861 2239 3170 1.3 120 354 7.3
    330306H-3 250 355 1035 2730 3892 1.4 120 354 8.69
    360306H-3 280 380 1250 3220 4570 1.3 122 360 8.25
    380316H-3 300 405 1401 3672 5235 1.32 122 370 10.95
    400312H-3 320 430 1724 4436 6308 1.19 122 360 11.8
    430370H-3 330 460 1716 4435 6333 1.20 122 430 13.8
    480312H-3 400 510 2650 6883 9768 1.17 122 360 16.5
    520312H-3 400 550 3046 7932 11262 1.32 122 360 20.1
    580306H-3 500 600 3950 10181 14409 1.22 118 354 19.16
    630376H-3 530 660 4243 11045 45612 0.94 122 436 24.1
    680376H-3 580 710 5259 13620 19339 1.27 122 436 27.6

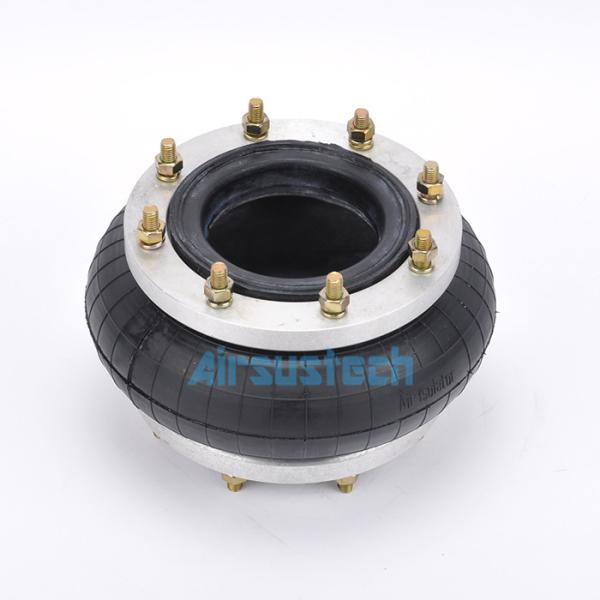

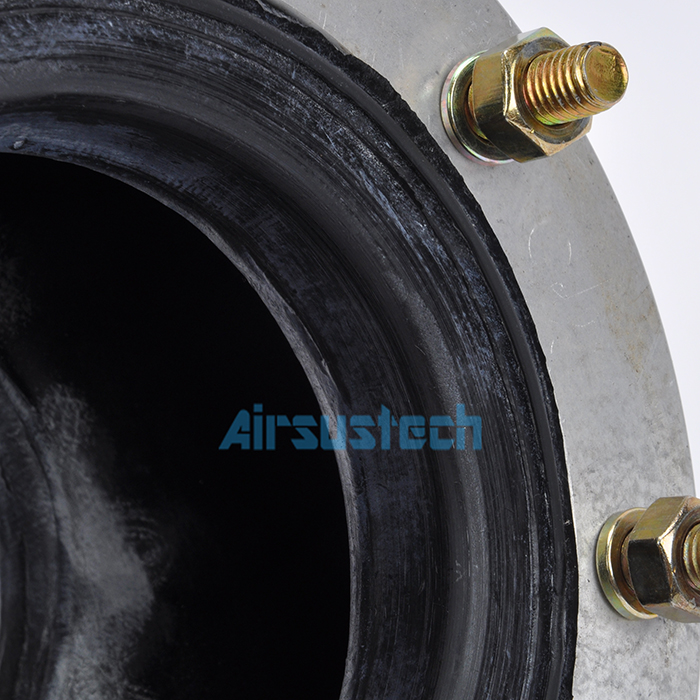

    The related picture of 260130H-1

    260130H-1 One Single Industrial Air Springs With M10 Aluminum Alloy And Rubber Airbags

    260130H-1 One Single Industrial Air Springs With M10 Aluminum Alloy And Rubber Airbags
