    3B7808 Industrial Air Springs Triple Convoluted Rubber Shocks Replace For Firestone W01-358-7808

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B7808
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    3B7808 Industrial Air Springs Triple Convoluted Rubber Shocks Replace For Firestone W01-358-7808

    3B7808 Industrial Air Springs Triple Convoluted Rubber Shocks Replace For Firestone W01-358-7808


    Refer NO.


    Cross Reference No.OEM No.

    CONTITECH FT 530-32 336

    CONTITECH FT 530 32 336

    CONTITECH FT 530 32 329

    Hendrickson : S13157

    Dayton : 3547808

    Leland : Sc2031

    FIRESTONE W01-358-7808

    FIRESTONE W01 358 7808

    FIRESTONE W013587808

    FIRESTONE W01-358-7798

    FIRESTONE W01 358 7798

    FIRESTONE W013587798

    FIRESTONE FLEX 313D

    Triangle : 6319

    Triangle : 4336

    GOODYEAR 3B14-356

    GOODYEAR 3B14 356

    GOODYEAR 3B14-350/354

    GOODYEAR 3B14 350/354

    GOODYEAR FLEX 578-93-3-350

    GOODYEAR FLEX 578 93 3 350

    GOODYEAR FLEX 578933350

    Navistar : 554801C1

    EI Ride : 8030170

    SAF Holland : 57007808

    Airkraft : 115061/3B-356

    Truck stell : 63640

    Brake & Wheel : M3533

    Ridewell : 1003587808C

    Peerless : 55000030


    Specifications and Detailed Technical Parameters: 3B7808

    • Nut/blind nut

    Top plate screw (nut) teeth: 4×3//8-16UNC

    Bottom cover plate screw (nut) teeth: 4×3//8-16UNC

    Screw Center Distance: 158.8mm


    • Air hole/air inlet/air fittings

    Air hole/air inlet: 1/4NPT

    • Rubber Bellows

    Top plate diameter (width): 289mm

    Diameter (width) of the bottom cover plate: 289mm

    Rubber Bellows MAX Diameter: 356 mm

    The Working Stroke : 282mm

    • Bumper block/bumper block

    With bumper block

    • Belt loop/Belt loop

    With belt loop: Two belt loop


    Other types:


    AIRSUSTECH No.Contitech No.Firestone No.Goodyear No.
    3B7996FT330-29 520W01-358-79963B12-335
    3B7994FT330-29 546W01-358-79943B12-328/556-33-8-334
    3B7995FT330-29 547/64573W01-358-79953B12-329/556-33-8-334
    3B8008
    FT330-29 431W01-358-80083B12-300/556-33-8-334/578-93-3-100
    3B8010FT330-29 432W01-358-80103B12-301/556-33-8-334/578-93-3-100
    3B8027FT330-29 466W01-358-8027/38/W01-358-80293B12-310/556-33-8-334/578-93-3-100
    3B8030FT330-29 498W01-358-8030/383B12-304/556-33-8-334/578-93-3-100
    3B8006FT 330-29 430W01 358 8006/FLEX 38R/38D3B12-301/578-93-3-100
    3B6383-38FT 530-30//
    3B6386FT 530-30//
    3B7800FT 530-32 333/FT 530-32 325W01-358-7800/W01-358-78183B14-360/3B14-359/FLEX 578-93-3-350
    3B53032
    FT 530-32 -60717

    FLEX 313D

    FLEX 578-93-3-350

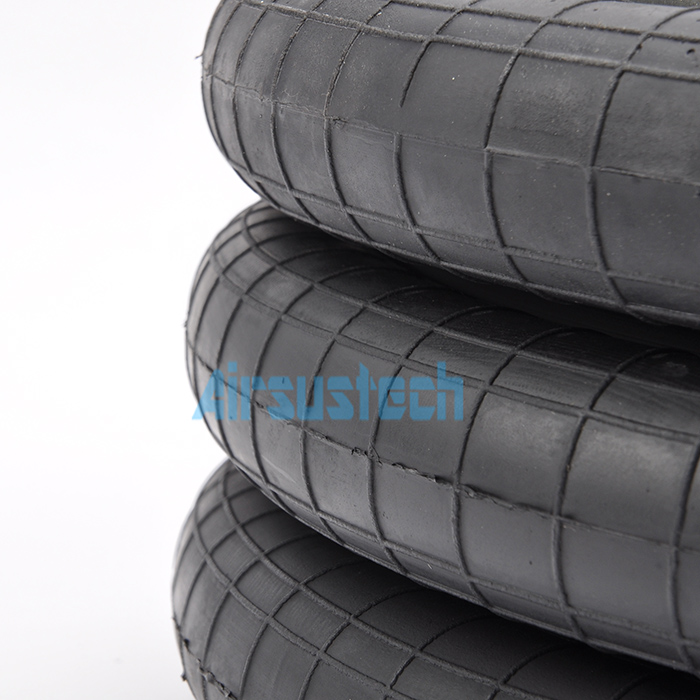

    The related picture of 3B7808
