Industrial Air Springs Firestone W01-358-8010 Triple Convoluted Bags With 1/4 NPT Gas Filled

Refer NO.

Specifications and Detailed Technical Parameters: 3B8010

• Nut/blind nut

Top plate screw (nut) teeth: 2×3/8-16UNC

Bottom cover plate screw (nut) teeth: 2×3/8-16UNC

The screw center distance of the Top cover plate: 157.5 mm

The screw center distance of the bottom cover plate: 157.5 mm

• Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF

• Rubber Bellows

Top plate diameter (width): 231 mm

Diameter (width) of the bottom cover plate: 231 mm

Rubber Bellows MAX Diameter: 295mm

The Working Stroke: 297mm

• Bumper block/bumper block

Without bumper block

• Belt loop/Belt loop

With belt loop: Two belt loop

Min. pressure: 0 bar

Return force to min.height: ≤400N

Overall weight with clamped plates: 5.9kg

Pneumatic application-static characteristic values

Force F[KN]

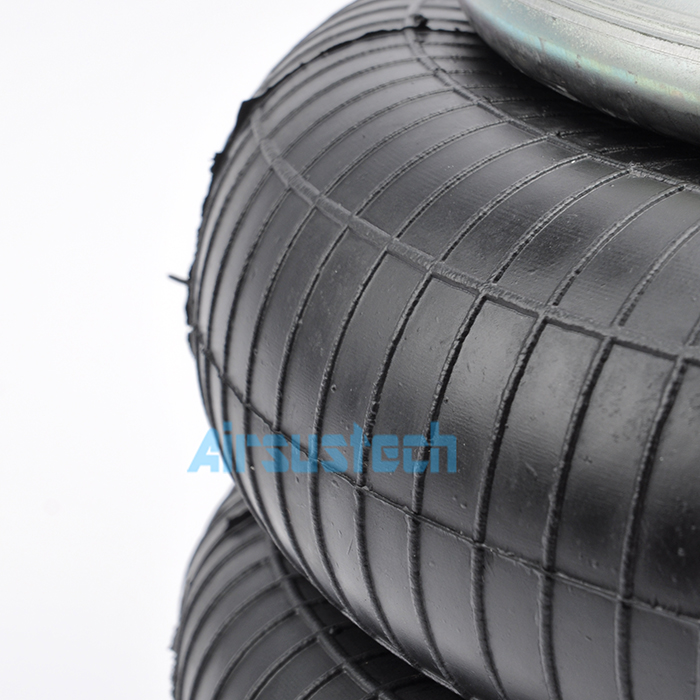

The related picture of 3B8010

The Application of Air Spring

Air Bag 3B7994 can replace W01-358-7994/W01 358 7994/W013587994/WO1-358-7994/WO1 358 7994/WO13587994.

- rubber air spring is mainly used in the papermaking machinery industry, for the corrector, calender, squeezing, scraper, network department, and other parts for stroke control and tension control;

- It is also used in cars, trains, construction, chemical industry, mechanism, installation, and military, etc all need shock absorption and isolation and schedule control.

- Used in the field of vehicle suspension system, which can achieve automatic adjustment of body height, so that the height of the body remains unchanged;

- As the lifting element of lifting equipment. If do that, it will overcome the traditional shortcomings of lifting equipment, no need to carry out maintenance, long service life, convenient operation and replacement.
