    Rubber Double Convoluted Air Spring Shocks Flange Air Bags Norgren PM/31062

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : PM/31062
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Rubber Double Convoluted Air Spring Shocks Flange Air Bags Norgren PM/31062

    Flange Air Bags Norgren PM/31062 Rubber Double Convoluted Air Spring Shocks


    OEM NO.


    NorgrenPM/31062
    NorgrenPM 31062
    NorgrenPM31062
    FirestoneW01-R58-4070 - (6 x 2 Alu )

    Firestone

    W01 R58 4070 - (6 x 2 Alu )
    FirestoneW01R584070 (6 x 2 Alu )
    Dunlop Part NO.:6"x2

    NorgrenPM/31062

    NorgrenPM 31062

    NorgrenPM31062

    FirestoneW01-R58-4070 - (6 x 2 Alu )

    Dunlop Part NO.6"x2


    Specifications and Detailed Technical Parameters: Norgren PM/31062

    • Nut/blind nut

    Top plate screw (nut) teeth: 4×M8
    Screw (nut) teeth of the bottom cover plate:
    4×M8

    • Air hole/air inlet/air fittings

    Air hole/air inlet: G1/2


    • Rubber Bellows

    Top plate diameter (width): 153.5 mm

    Diameter (width) of the bottom cover plate: 153.5 mm

    Material top and bottom plate: aluminum

    Bell rubber bellows
    Maximum diameter at 7 bar: 178mm

    Rubber bellows stroke: 80mm-195m

    • Bumper block/bumper block

    Without bumper block

    • Belt loop/Belt loop

    With belt loop: One belt loop


    TypeOrder No.
    CR Rubber bellows only6×2
    with aluminum plates, G1/2 air inletPM/31062

    Min. pressure: 0 bar

    Return force to min.height: ≤180N

    Overall weight with clamped plates: 1.8kg


    Vibration isloation-dynamic characteristic values
    Design height H: recommended 160mm, minimum 150mm

    Pressure p [bar]345678Vol. V [l]
    Force (Load) [KN]2.63.54.55.56.57.62.0
    Spring rate [N/cm]6758551035121513951570
    Natural frequency [Hz]2.52.42.42.32.32.3

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]1602.63.54.55.56.57.62.0
    1403.34.55.66.88.19.31.7
    1203.95.26.68.09.410.81.5
    1004.66.27.89.411.112.81.2

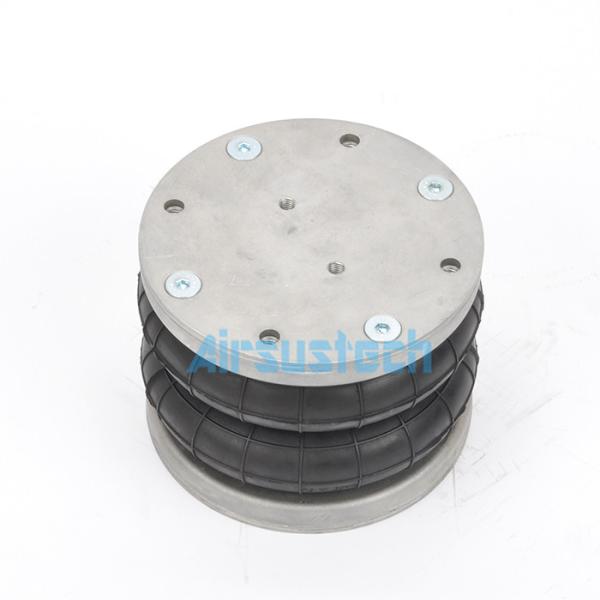

    The related picture of PM/31062



    Other types:

    PM31021 PM/31021

    PM31022 PM/31022

    PM31023 PM/31023

    PM31041 PM/31041

    PM31042 PM/31042

    PM31043 PM/31043

    PM31061 PM/31061

    PM31062 PM/31062

    PM31063 PM/31063

    PM31081 PM/31081

    PM31082 PM/31082

    PM31091 PM/31091

    PM31092 PM/31092

    PM31121 PM/31121

    PM31122 PM/31122

    PM31123 PM/31123
