    Rubber 2 Convoluted Air Spring Shocks Goodyear 2B12-313/459/578923309

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B7405
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Rubber 2 Convoluted Air Spring Shocks Goodyear 2B12-313/459/578923309

    Goodyear 2B12-313/459/578923309 Rubber Double Convoluted Air Spring Shocks


    OEM NO.


    Firestone

    W01-358-7405

    Firestone

    WO13587405

    Firestone

    WO1-358-7405

    Firestone

    W013587405

    FIRESTONEW01-358-7405
    FIRESTONE

    WO13587405

    FIRESTONE

    WO1-358-7405

    FIRESTONE

    W013587405

    Goodyear2B12-313
    Goodyear2B12 313
    Goodyear2B12313
    Goodyear2B12-459
    Goodyear2B12 459
    Goodyear2B12459
    Goodyear578 9 23 309
    Goodyear578923309
    ContitechFD330-22 364
    ContitechFD330 22 364
    ContitechFD 330-22 364
    ContitechFD 330 22 364
    Triangle6316
    Triangle4364
    Arvin Meritor200981
    Daylon3547405
    LelandSc2073
    HutchensH-10384-01
    SAF Holland57007405
    Suspensions lnc.

    Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6945

    • Nut/blind nut

    Top plate screw (nut) teeth: 1/2-13UNC
    The screw center distance of the top cover plate: 140mm
    Screw (nut) teeth of the bottom cover plate:
    2X1/2-13UNC
    The screw center distance of the bottom cover plate: 157 mm

    • Air hole/air inlet/air fittings

    Air hole/air inlet: 1/4-18NPTF

    The screw center distance between the air hole and the nut: 140mm

    Air Inlet Combine With One Nut

    • Cover plate

    Top plate diameter: 231 mm

    Diameter of the bottom cover: 231mm

    • Rubber Bellows

    Rubber Bellows MAX Diameter : 325 mm / 12.9 inches

    Compressed Height: 81 mm / 4.12 inches

    Minimum Jounce Height: 81mm / 4.12 inches

    Maximum Height: 305 mm / 12 inches

    Working Stroke : 224 mm / 8.8 inches

    • Bumper block/bumper block

    Without bumper block

    • Belt loop/Belt loop

    With belt loop: One belt loop


    Min. pressure: 0 bar

    Return force to min.height: ≤300N

    Overall weight with clamped plates: 5.1kg


    Vibration isloation-dynamic characteristic values
    Design height H: recommended 220mm, minimum 205mm

    Pressure p [bar]345678Vol. V [l]
    Force (Load) [KN]10.013.316.720.624.127.612.0
    Spring rate [N/cm]159019002210252028303140
    Natural frequency [Hz]2.01.91.81.81.71.7

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]3009.813.116.720.324.027.714.0
    26012.516.721.025.429.934.513.0
    22014.619.424.429.434.539.611.6
    18016.221.627.032.538.243.89.9
    14017.623.429.335.241.347.27.8
    10018.324.430.336.342.448.55.5

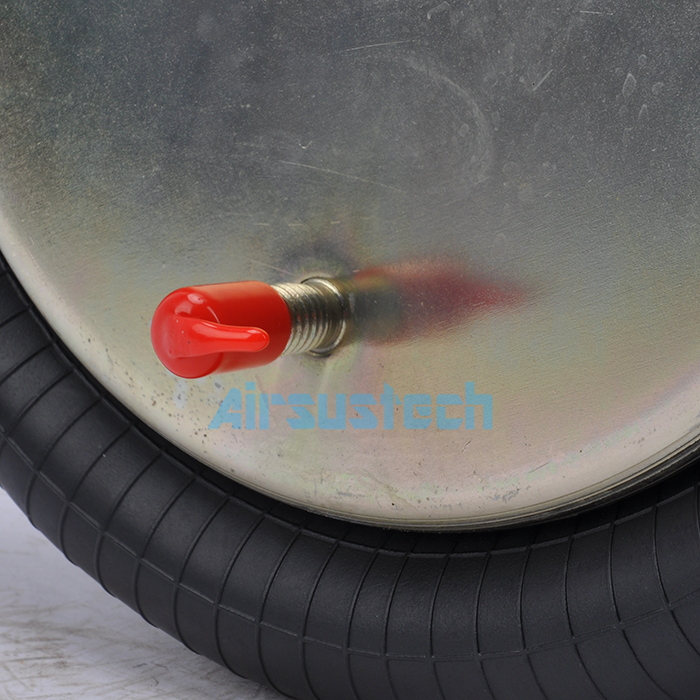

    The related picture of 2B7405
