    TS16949 Air Spring Bellows 2B6926 Replace For W01-358-6926

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6926
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    TS16949 Air Spring Bellows 2B6926 Replace For W01-358-6926

    Double Rubber Convoluted Air Bags 2B6926 Replace For W01-358-6926 Air Spring Bellows


    OEM NO.


    Firestone

    W01-358-6926

    Firestone

    WO13586926

    Firestone

    WO1-358-6926

    Firestone

    W013586926

    FIRESTONEW01-358-6926
    FIRESTONE

    WO13586926

    FIRESTONE

    WO1-358-6926

    FIRESTONE

    W013586926

    ContitechFD 200-19 504
    ContitechFD 200 19 504
    ContitechFD200-19 504
    ContitechFD 200 19 504
    ContitechFD20019504
    Contitech161299
    Triangle6325
    Triangle4504
    RR LoadLS20

    Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6926

    • Nut/blind nut

    Top plate screw (nut) teeth:2X3/8-16UNC

    The screw center distance of the top cover plate: 89mm

    Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC

    The screw center distance of the bottom cover plate: 89 mm

    • Air hole/air inlet/air fittings

    Air hole/air inlet: 1/4NPTF

    The screw center distance between the air hole and the nut: 38mm

    • Cover plate

    Top plate diameter: 160 mm

    Diameter of the bottom cover: 160mm

    • Bell rubber bellows

    Rubber bellows diameter: 224mm(MAX251)

    The Maximum Height: 274mm

    The Minimum Height: 95 mm

    • Bumper block/bumper block

    With bumper block

    • Belt loop/Belt loop

    With belt loop: One belt loop


    Min. pressure: 0bar

    Return force to min.height: ≤200N

    Overall weight with clamped plates: 3.2kg


    Vibration isloation-dynamic characteristic values
    Design height H: recommended 220mm, minimum 205mm

    Pressure p [bar]345678Vol. V [l]
    Force (Load) [KN]6.18.210.312.514.516.56.0
    Spring rate [N/cm]7509601110134015101730
    Natural frequency [Hz]1.81.71.71.61.61.6

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]2504.96.68.29.511.713.46.5
    2106.78.811.013.315.517.65.8
    1707.910.513.115.718.320.74.9
    1309.112.015.017.820.723.44.0
    909.913.216.619.823.025.82.9

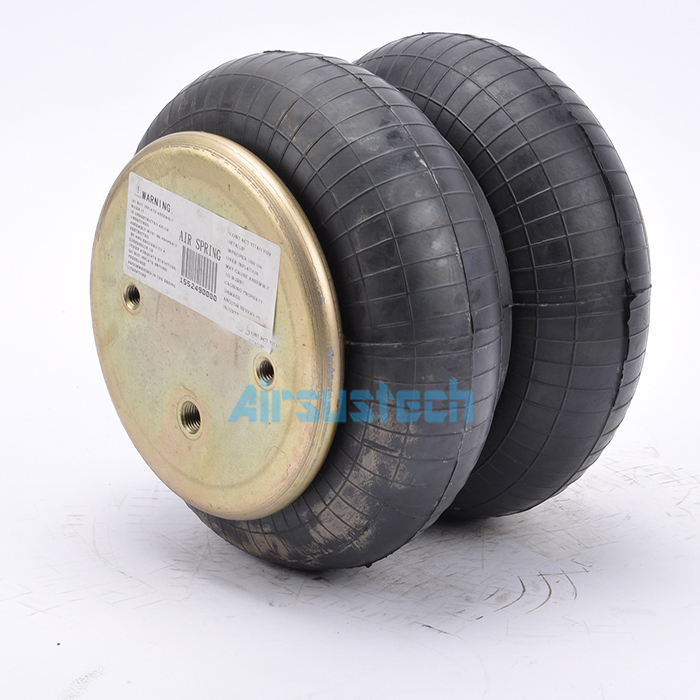

    The related picture of 2B6926



    The air spring composition


    Upper plate: Upper plate is to withstand pressure and seal the air inside
    Waist ring: A stable part of the skin to prevent deformation
    Connotation screw hole: Fixed in an automobile or equipment as an air spring for installation and inflation
    Hole/air inlet: Used to inflate air springs by filling air pores
    Flexible bellows: the main part, can lock air and move up and down flexibly
    Rubber buffer (optional) : to prevent the collision between the upper and lower plates of the air spring and the bottom plate, optional or not
    Screw hole connotation: fixed for the installation of air spring in the car or equipment
    Lower plate: The lower plate bears pressure and seals the air inside
