    Rear Air Spring Bellows 2B6927 Replace For W01-358-6927 Two Convoluted Air Bags

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6927
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Rear Air Spring Bellows 2B6927 Replace For W01-358-6927 Two Convoluted Air Bags

    Double Rubber Convoluted Air Bags 2B6927 Replace For W01-358-6927 Air Spring Bellows


    OEM NO.


    Firestone

    W01-358-6927

    Firestone

    WO13586927

    Firestone

    WO1-358-6927

    Firestone

    W013586927

    FIRESTONEW01-358-6927
    FIRESTONE

    WO13586927

    FIRESTONE

    WO1-358-6927

    FIRESTONE

    W013586927

    ContitechFD 200-25 453
    ContitechFD 200 25 453
    ContitechFD200-25 453
    ContitechFD 200 25 453
    ContitechFD20025453
    Contitech161366
    Triangle6332
    Triangle4453
    Goodyear2B9-218
    Goodyear2B9 218
    Goodyear578923206/2
    Reyco12906-01
    Reyco12906 01
    LelandSc2072
    SAF Holland57006927
    Tuthill Technology1290601

    Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6927

    • Nut/blind nut

    Top plate screw (nut) teeth: 1X3/4-16UNF
    The screw center distance of the top cover plate: In the middle
    Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC

    The screw center distance of the bottom cover plate: 89 mm

    • Air hole/air inlet/air fittings

    Air hole/air inlet: 1/4NPTF

    The screw center distance between the air hole and the nut: 35mm

    • Cover plate

    Top plate diameter: 160 mm

    Diameter of the bottom cover: 160mm

    • Bell rubber bellows

    Maximum diameter of rubber bellows: 262 mm
    Natural diameter of rubber bellows:240 mm
    Working stroke: minimum 81 mm to maximum 325 mm
    Maximum height: 325mm
    Minimum height: 81 mm
    Stroke height: 244mm

    • Bumper block/bumper block

    Without bumper block

    • Belt loop/Belt loop

    With belt loop: One belt loop


    Min. pressure: 0bar

    Return force to min.height: ≤250N

    Overall weight with clamped plates: 3.5kg


    Vibration isloation-dynamic characteristic values
    Design height H: recommended 254mm, minimum 230mm

    Pressure p [bar]345678Vol. V [l]
    Force (Load) [KN]6.08.110.212.314.416.58.6
    Spring rate [N/cm]7309301200139016601840
    Natural frequency [Hz]1.81.81.71.71.71.7

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]2904.15.67.39.010.512.49.4
    2605.67.39.411.313.415.48.9
    2306.68.811.113.415.818.18.4
    2007.59.912.515.017.620.27.7
    1708.311.013.816.619.422.27.0
    1408.911.814.817.720.723.66.1
    1109.312.315.618.721.924.65.1

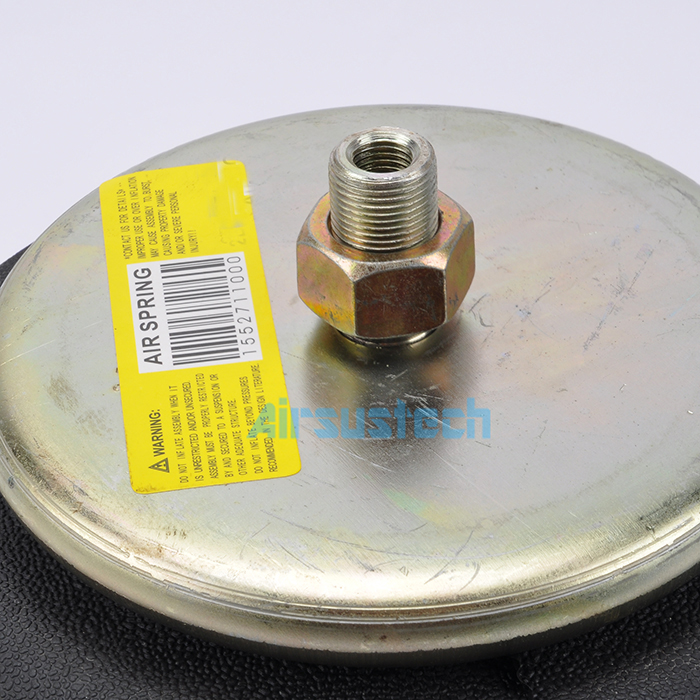

    The related picture of 2B6927
