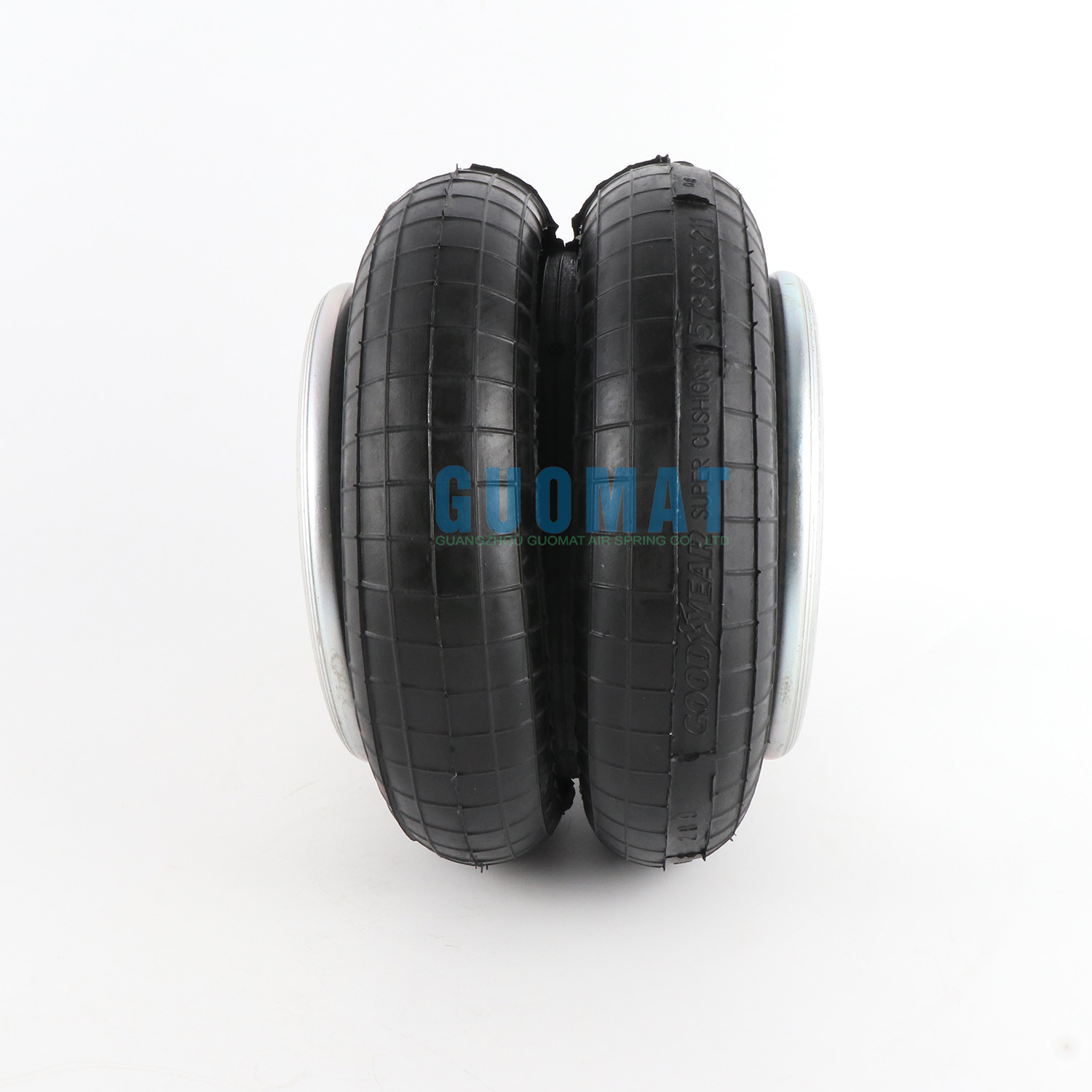

    2B9-223 Goodyear Air Spring Replaces 2B9-2250 Contitech FD 200-19 1/4 M10

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 2B9-223
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    2B9-223 Goodyear Air Spring Replaces 2B9-2250 Contitech FD 200-19 1/4 M10

    Goodyear Air Spring 2B9-223 Replaces 2B9-2250 Contitech FD 200-19 1/4 M10 For MERITOR

    Goodyear 2B9-223 OEM Cross:

    Goodyear Part Number : 2B9-223

    Goodyear Part Number : 2B9 223

    Goodyear Part Number : 2B9223

    Goodyear Part Number : 2B9-2250

    Goodyear Part Number : 2B9 2250

    Goodyear Part Number : 2B92250

    Springride Part Number : S09201NB

    Goodyear FLEXIBLE MEMBER 578-92-3-211

    Goodyear FLEXIBLE MEMBER 578 92 3 211

    Goodyear FLEXIBLE MEMBER 578923211

    MERITOR (ROR) 21221395

    MERITOR (ROR) 21222663

    WEWELER US 06910F

    Contitech Part Number : FD 200-19 1/4 M10
    Contitech Part Number : FD200-19 1/4 M10

    Contitech Part Number : FD 200 19 1/4 M10

    Firestone Part Number : W01 M58 6887

    Firestone Part Number : W01M586887

    Firestone Part Number : W01-M58-6887

    Firestone Bellows Number : 20
    CF Gomma Part Number : 206797 20

    Vibracoustic Part Number :V SP 2 B 12 R-10

    Vibracoustic Part Number :VSP2B12R-10

    Phoenix Part Number : SP 2 B 12 R-10

    Phoenix Part Number : SP2B12R-10

    Goodyear 2B9-223 Technical parameters

    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2 pcs X M10

    Screw Center Distance of Top Cover Plate : 89 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10

    Screw Center Distance of Bottom Cover Plate : 89 mm

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4

    Screw Center Distance Between Gas Hole and Nut : 44.5 mm

    Cover Plate

    Top Cover Plate Diameter: 162.5 mm

    Bottom Cover Plate Diameter: 162.5 mm

    Rubber Bellows

    Rubber Bellows MAX Diameter: 251 mm

    Rubber Bellows Natural Diameter : 224 mm

    The Working Stroke : MIN 75 mm to MAX 260 mm

    Maximum Height : 260 mm

    Minimum Height :75mm

    Stroke Height : 285 mm

    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop

    Goodyear 2B9-223 Cross others OEM

    OEM

    MERITOR (ROR)21221395 21222663

    WEWELER US 06910F

    COMPETITOR

    Contitech
    FD 200-19 1/4 M10

    Firestone

    W01 M58 6887 20
    CF Gomma 206797 20

    Vibracoustic

    V SP 2 B 12 R-10

    Phoenix

    SP 2 B 12 R-10

    The drawing of Goodyear Air Spring 2B9-223:

    2B9-223 Goodyear Air Spring Replaces 2B9-2250 Contitech FD 200-19 1/4 M10

    2B9-223 Goodyear Air Spring Replaces 2B9-2250 Contitech FD 200-19 1/4 M102B9-223 Goodyear Air Spring Replaces 2B9-2250 Contitech FD 200-19 1/4 M10

    Other kind of goodyear air springs:

    57892222300000 20067192 N 2B9-223 METRIC 2B9-223 METRIC
    57892222400000 20094430 Y 2B9-224 2B9-224
    57892222500000 20035783 Y 2B9-225 2B9-225
    2B9-225 20094432 N 2B9-225 Bellows Air Spring 2B9-225 Bellows Air Spring
    57892222500019 20248277 Y ENIDINE 2B9-225 ENIDINE 2B9-225
    57892222500029 20251574 Y 2B9-225 VIBRATECH 2B9-225 VIBRATECH
    57892222500073 20131791 Y 2B9-225 NATIONAL STEEL 70604703 2B9-225 NATIONAL STEEL 70604703
    57892222500074 20140152 Y 2B9-225 TTX 1999408 2B9-225 TTX 1999408
    2B10-226 20094435 N 2B10-226 Bellows Air Spring 2B10-226 Bellows Air Spring
    57892222800000 20094438 Y 2B9-228 2B9-228
    57892222900000 20094439 Y 2B9-229 2B9-229
    2B9-229 20067578 N 2B9-229 Bellows Air Spring 2B9-229 Bellows Air Spring
    57892222900077 20215645 Y 2B9-229 WATSON & CHALIN AS0058 2B9-229 WATSON & CHALIN AS0058
    57892222930000 20094444 Y 2B9-229 2B9-229
    2B9-230 20067579 N 2B9-230 Bellows Air Spring 2B9-230 Bellows Air Spring
    57892223400000 20067736 Y 2B9-234 METRIC 2B9-234 METRIC
    57892223500000 20094446 Y 2B9-235 METRIC 2B9-235 METRIC
    57892223500019 20094447 Y ENIDINE YI-2B9-235 METRIC ENIDINE YI-2B9-235 METRIC
    57892223800000 20106791 Y 2B9-238 2B9-238
    2B9-238 20110594 N 2B9-238 2B9-238
    57892223900000 20106792 Y 2B9-239 2B9-239
    2B9-239 20110595 N 2B9-239 Bellows Air Spring 2B9-239 Bellows Air Spring
    57892224000000 20035767 Y 2B9-240 KIT 2B9-240 KIT
    2B9-240 20094448 N 2B9-240 Bellows Air Spring 2B9-240 Bellows Air Spring
    57892224100000 20106793 Y 2B9-241 2B9-241
    57892224200000 20106794 Y 2B9-242 2B9-242
    2B9-242 20110597 N 2B9-242 2B9-242
    57892224300000 20106795 Y 2B9-243 2B9-243
    2B9-243 20110599 N 2B9-243 2B9-243
    57892224400000 20113666 Y 2B9-244 2B9-244
    2B9-244 20113667 N 2B9-244 Bellows Air Spring 2B9-244 Bellows Air Spring
    57892224500000 20119614 Y 2B9-245 2B9-245
    2B9-245 20113706 N 2B9-245 Bellows Air Spring 2B9-245 Bellows Air Spring
    57892224600000 20139383 Y 2B9-246 2B9-246
