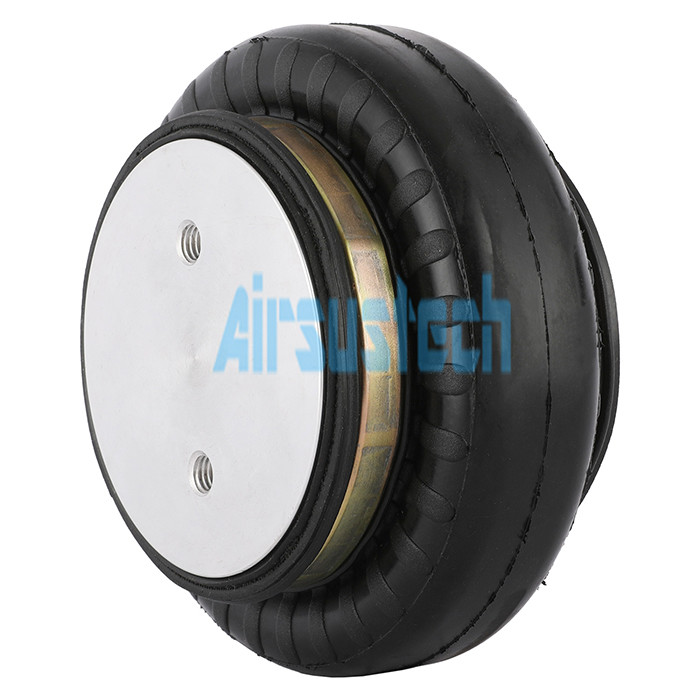

Goodyear Air Spring 1B5-500 Suspension Single Convoluted 1K130070 For Automatic Screening Machine

AIRSUSTECH 1K130070 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH Part Number:1K130070

AIRSUSTECH Bellows Number:1K130

Goodyear Part Number: 1B5-500

Goodyear: 1B5-500

Goodyear Part Number: 1B5 500

Goodyear: 1B5 500

Goodyear Part Number: 1B5500

Goodyear: 1B5500

Goodyear Bellows Number: 1B5 579-913-500

Goodyear Bellows Number: 1B5 579913500

Goodyear Bellows Number: 1B5 579 913 500

Goodyear Bellows Number: 579-913-500

Goodyear Bellows Number: 579 913 500

Goodyear Bellows Number: 579913500

Weight and packing of AIRSUSTECH 1K130070:

Net Weight:1.0 KG

Gross Weight:1.3 KG

Package Size:160mm*160mm*160mm

Compressed height:55mm

Maximum Height:90mm

Full stroke:35mm

Working medium:water, air

Working pressure:< 0.7Mpa

Burst pressure:> 1.6Mpa

Endurance cycle:> 10"

Temperature:-35℃ ~+60℃

Quick details:

❶Nuts/blind nuts
Number of top plate screws: 2
Number of bottom cover screws: 2
Nut distance: 44.5 mm
Nut screw: M8
❷Air hole/air inlet/air fittings
Air hole/air inlet: G1 / 4
❸Cover plate
Top plate diameter: 85 mm
Diameter of the bottom cover: 85 mm
❹Rubber bellows
Straight diameter of rubber bellows: 130 mm
In 0.7 pa, rubber bellows diameter: 150 mm
Working stroke: minimum 50 mm to maximum 100 mm
Design height of rubber bellows: 70 mm
❺Bumper block/bumper block
No bumper block
❻Belt loop/Belt loop
Without belt loop

vibrating screen

The vibrating screen divides the crushed and bulk materials with different particle sizes through the single-layer or multi-layer screen surfaces with uniform holes for many times and divides them into several different levels. The process is called screening. It is characterized by strong exciting force, simple structure, convenient and quick maintenance: high screening efficiency, large processing capacity, long life, low power consumption and low noise.

Linear vibrating screen

The linear vibrating screen is driven by double exciters. When the two exciters are rotated synchronously and in opposite directions, the exciting force generated by the eccentric block cancels each other in the direction parallel to the motor axis, and in the direction perpendicular to the motor axis. The directions are superimposed as a resultant force. It has the characteristics of low energy consumption, high efficiency, simple structure, easy maintenance, and fully enclosed structure without dust spillage.

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
