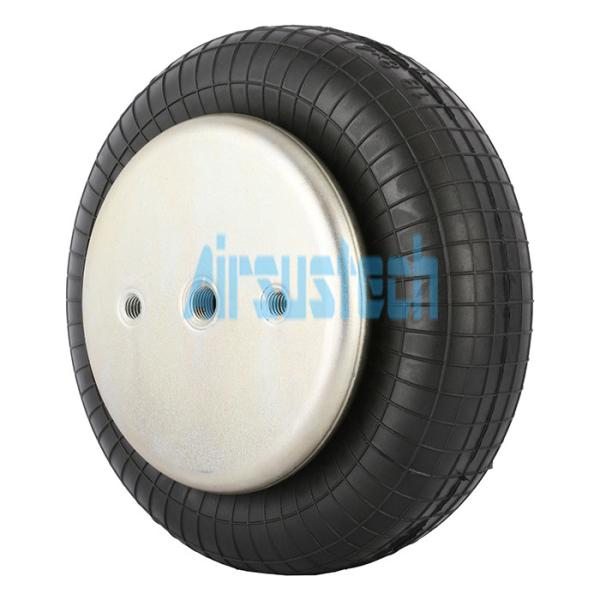

    Goodyear 1B8-550 Rubber Air Spring Shocks 579-91-3-532 For Core Straightener

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B8X4
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    Goodyear 1B8-550 Rubber Air Spring Shocks 579-91-3-532 For Core Straightener

    Goodyear 1B8-550 Rubber Air Spring Shocks 579-91-3-532 For CORE STRAIGHTENER


    Product Description


    Technical Data

    • Min. pressure - 0 psi
    • Return force to min. height - <45LBF/200N
    • Overall Weight - 2.4KG
    • Min. Design Height - 50MM
    • Inst.Space Required - 140MM
    • Max. Stroke - 90MM

    OEM Original Equipment Manufacturer:FS 120-10 CI


    AIRSUSTECH:1B8X4

    Firestone : W01-358-7564

    Goodyear:1B8-550

    Contitech:FS120-10

    Firestone : W013587564

    Goodyear:1B8550

    Contitech:FS12010

    Firestone : W01 358 7564

    Goodyear:1B8 550

    Contitech:FS120 10


    Firestone Part Number: W01-358-7564

    Goodyear Part Number:1B8-550

    Contitech Part Number:FS120-10


    Firestone Part Number: W013587564

    Goodyear Part Number:1B8550

    Contitech Part Number:FS12010


    Firestone Part Number: W01 358 7564

    Goodyear Part Number:1B8 550

    Contitech Part Number:FS120 10


    Technical performance parameter list of AIRSUSTECH 1B8X4 air spring:
    Bearing
    load
    Power
    (kg)
    Inflation pressure0.2MPa0.3MPa0.4MPa0.5MPa0.6MPa0.7MPa0.8MPa0.7MPa
    Volume(dm³)
    Installation height
    55(mm)43366489711311354158518221.11
    78(mm)39659880310151236144116471.34
    101(mm)314471646820996117513211.47
    124(mm)2083184345556757989201.79
    130(mm)1672583484385356367331.86
    147(mm)56961331792262743312.04
    149(mm)194164931261642082.08
    155(mm)210204151801002.15
    Stiffness and frequency at design heightVertical stiffness(Kg/cm)132170182203230268285
    Stiffness and frequency at design heightNatural frequency Hz4.454.063.623.43.283.253.12
    Stiffness and frequency at design heightNatural frequency cpm267244217204197195187

    PURCHASE ORDER DATA


    TypeAir InletOrder No.
    with crimped plates

    1/4 NPT

    0 in. excentrical


    Goodyear 1B8-550 Rubber Air Spring Shocks 579-91-3-532 For Core Straightener


    AIRSUSTECH 1B8X4 air spring is used in CORE STRAIGHTENER:


    1B8X4 air spring can be used in CORE STRAIGHTENER:

    The stretch-bending straightener is a new type of straightening equipment developed recently, which combines the advantages of a roll-type straightener and a stretch-straightening machine. stretch
    The bending straightening machine consists of a straightening machine working stand, a bending roll group, a straightening roll group, a tension roll group and other structures. It can eliminate the buckling and edge waves of the strip
    Three-dimensional shape defects such as shape and camber. After the on-site installation and use of the tension leveler, the straightness of the strip is increased from the original 15I to 41, and the plate shape quality is improved.
    marked improvement.
