    W01-358-7431 Firestone Air Spring With Countersunk Steel Bead Rings W01-358-0226 Rubber Bellows

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2H7431
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    W01-358-7431 Firestone Air Spring With Countersunk Steel Bead Rings W01-358-0226 Rubber Bellows

    Firestone Air Spring W01-358-7431 With Countersunk Steel Bead Rings W01-358-0226 Rubber bellows only

    Technical Parameters of 2H7431

    Maximum Diameter @ 7 Bar (mm)328
    Maximum height (mm)76
    Maximum stroke (mm)180
    Minimum usable height (mm)257
    Force at 25 mm stroke in kN @ 5 Bar29
    Force at 50% stroke of maximum stroke in kN @ 5 Bar25.1
    Force at maximum stroke stroke in kN @ 5 Bar14.9
    Style Cross Reference High Strength Style Numbering210
    Style Cross Reference Extended Height (Like End Closed) Style Number22-1.5
    Material2-layer standard wire

    Top Cover Plate Diameter 250mm
    Bottom Cover Plate Diameter 250mm
    Screw Center Distance 229mm
    Distance Gas Hole Between Nut 73 mm
    Gas Hole :without
    Screw (Nut) Tooth 3/8-16 BLIND NUTS
    Rubber Bellows MAX diameter 325 mm
    The Stroke 81-305 mm

    Design Height (mm)241
    Load (at design height): 3 Bar (kN)10
    Load (at design height): 5 Bar (kN)17.1
    Load (at design height): 7 Bar (kN)24.2
    Natural Frequency (@5 Bar)(fn(Hz)1.8
    Isolation percentage at forced frequency 7 Hz92.1
    Isolation percentage at forced frequency 13 Hz98.2
    Isolation percentage at forced frequency 25 Hz99.5


    OEM Original Equipment Manufacturer:

    BELLOW NO.COMPLETE NO.COMPLETE NO.
    AIRKRAFT 114301AIRKRAFT 113333AIRKRAFT 113491
    FIRESTONE FLEX 22CONTITECH FD 330-22 313FIRESTONE

    W01-358-7431

    FIRESTONE W01 358 0226FIRESTONE W01 358 7400GOODYEAR 2B12-429
    95.0037GOODYEAR 2B12-309GOODYEAR FLEX 578-92-3-309
    95.0082GOODYEAR FLEX 578-92-3-309AIRKRAFT 113492
    GOODYEAR 556 2 3 8210TAURUS KF 222-7400FIRESTONE

    W013587431

    PHOENIX 2B 22RAIRKRAFT 113490

    GOODYEAR 2B12- 318
    Goodyear Part # 2B12-311 Goodyear-Firestone Cross Reference‚ 2B12-425 Goodyear-Firestone Cross Reference‚ 2B12-437 Goodyear-Firestone Cross Reference

    PIRELLI T22 88544CONTITECH FD 330-22 363GOODYEAR FLEX 578-92-3-309
    FIRESTONE W01-358-7180
    GOODYEAR 2B12 425
    GOODYEAR FLEX 578-92-3-309

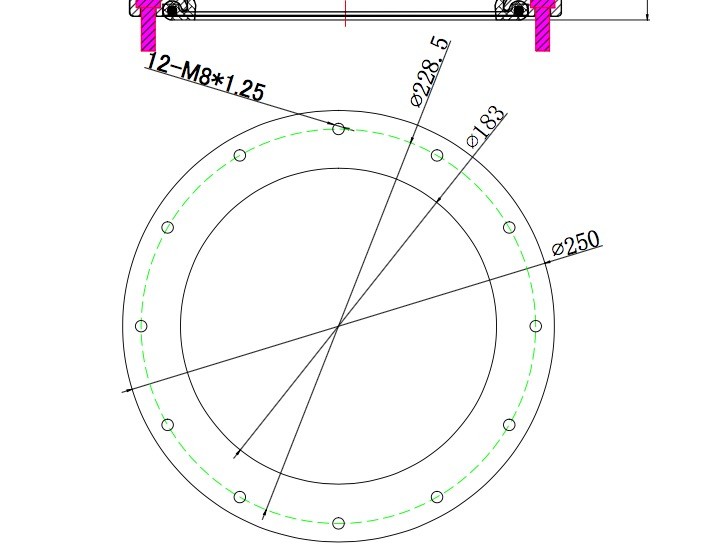

    The drawing of AIRSUSTECH 2H7431air spring:


    W01-358-7431 Firestone Air Spring With Countersunk Steel Bead Rings W01-358-0226 Rubber BellowsW01-358-7431 Firestone Air Spring With Countersunk Steel Bead Rings W01-358-0226 Rubber BellowsW01-358-7431 Firestone Air Spring With Countersunk Steel Bead Rings W01-358-0226 Rubber Bellows
