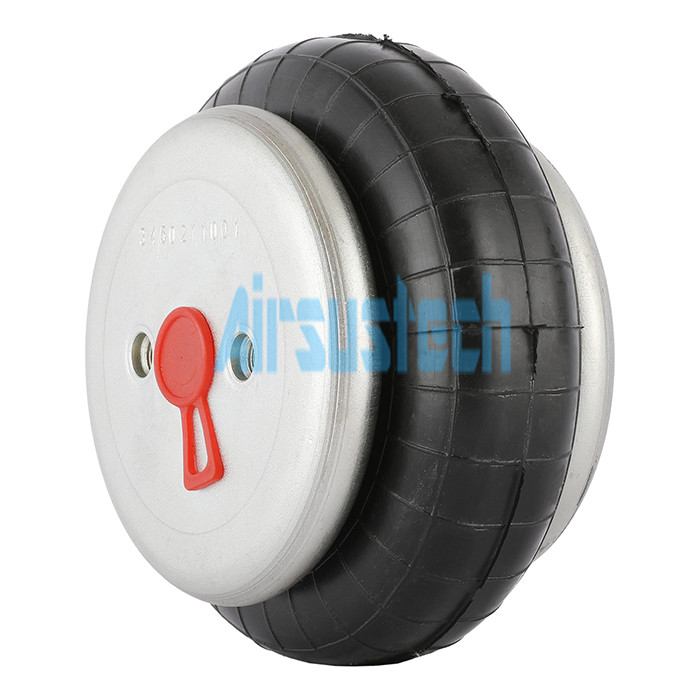

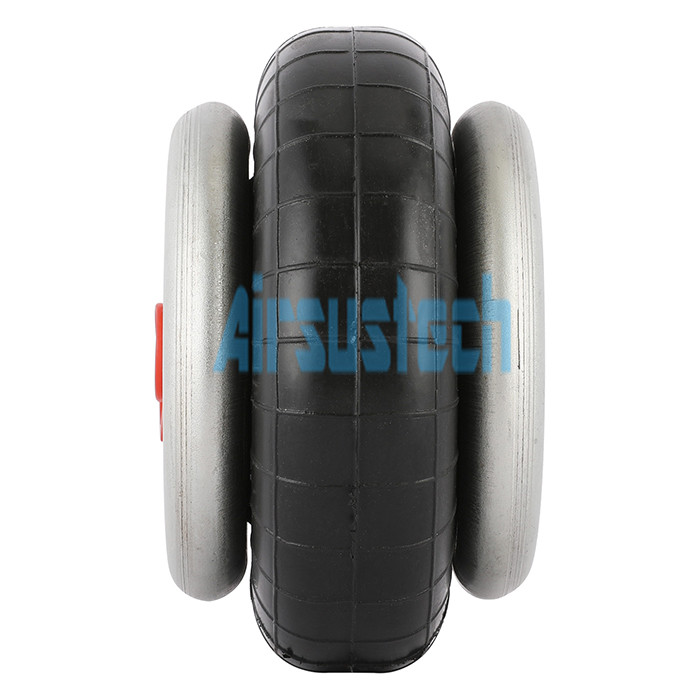

    Industrial Single Rubber Iron Convoluted Air Springs 16Unc Firestone W01-358-7731

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B7731
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Industrial Single Rubber Iron Convoluted Air Springs 16Unc Firestone W01-358-7731

    Product Description:

    16Unc Firestone W01-358-7731 Industrial Single Rubber and Iron Convoluted Air Springs


    AIRSUSTECH​ Part Number:1B7731 Specifications and Technical parameters


    Air Inlet:1/4 NPT
    Bottom Plate Hole/Stud:3/8-16unc
    Bottom Plate Dia:115Mm
    Top Plate Hole/Stud:3/8-16unc
    Top Plate Dia:115Mm
    Specification:

    16*16*16Cm


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 44.45 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 44.45 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4NPTF

    Screw Center Distance Between Gas Hole and Nut : 22.25 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 165 mm

    The Working Stroke : MIN 50 mm to MAX 115mm

    Maximum Height : 115 mm

    Minimum Height :50mm

    Stroke Height : 65mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :no One Pieces of Girdle Hoop



    Refer Numbers:


    Firestone: W01 - 358 - 7731


    Friestone : W01 358 7731


    Friestone : W013587731


    Firestone: W013587731


    Firestone : W01-358-7731


    Firestone : W01-3587731


    Firestone:Wo1 3587731


    firestone : Wo135877331


    firestone : Wo1-358-7731


    Firestone: Wo1358 7731


    Industrial Equipment for air spring :


    1. Glue applicator


    2.Missile assembly fixture


    3.Paper sizing press


    4. Bronzing machine


    5.Precision instrument platform


    6.Single valve operator


    7.Web assembling machine


    8.Forming press


    9. ...

    It can be used to many kinds of industrial equipment, and help the machine work more effective . It can absorb shock, then let your machines have a longer service life, help you reduce your production cost.



    Industrial Single Rubber Iron Convoluted Air Springs 16Unc Firestone W01-358-7731Industrial Single Rubber Iron Convoluted Air Springs 16Unc Firestone W01-358-7731Industrial Single Rubber Iron Convoluted Air Springs 16Unc Firestone W01-358-7731

    Other smiliar reference:


    W01-358-7701W01-358-7912 215 750 846
    W01-358-1201 153-2 750 746W01-358-5135 121 750 606
    W01-358-6976 210 750 795 MW01-358-7012 7012 751 540
    W01-358-7737 138-1.5 750 670W01-358-7914 312 751 360
    W01-358-3000 noir 1M1A-0 751 016W01-358-5305 1T14C-1 751 680
    W01-358-6976 328 751 011 MW01-358-7019 333 751 023
    W01-358-7742 131 750 652W01-358-7919 321 750 985
    W01-358-3000 rouge 1M1A-0 751 015W01-358-5307 1T14C-1 751 685
    W01-358-6977 115 750 530 MW01-358-7019 333 751 023
    W01-358-7751 160 750 770W01-358-7921 323 751 400
    W01-358-3001 noir 1M1A-0 751 017W01-358-5310 1T14C-1 751 670
    W01-358-6978 215 750 840 MW01-358-7023 19 750 155
    W01-358-7752 160 750 772W01-358-7925 28 750 385
    W01-358-3001 rouge 1M1A-0 751 017 MW01-358-5405 1T14C-3 751 710
    W01-358-6979 200 750 680 MW01-358-7025 25 750 350
    W01-358-7760 312 750 860W01-358-7926 314 750 945
    W01-358-3002 noir 2M1A 751 523W01-358-5674 70-P-13 79 866
    W01-358-6980 323 750 990 MW01-358-7030 25 750 355
    W01-358-7761 312 750 870W01-358-7928 210 750 796
    W01-358-3002 rouge 2M1A 751 520W01-358-5708 1T14C-7 751 745
    W01-358-6981 314 750 940 MW01-358-7040 19-.75 750 175
    W01-358-7772 200 750 680W01-358-7929 205 750 754
    W01-358-3003 1M1A-1 751 018 6983 320 750 965 MW01-358-5712 1T14C-7 751 740
    W01-358-7789 20-2 750 234W01-358-7042 19-.75 750 176
    W01-358-3004 2M1A 751 524W01-358-8003 314 750 940
