    1/4 NPTF Rubber And Iron Firestone Air Bags W01-358-7451/1B5021

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B5021
    Certification : ISO/TS16949, ISO9001
    Price :
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working days
    • Product Details
    • Company Profile

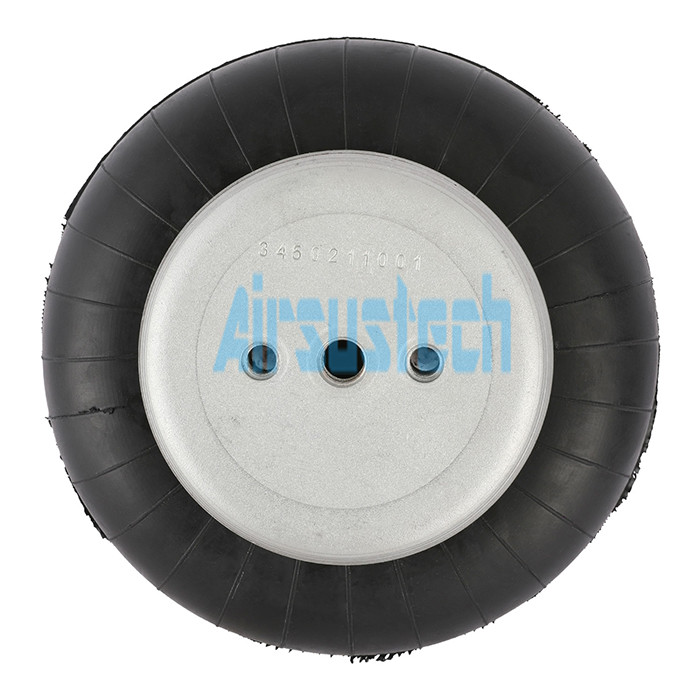

    1/4 NPTF Rubber And Iron Firestone Air Bags W01-358-7451/1B5021

    Description of AIRSUSTECH 1B5021 Air Spring:


    W01-358-7451 Style Number 1B5021 Firestone Air Springs Single Convoluted Rubber Air Bags


    Model:1B 5021
    Type:Single Convoluted Air Spring
    Operation:Gas - filled
    Function:Reduce Shock / Reduce Vibration
    Quality:100% Tested and Good Quality

    AIRSUSTECH​ Part Number:1B5021 Specifications and Technical parameters


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 44.45 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 44.45 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4NPTF

    Screw Center Distance Between Gas Hole and Nut : 22.25 mm


    Cover Plate

    Top Cover Plate Diameter: 115 mm

    Bottom Cover Plate Diameter: 115 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 205 mm

    Rubber Bellows Natural Diameter : 180 mm


    The Working Stroke : MIN 50 mm to MAX 140 mm

    Maximum Height : 140 mm

    Minimum Height :50mm

    Stroke Height : 90mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :No One Pieces of Girdle Hoop


    The drawing of 1B5021 Air Springs


    AIRSUSTECH​ Part Number:1B5021 cross other OE:


    AIRSUSTECH​ Part Number:1B5021

    Goodyear-Firestone Cross Reference 1B7-100
    Goodyear-Firestone Cross Reference‚ 1B7-101
    Goodyear-Firestone Cross Reference‚ 1B7-102
    Goodyear-Firestone Cross Reference‚ 1B7-103
    Goodyear-Firestone Cross Reference‚ 1B7-540
    Goodyear-Firestone Cross Reference‚ 1B7-541
    Goodyear-Firestone Cross Reference‚ 1B7-542


    1/4 NPTF Rubber And Iron Firestone Air Bags W01-358-7451/1B50211/4 NPTF Rubber And Iron Firestone Air Bags W01-358-7451/1B5021

    The Industrial Application:

    Industrial equipment for damping of the air spring technology application, effectively improving the work efficiency of equipment and the safe use of equipment life. Air spring is not like an ordinary cylinder type device having internal control rod, piston, or sliding type sealing device, thus greatly reducing the use of a pneumatic or hydraulic cylinder cost, for customers to win more economic benefits.
    Characteristic:
    ● The low cost, wide range of specifications.
    ● The long service life, no maintenance and lubrication, without the need for internal control rod or piston.
    ● no friction effect, soft medium.
    ● The bending capacity, lateral load capacity, compact original height
    Which means this product has a good cost performance, and you can apply it to most industrial equipment. It also very convenient for you to apply it to industrial equipment, and help you save more money, effectively improve the industrial equipment working efficiency.
