    88110 Air Spring With Connection F2 Model 321 MAX OD 380 MM

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3H88110
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

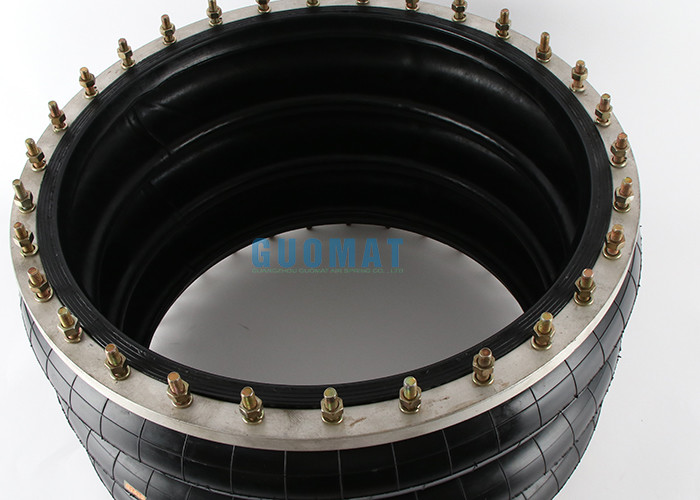

    88110 Air Spring With Connection F2 Model 321 MAX OD 380 MM

    Triple Convoluted 88110 Air Spring With Connection F2 Model 321 MAX OD 380 MM


    AIRSUSTECH 3H88110 Cross OEM Original Equipment Manufacturer:


    TORPRESS Air Spring Bellows:321

    TORPRESS Style:321

    AIRSUSTECH Part Number:2H7431

    Air Spring: MODEL F2

    Air Spring:Standard Code 88110


    GUOMAT 3H88110 Technical parameters


    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth :12 pcs X M8

    Screw Center Distance of Top Cover Plate : 287.3 mm

    Bottom Cover Plate Screw (Nut) Tooth : 12 pcs X M8

    Screw Center Distance of Bottom Cover Plate : 287.3 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet :NO

    Screw Center Distance Between Gas Hole and Nut :NO


    Cover Plate

    Top Cover Plate Diameter: 306 mm

    Bottom Cover Plate Diameter: 306 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 380 mm

    Rubber Bellows Natural Diameter : 360 mm

    The Working Stroke : MIN 125 mm to MAX 400 mm

    Maximum Height :400mm

    Minimum Height :125 mm

    Stroke Height : 275 mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :TWO Pieces of Girdle Hoop


    Application of rubber air springs on lifting equipment:


    Conventional lifting equipment uses cylinders or hydraulic cylinders to lift objects, requiring a large installation space, manufacturing difficulties, heavy weight, easy leakage, and inconvenient maintenance. After using the rubber air spring as the lifting element of the lifting device, the traditional shortcomings of the lifting device are overcome, no maintenance is required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.
