    86600 Suspension Air Spring Torpress Air Actuators With Thread Hole 8pcs M8x1

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1F6923
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

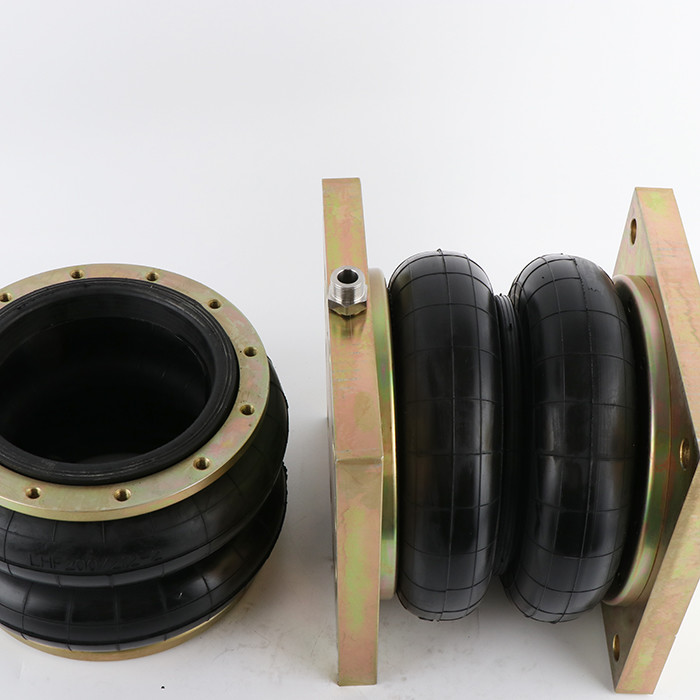

    86600 Suspension Air Spring Torpress Air Actuators With Thread Hole 8pcs M8x1

    Air Spring 86600 Torpress Air Actuators With Thread Hole 8pcs of M8x1


    AIRSUSTECH 1F6923 Cross other OEM:


    AIRSUSTECH1F6923
    TORPRESS MODEL86600
    StyleF2
    Firestone Rubber bellows:W01-358-0138
    Firestone Part Number:W01-358-6923
    AIRSUSTECH:Style 20
    Firestone Style:20
    Firestone Rubber bellows:WO1-358-0138Firestone Rubber bellows:W01-358-0138
    Firestone Rubber bellows:WO1 358 0138Firestone Rubber bellows:W01 358 0138
    Firestone Rubber bellows:WO13580138Firestone Rubber bellows:W013580138
    Firestone Part Number:WO1-358-6923Firestone Part Number:W01-358-6923
    Firestone Part Number:WO1 358 6923Firestone Part Number:W01 358 6923
    Firestone Part Number:WO13586923Firestone Part Number:W013586923

    AIRSUSTECH 1F6923 Specifications and Technical Data


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 8 pcs X M8X1

    Screw Center Distance of Top Cover Plate : 160.3 mm

    Bottom Cover Plate Screw (Nut) Tooth : 8 pcs X M8X1

    Screw Center Distance of Bottom Cover Plate : 160.3 mm

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : NO

    Cover Plate

    Top Cover Plate Diameter (Width): 179 mm

    Bottom Cover Plate Diameter (Width): 179 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 255mm

    Rubber Bellows Natural Diameter 224 mm

    The Working Stroke : MAX 265 mm to MINn80 mm

    Compressed Height: 80 mm / 3.12 inches

    Design Height: 178mm-203mm / 7-8 inches

    Bellows # NO.: 20

    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    MODELSTANDARD CodeHIGH- TEMP CodeConnection
    169302993086P1
    13194047———P1
    1109311393114P1
    1108854093079F1
    1108882089023F1
    11693027———P1
    199401695015P2
    1994014———F2
    23 B202665———F1
    268418189422P2
    208660088538F2
    2459374090587F2
    2294091———P2
    2288544HIGH- TEMPF2
    21 BR8945789425F2
    21A BR97300———F2
    21B BR92154———F2
    28 BR92527———F2
    28B90559———F2
    2993056———P3
    2993166———F2
    3195210———F2
    325203332———F2
    32292615———P4
    32287987———F2
    32188110———F2
