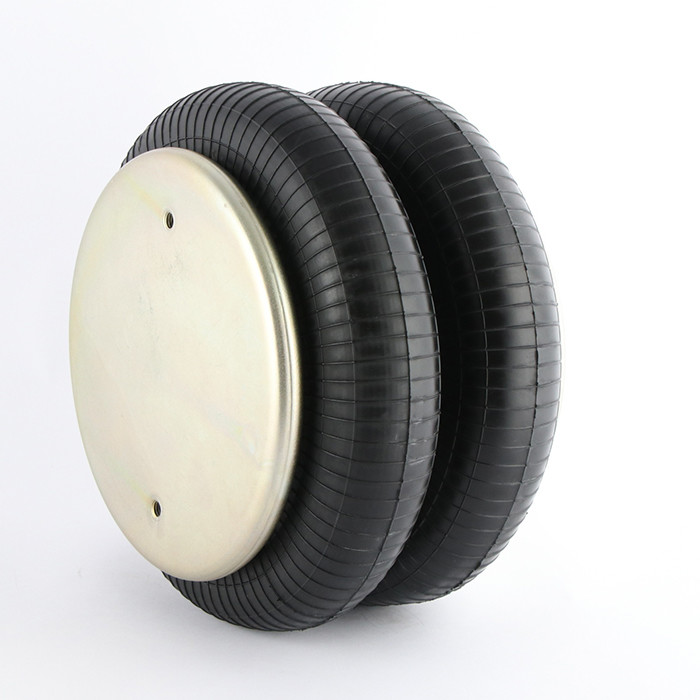

    94091 Double Convoluted Air Spring With Connection P2 Model 22 Cross W01-358-7180

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B7180
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    94091 Double Convoluted Air Spring With Connection P2 Model 22 Cross W01-358-7180

    Air Spring Double Convoluted 94091 With Connection P2 Model 22 Cross W01-358-7180


    AIRSUSTECH 2B7180 Cross OEM Original Equipment Manufacturer:


    TORPRESS Air Spring Bellows:22

    TORPRESS Style:22

    AIRSUSTECH Part Number:2B7180

    Air Spring: MODEL P2

    Air Spring:Standard Code 94091


    Technical Parameters of GUOMAT 2B7180


    1 Inch (pounds)71801 Inch (pounds)7180
    3 Inch (pounds)64703 Inch (pounds)6470
    Maximum Stroke (pounds)3700Maximum Stroke (pounds)3700
    Equivalent High Strength Style Number210Equivalent High Strength Style Number210
    Extended Height (Similar End Closure) Style Number22_Ì1.5Extended Height (Similar End Closure) Style Number22_Ì1.5
    Material2-Ply Standard CordMaterial2-Ply Standard Cord
    Bead plate Type3Bead plate Type3
    Blind Nut Centers (inches)6.2Blind Nut Centers (mm)157.48
    Port Offset from Blind Nut Centerline (inches)2.88Port Offset from Blind Nut Centerline (mm)73.152
    Design Height9.5Design Height241.3
    aximum Height (inches)10.1aximum Height (mm)256.54
    Maximum Stroke (inches)6.9Maximum Stroke (mm)175.26
    Minimum Usable Height (inches)3.2Minimum Usable Height (mm)81.28

    GUOMAT 2B7180 Technical parameters


    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 157.5 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 157.5 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4-18NPTF

    Screw Center Distance Between Gas Hole and Nut : 73 mm


    Cover Plate

    Top Cover Plate Diameter: 228.5mm

    Bottom Cover Plate Diameter: 228.5mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 325 mm

    Rubber Bellows Natural Diameter : 300 mm

    The Working Stroke : MIN 81 mm to MAX 305 mm

    Maximum Height : 305mm

    Minimum Height :81mm

    Stroke Height : 224 mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    OEM Original Equipment Manufacturer:


    BELLOW NO.COMPLETE NO.COMPLETE NO.
    AIRKRAFT 114301

    GUOMAT NO. 2B7180


    AIRKRAFT 113333

    AIRKRAFT 113491
    FIRESTONE FLEX 22

    CONTITECH FD 330-22 313

    FIRESTONE W01-358-7184
    FIRESTONE W01 358 0226FIRESTONE W01 358 7400GOODYEAR 2B12-429
    95.0037

    GOODYEAR 2B12-309

    GOODYEAR FLEX 578-92-3-309
    95.0082GOODYEAR FLEX 578-92-3-309AIRKRAFT 113492
    GOODYEAR 556 2 3 8210

    TAURUS KF 222-7400

    FIRESTONE W01-358-7185
    PHOENIX 2B 22RAIRKRAFT 113490

    GOODYEAR 2B12- 318

    Goodyear Part # 2B12-311 Goodyear-2B12-425 Goodyear-2B12-437

    T22 88544

    CONTITECH FD 330-22 363

    GOODYEAR FLEX 578-92-3-309
    Firestone: W01-358-7180/22FIRESTONE W01-358-7180Watson&Chalinl : AS01541G/01881F
    Contitech: FD 330-22 363GOODYEAR 2B12 425Vibracoustic : VSP2B22R7180
    Goodyear: 2B12-425/311GOODYEAR FLEX 578-92-3-309Ridewell : 1003587180C
    Hendrickson : 1VA1816

    Leland : Sc2075

    Peerless : 0550 00001
    : 578923309

    Navistar : 1685179C1

    SAF Holland : 57007180
    Triangle : 6316/4363EI Ride : 8030190

    Kwiklok/Todco(Jifflox)



    Application of rubber air springs on lifting equipment:


    Conventional lifting equipment uses cylinders or hydraulic cylinders to lift objects, requiring a large installation space, manufacturing difficulties, heavy weight, easy leakage, and inconvenient maintenance. After using the rubber air spring as the lifting element of the lifting device, the traditional shortcomings of the lifting device are overcome, no maintenance is required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.



    Other kinds of FD 330-22 that GUOMAT have:


    GUOMAT NO.ReferenceOrder NO.Force (lbs)Max OD (in)Design height(in)HeightNarural frequ.[cpm]
    80 psi100 psiMinMAX
    FD 330 22 313FD 330-22 3131610164200525012.99.54.112102
    FD 330 22 318FD 330-22 3181612704200525012.99.5312102
    FD 330 22 327FD 330-22 3271610294200525012.99.54.112102
    FD 330 22 331FD 330-22 3311610094200525012.99.54.112102
    FD 330 22 334FD 330-22 3341612714200525012.99.54.112102
    FD 330 22 337FD 330-22 3371612724200525012.99.54.112102
    FD 330 22 343FD 330-22 3431612734200525012.99.5312102
    FD 330 22 346FD 330-22 3461612744200525012.99.5312102
    FD 330 22 363FD 330-22 3631612754200525012.99.5312102
    FD 330 22 364FD 330-22 3641612764200525012.99.54.112102
    FD 330 22 365FD 330-22 3651612774200525012.99.54.112102
    FD 330 22 366FD 330-22 3661612784200525012.99.54.112102
    FD 330 22 367FD 330-22 3671612794200525012.99.54.112102
    FD 330 22 368FD 330-22 3681612804200525012.99.5312102
    FD 330 22 465FD 330-22 4651612814200525012.99.5312102
    FD 330 22 471FD 330-22 4711612824200525012.99.54.112102
    FD 330 22 472FD 330-22 4721612834200525012.99.5312102
    FD 330 22 500FD 330-22 5001612844200525012.99.5312102
    FD 330 22 540FD 330-22 5401612854200525012.99.54.112102
