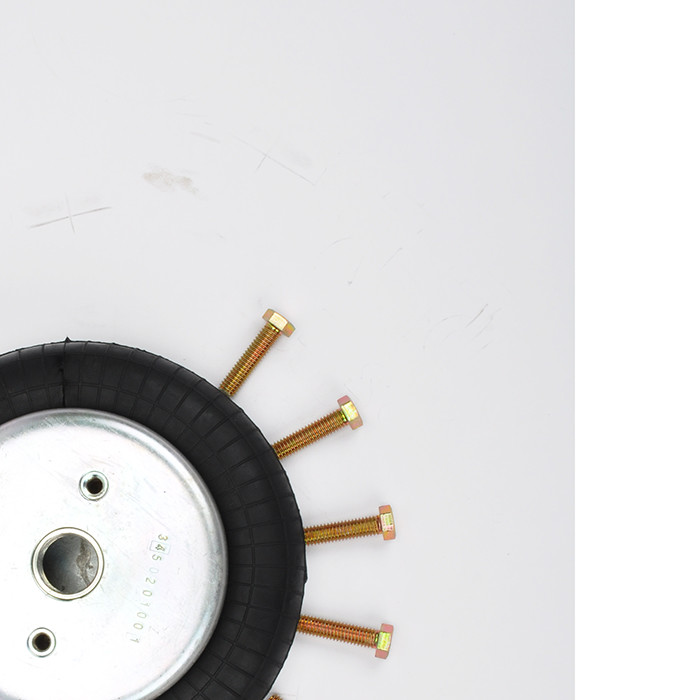

    Iron Torpress Air Spring Standard Code 93027 Connection P1 Bellow No. 116

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B1209
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    Iron Torpress Air Spring Standard Code 93027 Connection P1 Bellow No. 116

    Torpress Air Spring Standard Code 93027 Connection P1 Bellow No. 116


    AIRSUSTECH 1B1209 Cross other OEM:


    AIRSUSTECH: 1B1209AIRSUSTECH: Style 116
    Air Spring STANDARD Code 93027Style 116
    Connection P1TORPRESS MODEL 116
    Goodyear Part Number:1B8-550Firestone Style 116
    Goodyear Part Number:1B8 550Contitech:FS120-9
    Goodyear Part Number:1B8 550Contitech:FS120 9
    Contitech Part Number:FS 120-9CContitech:FS1209
    Contitech Part Number:FS120-9 CFirestone Part Number:W01-358-756
    Contitech Part Number:FS 120 9 CFirestone Part Number:W01 358 756
    Continental Part Number:FS 120-9 CFirestone Part Number:W01358756
    Continental Part Number:FS120-9CFirestone Rubber bellows only:W01-358-0133
    Continental Part Number:FS 120 9 CFirestone Rubber bellows only:W01 358 0133
    Enidine Part Number:YI1-B8-550Firestone Rubber bellows only:W013580133
    Enidine Part Number:YI1B8550Enidine Part Number:YI1 B8-550

    Product Description of 1B1209 Refer To Air Spring STANDARD Code 93027


    Top Cover Plate Diameter: 135 mm

    Bottom Piston Number: 70 mm

    Bottom Cover Plate Diameter: 135 mm

    Screw Center Distance : 70 mm

    Distance Gas Hole Between Nut: 35 mm


    Air inlet:1/4” NPT F


    Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

    Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

    Rubber Bellows MAX Diameter(Maximum Diameter): 231 mm

    Rubber Bellows Natural Diameter 210 mm

    The Working Stroke : MAX 151 mm to MIN 51 mm

    Compressed Height: 100 mm


    Technical Data

    • Min. pressure - 0 psi
    • Return force to min. height - <45LBF/200N
    • Overall Weight - 2.4KG
    • Min. Design Height - 50MM
    • Inst.Space Required - 240MM
    • Max. Stroke - 90MM

    Technical performance parameter list of AIRSUSTECH 1B1209 air spring:
    Bearing
    load
    Power
    (kg)
    Inflation pressure0.2MPa0.3MPa0.4MPa0.5MPa0.6MPa0.7MPa0.8MPa0.7MPa
    Volume(dm³)
    Installation height
    55(mm)43366489711311354158518221.11
    78(mm)39659880310151236144116471.34
    101(mm)314471646820996117513211.47
    124(mm)2083184345556757989201.79
    130(mm)1672583484385356367331.86
    147(mm)56961331792262743312.04
    149(mm)194164931261642082.08
    155(mm)210204151801002.15
    Stiffness and frequency at design heightVertical stiffness(Kg/cm)132170182203230268285
    Stiffness and frequency at design heightNatural frequency Hz4.454.063.623.43.283.253.12
    Stiffness and frequency at design heightNatural frequency cpm267244217204197195187

    PURCHASE ORDER DATA


    TypeAir InletOrder No.
    with crimped plates

    1/4 NPT

    0 in. excentrical


    Iron Torpress Air Spring Standard Code 93027 Connection P1 Bellow No. 116Iron Torpress Air Spring Standard Code 93027 Connection P1 Bellow No. 116
