    0.8MPA Air Spring Standard Code 94016 Connection P1 Bellow No. 19 With Thread Air Hole 1/4 NPT F

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B5330
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    0.8MPA Air Spring Standard Code 94016 Connection P1 Bellow No. 19 With Thread Air Hole 1/4 NPT F

    Air Spring Standard Code 94016 Connection P1 Bellow No. 19 With Thread Air Hole 1/4” NPT F


    AIRSUSTECH 1B5330 Cross other OEM:


    AIRSUSTECH: 1B5330AIRSUSTECH: Style 19
    Air Spring STANDARD Code 93027Style 19
    Connection P1TORPRESS MODEL 19
    Goodyear Part Number:1B12-300Firestone Style 19
    Goodyear Part Number:1B12 300Contitech:FS330-11
    Goodyear Part Number:1B12300Contitech:FS330 11
    Contitech Part Number:FS 330-11CContitech:FS33011
    Contitech Part Number:FS330-11 CFirestone Part Number:W01-358-7008
    Contitech Part Number:FS 330 11 CFirestone Part Number:W01 358 7008
    Continental Part Number:FS 330-11 CFirestone Part Number:W013587008
    Continental Part Number:FS330-11CFirestone Rubber bellows only:W01-358-0134
    Continental Part Number:FS 33011 CFirestone Rubber bellows only:W01 358 0134
    Enidine Part Number:YI1-B12-300Firestone Rubber bellows only:W013580134
    Enidine Part Number:YI1B12300Enidine Part Number:YI1 12-300

    AIRSUSTECH 1B5330 Specifications and Technical Data


    Bottom Cover Plate Screw (Nut) Teeth: 2 x 3/8-16UNC
    Compressed Height: 2.12
    Rubber Bellows Maximum Diameter (Max Diameter): 12.9 inches / 325 mm
    Rubber bellows natural diameter 300 mm
    Working stroke: max 160 mm min 55 mm
    Compressed Height: 2.12"/105mm
    Thread Air Hole: 1/4 N PTF
    Number of Firestone Bellows: 19
    Top Cover Diameter: 9.00"/231mm
    Bottom Piston Number: 3212 or 3183
    Bottom Cover Diameter: 9.00"/231mm
    Screw center distance: 157.5 mm
    Air hole distance between nuts is 73 mm
    Top Plate Screw (Nut) Teeth: 2 x 3/8-16UNC

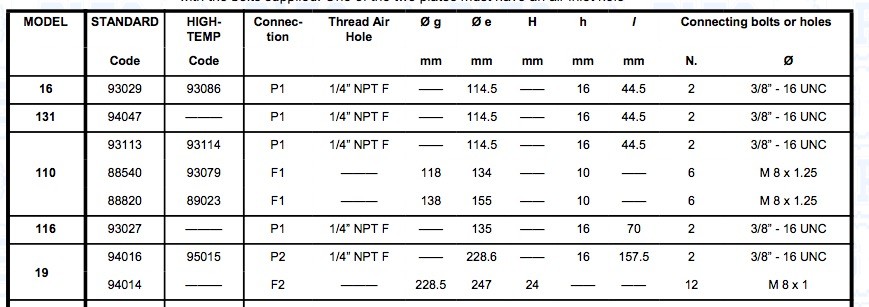

    STANDARDHIGH- TEMPSTANDARDHIGH- TEMP
    CodeCode8854489425
    930299308689457———
    94047———97300———
    931139311492154———
    885409307992527———
    888208902390559———
    93027———93056———
    940169501593166———
    94014———95210———
    202665———203332———
    841818942292615———
    866008853887987———
    937409058788110
    94091———

    0.8MPA Air Spring Standard Code 94016 Connection P1 Bellow No. 19 With Thread Air Hole 1/4 NPT F


    0.8MPA Air Spring Standard Code 94016 Connection P1 Bellow No. 19 With Thread Air Hole 1/4 NPT F
