Brand Name : | AIRSUSTECH |
Model Number : | 6x2 |
Certification : | ISO/TS16949:2009 |
Payment Terms : | T/T, Western Union,Paypal or Others |
Supply Ability : | 1000pcs/week |
Delivery Time : | 3-8 Working Days |
DUNLOP Air Spring SP 2917 Bellows 6x2 Firestone Air Spring W01-R58-4070
AIRSUSTECH 6x2 OEM Reference:
Replaces These Air Springs (Air Bellows) | |||
AIRSUSTECH 6x2 | Firestone W01-R58-4070/ | ContiTech: FD 76-14 1/2 M10 | Norgren: M/31062 / M 31062 / M31062 |
Dunlop FR: SP2917 | Firestone W01 R58 4070/ | ContiTech Bellow: FD 76-14 / FD76-14 / FD7614 | Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2 |
Double Convoluted Air Spring 2B180-115 D185 | Firestone W01R584070 | ContiTech: FD 76-14 DS G1/2 | Continental: FD 76-14 1/2 M10 |
Dunlop FR: SP 2917 | Firestone WO1-R58-4070/ | ContiTech: FD 76-14 DS CR G1/2 | Continental Bellow: FD 76-14 / FD76-14 / FD7614 |
Double Convoluted Air Spring 2B180-115 D185 | Firestone WO1 R58 4070/ | ContiTech: FD 76-14 DS G1/2 CR | Continental: FD 76-14 DS G1/2 |
Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112 | Firestone WO1R584070 | ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR | Continental: FD 76-14 DS CR G1/2 |
Dunlop 6x2 | Continental: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR | Continental: FD 76-14 DS G1/2 CR |
Specifications and Detail Technical Parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M8
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
Cover Plate
Top Cover Plate Diameter (Width): 153.5 mm
Bottom Cover Plate Diameter (Width): 153.5 mm
Material top and bottom plate:Aluminium
Rubber Bellows
Diameter max at 7 bar:175MM
Stroke of Rubber Bellows:80mm-195m
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
max load at 80 mm height and 8 bar:1415 daN

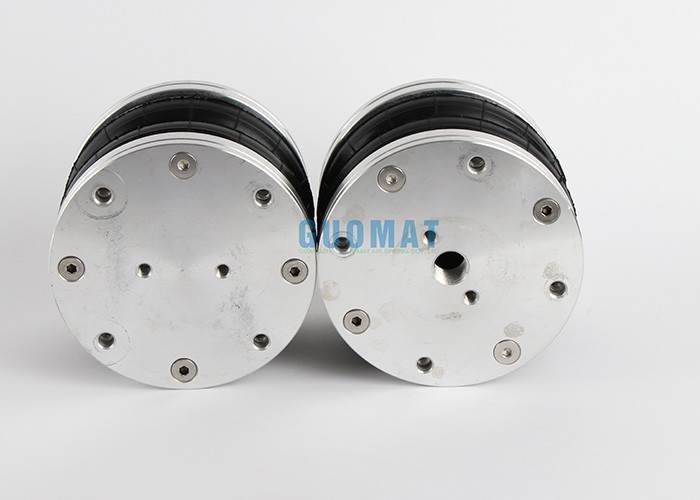

Details pictures 1 of AIRSUSTECH 6x2 O Air Spring:
![]() |
