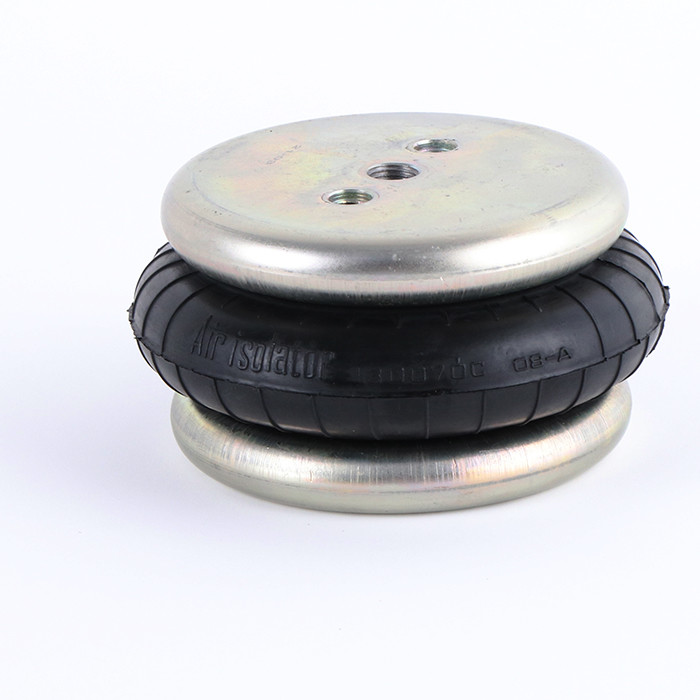

    FS50-5 Contitech Air Spring Small Stroke Rubber Bellows AIRSUSTECH 1B7001 Shocks

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B7001
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    FS50-5 Contitech Air Spring Small Stroke Rubber Bellows AIRSUSTECH 1B7001 Shocks

    Contitech Air Spring FS50-5 Small Stroke Rubber Bellows AIRSUSTECH 1B7001 Shocks


    AIRSUSTECH 1B7001 Cross OEM Original Equipment Manufacturer:


    AIRSUSTECH Part Number:1B7001Firestone Style 16Firestone Part Number: W01-358-7001
    Contitech Part Number: FS50-5Firestone Part Number: WO1-358-7001Firestone Part Number: W01 358 7001
    Contitech Part Number: FS 50-5Firestone Part Number: WO1 358 7001Firestone Part Number: W013587001
    Contitech Part Number: FS50 5Firestone Part Number: WO13587001Firestone Part Number: W01-358-6996
    Continental Part Number: FS50-5Firestone Part Number: WO1-358-6996Firestone Part Number: W01 3586996
    Continental Part Number: FS 50-5Firestone Part Number: WO1 3586996Firestone Part Number: W013586996
    Continental Part Number: FS50 5Firestone Part Number: WO13586996Firestone Part Number: W01-358-0010
    Contitech Part Number: FS50-5 G1/4 M8Firestone Part Number: WO1-358-0010Firestone Part Number: W01 358 0010
    Contitech Part Number: FS 50-5 G1/4 M8Firestone Part Number: WO1 358 0010Firestone Part Number: W013580010
    Contitech Part Number: FS50 5 G1/4 M8Firestone Part Number: WO13580010
    Continental Part Number: FS50-5 G1/4 M8
    Continental Part Number: FS 50-5 G1/4 M8
    Continental Part Number: FS50 5 G1/4 M8

    AIRSUSTECH 1B7001 product description:


    The air spring shock absorber AIRSUSTECH 1B7001 Replace Contitech Air Spring FS50-5 can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded


    • In order to press the air spring shock absorber AIRSUSTECH 1B7001 Replace Contitech Air Spring FS50-5 to the minimum height, a restoring force is required. Usually, this is achieved by applying a load


    • The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B7001 Replace Contitech Air Spring FS50-5 must be used to absorb the force


    • Before disassembling the air spring shock absorber AIRSUSTECH 1B7001 Replace Contitech Air Spring FS50-5 , the internal air must be released to prevent accidents and personal injury.


    • During operation, the rubber air spring shock absorber AIRSUSTECH 1B7001 Replace Contitech Air Spring FS50-5 shall not be in contact with other parts



    AIRSUSTECH 1B7001 Technical Parameters
    Top Cover Plate Diameter115 mm
    Bottom Cover Plate Diameter115 mm
    Screw Center Distance44.5 mm
    Distance Gas Hole Between Nut22.25 mm
    Gas Hole1/4NPTF
    Screw (Nut) Tooth2pcsX3/8-16UNC
    Rubber Bellows DiameterNatural Φ135 mm
    The HeightNatural 80 mm

    AIRSUSTECH 1B7001 Single Curved Air Spring Specification:


    Airmount / Airstroke actuator

    Maximum diameter @ 100 PSIG (inch): 6
    Maximum height (inches): 3.3
    Maximum stroke (inch): 1.4
    Minimum usable height (inches): 1.9
    16B air spring
    Type 1 bead plate
    (2) 1.75" center 3/8-16 blind nut
    1/4" NPT center port
    16B 2BN 1/4NPT click rate.
    1 inch (lb): 930
    Maximum stroke (lbs): 580
    Material: 2 layers of standard wires
    Bead plate type: 1
    Blind nut center (inch): 1.75
    Design height: 3
    40 psig (pounds): 420
    60 psig (pounds): 640
    80 psig (pounds): 880
    Natural frequency (@80 psig) (cpm): 237
    800 CPM percentage: 90.3
    1500 cost-per-thousand impressions percentage: 97.4


    FS50-5 Contitech Air Spring Small Stroke Rubber Bellows AIRSUSTECH 1B7001 ShocksFS50-5 Contitech Air Spring Small Stroke Rubber Bellows AIRSUSTECH 1B7001 Shocks


    Other kinds of air spring we can offer:


    W01-358-7731 131 750 650W01-358-7912 215 750 846
    W01-358-1201 153-2 750 746W01-358-5135 121 750 606
    W01-358-6976 210 750 795 MW01-358-7012 7012 751 540
    W01-358-7737 138-1.5 750 670W01-358-7914 312 751 360
    W01-358-3000 noir 1M1A-0 751 016W01-358-5305 1T14C-1 751 680
    W01-358-6976 328 751 011 MW01-358-7019 333 751 023
    W01-358-7742 131 750 652W01-358-7919 321 750 985
    W01-358-3000 rouge 1M1A-0 751 015W01-358-5307 1T14C-1 751 685
    W01-358-6977 115 750 530 MW01-358-7019 333 751 023
    W01-358-7751 160 750 770W01-358-7921 323 751 400
    W01-358-3001 noir 1M1A-0 751 017W01-358-5310 1T14C-1 751 670
    W01-358-6978 215 750 840 MW01-358-7023 19 750 155
    W01-358-7752 160 750 772W01-358-7925 28 750 385
    W01-358-3001 rouge 1M1A-0 751 017 MW01-358-5405 1T14C-3 751 710
    W01-358-6979 200 750 680 MW01-358-7025 25 750 350
    W01-358-7760 312 750 860W01-358-7926 314 750 945
    W01-358-3002 noir 2M1A 751 523W01-358-5674 70-P-13 79 866
    W01-358-6980 323 750 990 MW01-358-7030 25 750 355
    W01-358-7761 312 750 870W01-358-7928 210 750 796
    W01-358-3002 rouge 2M1A 751 520W01-358-5708 1T14C-7 751 745
    W01-358-6981 314 750 940 MW01-358-7040 19-.75 750 175
    W01-358-7772 200 750 680W01-358-7929 205 750 754
    W01-358-3003 1M1A-1 751 018 6983 320 750 965 MW01-358-5712 1T14C-7 751 740
    W01-358-7789 20-2 750 234W01-358-7042 19-.75 750 176
    W01-358-3004 2M1A 751 524W01-358-8003 314 750 940
