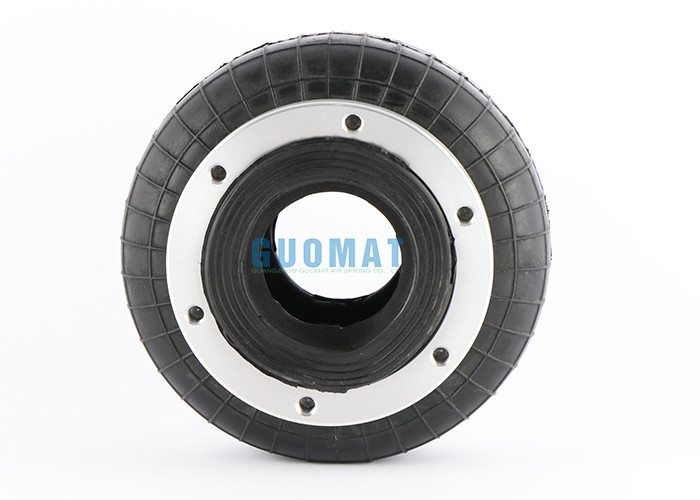

Air Spring Model 110 Torpress 88820 Series F1 Connection Bolts Dia.
138 MM
AIRSUSTECH 1H5083 Cross OEM Original Equipment Manufacturer:
TORPRESS Air Spring Bellows:110
TORPRESS Style:110
AIRSUSTECH Part Number:1H5083
Air Spring: MODEL 110
Air Spring:Standard Code 88820
AIRSUSTECH Part Number:1H5083 Specifications
| Maximum diameter @ 100 PSIG (inch) | product name: |
| 8.3 | air spring/airbag/air suspension |
| Maximum height (inch) | Model: |
| 5.1 | Mid-Liner, |
| Maximum stroke (inch) | Original equipment number: |
| 3 | 1H5083, |
| Minimum usable height (inches) | Automotive Spare Parts: |
| 2.1 | equipment MACHINE |
| Force at 1 inch (lb) stroke @ 80PSI | Spring material: |
| 2090 | Rubber |
| Force at a stroke of 3 inches (lbs) @ 80PSI | Spring type: |
| 1030 | Bellows type |
| Force at maximum stroke @ 80PSI (pounds) | Size: |
| 940 | original size |
| Material | |
| 2-layer standard line | |
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 6 pcs X M 8 x 1.25
Screw Center Distance of Top Cover Plate : 118 mm
Bottom Cover Plate Screw (Nut) Tooth : 6 pcs X M 8 x 1.25
Screw Center Distance of Bottom Cover Plate : 138 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
Screw Center Distance Between Gas Hole and Nut : middle
Cover Plate
Top Cover Plate Diameter: 158 mm
Bottom Cover Plate Diameter: 158 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 210 mm
Rubber Bellows Natural Diameter : 180 mm
The Working Stroke : MIN 45 mm to MAX 145mm
Maximum Height : 145mm
Minimum Height :45 mm
Stroke Height : 100mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop
How to improve the abrasion resistance of air spring AIRSUSTECH
1H5083 refer to Air Spring Model 110 Standard Code 88820 rubber
airbag?
Nowadays, the quality of China AIRSUSTECH 1H5083 refer to Air
Spring Model 110 Standard Code 88820 rubber airbag air spring is
getting better and better, with a service life of several years.
China AIRSUSTECH 1H5083 refer to Air Spring Model 110 Standard Code
88820 rubber airbag The gap between air springs and imported air
springs is getting smaller and smaller.
Proper use and maintenance are ways to extend the life of air
spring AIRSUSTECH 1H5083 refer to Air Spring Model 110 Standard
Code 88820 rubber airbag. Maintenance can extend the life of air
springs. This must be based on the excellent quality of air spring
rubber airbags. What are the methods in the production process? The
service life of the air spring can be improved. What is the
abrasion resistance of the air spring rubber bladder? In addition
to the most basic work in the vulcanization process, the following
points need to be paid attention to: 1. The smaller the particle
size of ordinary fillers, the lower the dispersibility, surface
activity and structural structure, and the worse the wear
resistance. The best dosage is 90-100 parts of BR, 60-70 parts of
oil-extended SBR, 55 parts of 50-SBR and IR, and 45-50 parts of NR.
