    WBE100-E1 Weforma Industrial Air Springs Single Convoluted For Small Automated Assembly Line Equipment

    Ask Lasest Price
    Brand Name : Airsustech
    Model Number : 1B4060
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    WBE100-E1 Weforma Industrial Air Springs Single Convoluted For Small Automated Assembly Line Equipment

    WBE100-E1 Weforma Industrial Supply Single Convoluted Air Spring For Small Automated Assembly Line Equipment


    WBE100-E1 OEM Original Equipment Manufacturer:


    Part NumberPart Number:


    WeformaPart Number:WBE100-E1

    WeformaPart Number:WBE 100-E1

    WeformaPart Number:WBE100 E1


    Airsustech Part Number:1B4060

    PhoenixPart Number:SP 1B04

    PhoenixPart Number:SP1B04

    PhoenixPart Number:SP 1B 04


    Contitech Part Number: FS 40-6

    Contitech Part Number: FS40-6

    Contitech Part Number: FS406

    Continental Part Number:FS 40-6

    Continental Part Number:FS40-6

    Continental Part Number:FS406


    Contitech Part Number: FS 40-6 CI G1/4

    Contitech Part Number: FS40-6 CI G1/4

    Contitech Part Number: FS406 CI G1/4

    Continental Part Number:FS 40-6 CI G1/4

    Continental Part Number:FS40-6 CI G1/4

    Continental Part Number:FS406 CI G1/4


    WBE100-E1 Technical Parameters
    Top Cover Plate Diameter90mm
    Bottom Cover Plate Diameter90mm
    Screw Center Distance20mm
    Distance Gas Hole Between NutTogether
    Gas HoleG1/8
    Screw (Nut) Tooth2pcsXM8X1.25
    Rubber Bellows MAX Diameter145mm
    The Stroke50-110mm



    WBE100-E1 Vibration isolation - dynamic characteristic values
    Design height H: recommended 90mm, minimum 70mm
    Pressure p [bar]345678Vol. V[l]
    Force (Load) [KN]1.72.32.83.43.84.40.5
    Spring rate [N/cm]7609901220148016101820
    Natural frequency [Hz]3.53.33.33.33.23.2

    WBE100-E1 Pneumatic application - static characteristic values
    Force F [kN]
    Pressure p [bar]345678Vol. V[l]
    Height H [mm] 602.63.54.35.26.16.90.3
    702.33.23.94.75.46.20.4
    802.12.83.54.24.95.30.5
    901.72.22.83.43.94.40.5
    1001.21.622.533.40.6


    Air springs have successfully solved actuating problems, at a reduced cost,in many applications including:

    1.Commercial washing machine
    2.Hopper tank
    3.Packaging machine vibration
    4.The compressor
    5.The console
    6.Vibrating screen
    7.Blower and motor
    8.Control panel
    9.Shock isolation
    10.Shielding and flexible coupling
    11.Vacuum pump
    12.Expansion chuck
    13.Supporting roller CAM
    14.The sun tracker

    Other Information:


    product name:Application:
    air spring/airbag/air suspensionAutomation suspension system
    Model:position:
    Mid-Liner,rear/front
    Original equipment number:Truck Model:
    1B5001, FS 40-6, 1B5-500MACHINE
    Automotive Spare Parts:operation:
    Scania, Mac-k truck, International Heavy Dutygas-filled
    Spring material:Style:
    Rubbersingle convoluted
    Spring type:Dimension:
    Bellows typeOEM/original standard size
    Size:quality:
    original size100% tested
    Warranty:Shipping:
    1 yearsea ​​transportation,TNT,DHL,UPS,FedEx,EMS,etc.
    Product origin:payment:
    GuangDONG, ChinaT/T,Trade Assurance,Paypal,Western Union
    Name:Certification:
    Firestone/Continental/ Goodyear/ AIRSUSTECHISO/TS 16949:2009, ISO9001:2008, ISO14001:2004

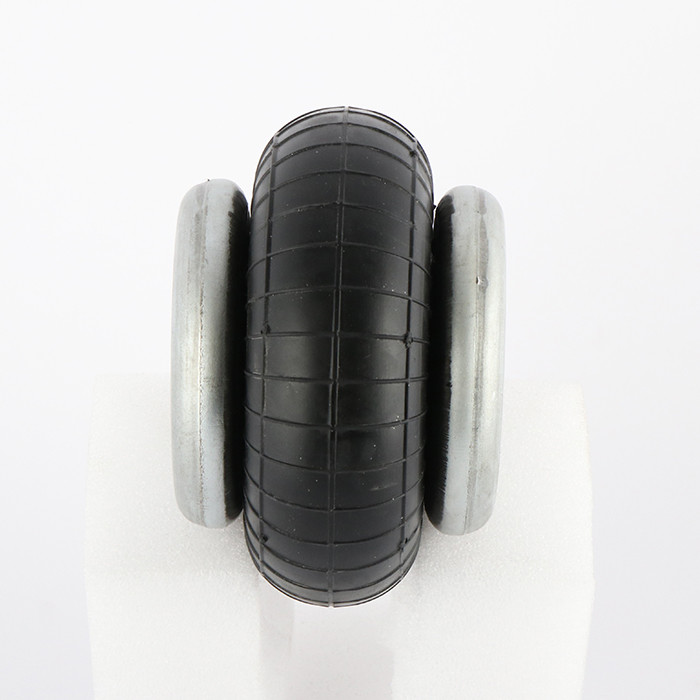

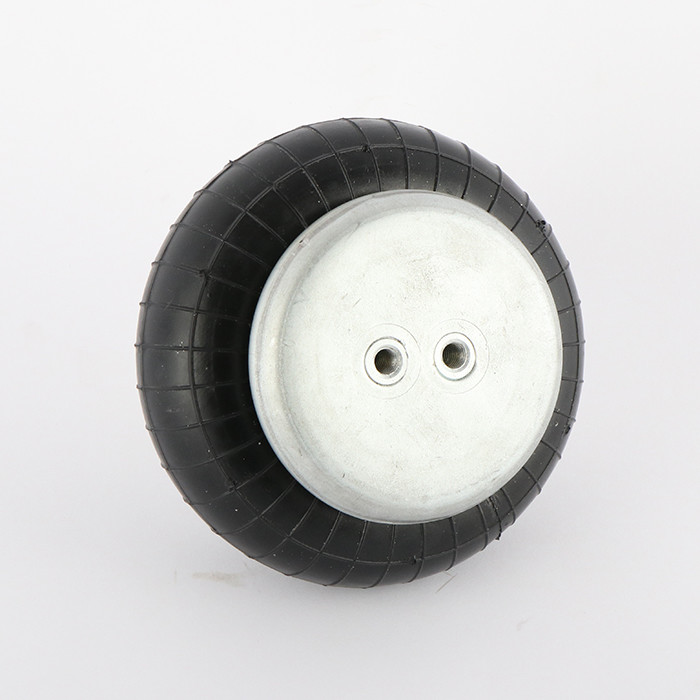

    Details pictures of air spring 1B4060:


    WBE100-E1 Weforma Industrial Air Springs Single Convoluted For Small Automated Assembly Line EquipmentWBE100-E1 Weforma Industrial Air Springs Single Convoluted For Small Automated Assembly Line EquipmentWBE100-E1 Weforma Industrial Air Springs Single Convoluted For Small Automated Assembly Line Equipment


    AIRSUSTECH air spring production line:


    Fs40-6 Contitech Machine Accessories Small Size Industrial Air Spring Phoenix Sp1b04 Weforma Wbe100-E1 Load 500kg
