W01-M58-6129 Firestone Air Bags Cross others OEM
TYPE SERIE / MODEL: W01-M58-6129
Firestone Parts NO.: W01-M58-6129;
Firestone Parts NO.: W01 M58 6129;
Firestone Parts NO.: W01M586129
Firestone Parts NO.: W01-358-7437;
Firestone Parts NO.: W01 358 7437;
Firestone Parts NO.: W013587437
TYPE SERIE / MODEL: WO1-M58-6129
Firestone Parts NO.: WO1-M58-6129;
Firestone Parts NO.: WO1 M58 6129;
Firestone Parts NO.: WO1M586129
Firestone Parts NO.: WO1-358-7437;
Firestone Parts NO.: WO1 358 7437;
Firestone Parts NO.: WO13587437

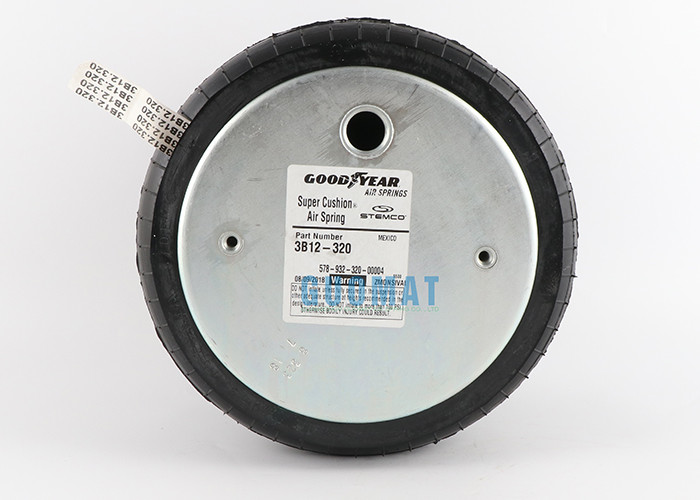

Goodyear Parts NO.: 3B12-320;
Goodyear Parts NO.:3B12 320;
Goodyear Parts NO.:3B12320
Goodyear Flexmember Parts NO.: 578-93-3-100 ;
Goodyear Flexmember Parts NO.:578 93 3 100;
Goodyear Flexmember Parts NO.:578933100
Flexmember 578 93 2 320;
Flexmember 578-93-2-320;
Flexmember 578932320
Contitech Parts NO.: FD 330-22 334;
Contitech Parts NO.:FD 330 22 334;
Contitech Parts NO.:FD33022334
Goodyear: 2B12-320
Ridewell: 1003587437C
Neway: 90557015
W01-M58-6129 Firestone Air Bags Technical parameters
| Maximum diameter @ 7 Bar (mm) | Force at maximum stroke, in kN @ 5 Bar | Design height (mm) |
| 333 | 17.6 | 343 |
| Maximum height (mm) | material | Load (at design height): 3 bar (kN) |
| 114 | 2-layer standard line | 11.3 |
| Maximum stroke (mm) | End cap details | Load (at design height): 5 bar (kN) |
| 267 | Bead plate type | 20 |
| Minimum usable height (mm) | 3 | Load (at design height): 7 bar (kN) |
| 381 | dim. A (Blind hole nut center) (mm) | 29.1 |
| Force (kN) @ 5 Bar at 25 mm stroke | 157 | Natural frequency (@5 Bar)(fn(Hz) |
| 32.2 | dim. B (mm) | 1.3 |
| The force when the stroke is 50% of the maximum stroke, in kN @ 5
Bar | 73 | Isolation percentage at forced frequency 7 Hz |
| 26.2 | | 95.9 |
| Isolation percentage at forced frequency 25 Hz | Isolation percentage at forced frequency 13 Hz |
| 99.7 | 99 |
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X1/2-13UNC
Screw Center Distance of Top Cover Plate : 157 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 157 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 73 mm
Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 325 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 305 mm
Minimum Height :104 mm
Stroke Height : 201mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
STYLE: 352

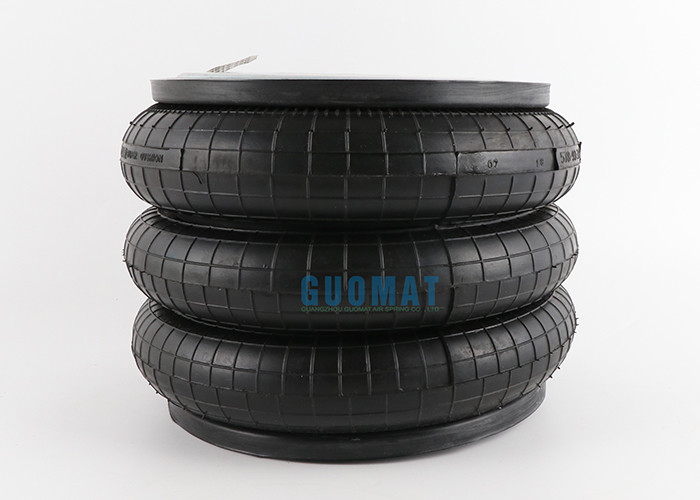

NUMBER OF BALLS: 3-fold
MIN. HEIGHT (MM): 122 mm
MAX. HEIGHT (MM) :483 mm
MAX. WORKING HEIGHT (MM): 400 mm
MAX. LOADING CAPACITY (KN): 46 kN
INSTALLATION SPACE (MM): 343 mm
MAX. DIAMETER (MM): 333 mm
WEIGHT (KG): 8.84 kg
AIR CONNECTION:1/4 "
W01-M58-6129 Firestone Air Bags air spring features
W01-M58-6129 Firestone Air Bags air springs utilize the compressive elasticity of air, and are
essentially different from metal springs such as leaf springs. It
has excellent characteristics as a suspension spring. For example,
the combined use with a control device keeps the height of the
vehicle always constant or arbitrarily changed. It can also improve
the vehicle's inclination by individually controlling the left and
right air springs.
Modern road transportation places high demands on the comfort and
efficiency of automobiles. W01-M58-6129 Firestone Air Bags company's mission is to "make our roads safer", knowing user
satisfaction, easy and comfortable user experience, is the
foundation of the product, and fully consider commercial vehicles
in product design The demanding requirements of trucks and
customers, such as its super-buffered air springs, use the
materials and design of the load to provide industry-leading
vibration damping, light weight and long service life. In addition,
the unparalleled comfort performance design makes the super-buffer
air spring reduce driving fatigue, reduce parts wear and tear,
shorten the failure time, and thus improve safety performance.
