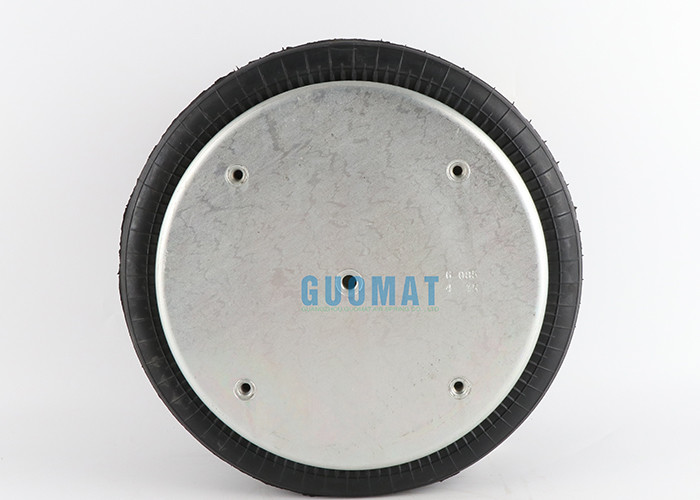

    W01-M58-6377 Firestone Industrial Air Springs Bellows Number 21-2 Double Convolutions

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 2B14-468 / W01-M58-6377
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    W01-M58-6377 Firestone Industrial Air Springs Bellows Number 21-2 Double Convolutions

    W01-M58-6377 Firestone Industrial Air Springs Bellows Number 21-2 Double Convolutions


    W01-M58-6377 Firestone Cross OEM


    Firestone Parts NO.:WO1-358-6377

    Firestone Parts NO.::WO1 358 6377

    Firestone Parts NO.::WO13586377

    Firestone Parts NO.:WO1-358-6378

    Firestone Parts NO.::WO1 358 6378

    Firestone Parts NO.::WO13586378

    Firestone Parts NO.:W01-358-6377

    Firestone Parts NO.::W01 358 6377

    Firestone Parts NO.::W013586377

    Firestone Parts NO.:W01-358-6378

    Firestone Parts NO.::W01 358 6378

    Firestone Parts NO.::W013586378


    Firestone Parts NO.:WO1-358-6379


    Firestone Parts NO.::WO1 358 6379


    Firestone Parts NO.::WO13586379


    Firestone Parts NO.:WO1-358-6378


    Firestone Parts NO.::WO1 358 6378


    Firestone Parts NO.::WO13586378


    Firestone Parts NO.:W01-358-6379

    Firestone Parts NO.::W01 358 6379

    Firestone Parts NO.::W013586379

    Firestone Parts NO.:W01-358-6378

    Firestone Parts NO.::W01 358 6378

    Firestone Parts NO.::W013586378

    Firestone 22-1,


    Goodyear Parts NO.:2B14-468 ;
    Goodyear Parts NO.:2B14 468;
    Goodyear Parts NO.:2B14468

    Goodyear Bellow NO.578923353
    Goodyear Flexible members No.: 578-92-3-353

    ContiTech Parts NO:FD 530-22 CI 3/4 NPT

    ContiTech Parts NO::FD530-22 CI 3/4 NPT

    ContiTech Parts NO:FD 530-22

    ContiTech Parts NO::FD530-22


    W01-M58-6377 Firestone Technical parameters


    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

    Screw Center Distance of Top Cover Plate : 159 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

    Screw Center Distance of Bottom Cover Plate :159 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 3/4-18NPTF

    Screw Center Distance Between Gas Hole and Nut : 79.5 mm


    Cover Plate

    Top Cover Plate Diameter: 287mm

    Bottom Cover Plate Diameter: 287mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 406 mm

    Rubber Bellows Natural Diameter : 320 mm

    The Working Stroke : MIN 77 mm to MAX 355 mm

    Maximum Height : 355mm

    Minimum Height :77mm

    Stroke Height : 278 mm


    Bumper block / Buffer block

    Without or With Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    Design Height (mm)267
    Load (at Design Height) at: 3 Bar (kN)16.7
    Load (at Design Height) at: 5 Bar (kN)39.2
    Load (at Design Height) at: 7 Bar (kN)41.1
    Natural Frequency (@5 Bar)(fn(Hz)1.6
    % of Isolation at Forced Frequency 7 Hz95.6
    % of Isolation at Forced Frequency 13 Hz98.8
    % of Isolation at Forced Frequency 25 Hz99.7

    The usal kinds of Double Convolution Air Springs


    Style 21-1 Two Ply


    Blind nuts, 1/4 BSP:W01-M58-6377;W01-M58-6377;W01 M58 6377;W01M586377
    Blind nuts, 1/4 BSP, bumper:W01-M58-6379;W01 M58 6379;W01M586379
    Blind nuts, 3/4 BSP:W01-M58-6378;W01 M58- 6378;W01M586378
    Rubber bellows only:W01-358-0140;W01 358 0140;W013580140
    Assembly weight (bead plate version, no bumper):8.3kg.
    Force to collapse to minimum height (@ 0 BAR):156 N.
